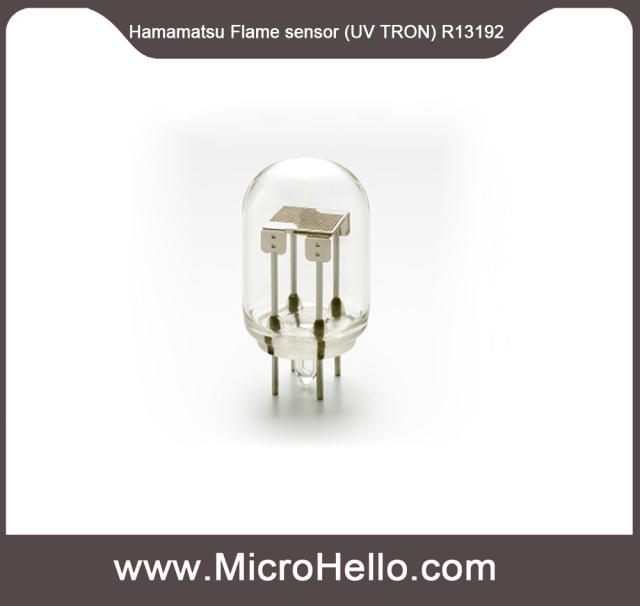

Hamamatsu Flame sensor (UV TRON) R13192

Name: Hamamatsu Flame sensor (UV TRON) R13192
Brand: MicroHello
SKU: Hamamatsu-0010
Price: 415 USD
Availability: InStock

SKU: Hamamatsu-0010

0.0 (0)

0 Sold

$415.00 ~~$820.00~~

Detects fire from long distances (high sensitivity)
Detects only UV light without using any optical filters

Received successfully

Coupon Code

Specifications

Spectral Response (Short)	185 nm
Spectral Response (Long)	260 nm
Electrode Material	Ni
Weight	5.2 g
[Maximum Rating] Supply Voltage (DC)	420 V
[Maximum Rating] Average Discharge Current	3 mA
[Maximum Rating] Peak Current	50 mA
[Maximum Rating] Operation Ambient Temperature	-40 to +125 ℃
Discharge Starting Voltage (DC)	260 V
Discharge Sustaining Voltage (DC)	185 V
Sensitivitiy Typ.	15000 min^-1
Background Max.	5 min^-1
Estimated Life	25000 h
[Recommended Operating Parameters] Supply Voltage (DC)	325±25 V
[Recommended Operating Parameters] Average Discharge Current	0.3 mA
[Recommended Operating Parameters] Quenching Time Min.	2 ms
Suitable Socket (Sold Separately)	E678-9C
