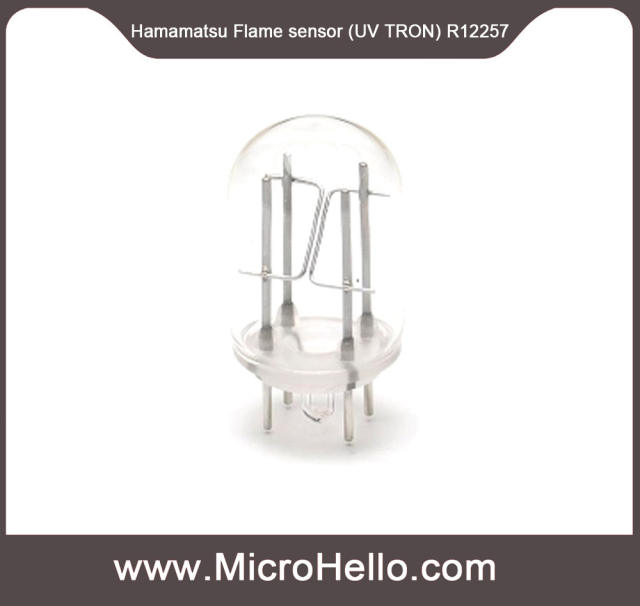

Hamamatsu Flame sensor (UV TRON) R12257 UVTRON ultraviolet ON/OFF detector

Name: Hamamatsu Flame sensor (UV TRON) R12257 UVTRON ultraviolet ON/OFF detector
Brand: MicroHello
SKU: Hamamatsu-008
Price: 315 USD
Availability: InStock

SKU: Hamamatsu-008

0.0 (0)

0 Sold

$315.00 ~~$389.00~~

The UVTRON ultraviolet ON/OFF detector that makes use of the photoelectric effect of metal and the gas multiplication effect. It has a narrow spectral sensitivity of 185 nm to 300 nm, being completely insensitive to visible light. Unlike semiconductor det

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

The UVTRON ultraviolet ON/OFF detector that makes use of the photoelectric effect of metal and the gas multiplication effect. It has a narrow spectral sensitivity of 185 nm to 300 nm, being completely insensitive to visible light. Unlike semiconductor detectors, it dose not require optical visible-cut filters, thus making it easy to use.

Specifications

Spectral Response (Short)	185 nm
Spectral Response (Long)	300 nm
Electrode Material	Mo
Weight	5 g
[Maximum Rating] Supply Voltage (DC)	425 V
[Maximum Rating] Average Discharge Current	10 mA
[Maximum Rating] Peak Current	200 mA
[Maximum Rating] Operation Ambient Temperature	-40 to +125 ℃
Discharge Starting Voltage (DC)	240 V
Discharge Sustaining Voltage (DC)	170 V
Sensitivitiy Typ.	1200 min^-1
Background Max.	10 min^-1
Estimated Life	10000 h
[Recommended Operating Parameters] Supply Voltage (DC)	310±25 V
[Recommended Operating Parameters] Average Discharge Current	2 mA
[Recommended Operating Parameters] Quenching Time Min.	1 ms
Suitable Socket (Sold Separately)	E678-9C
