1.Overview

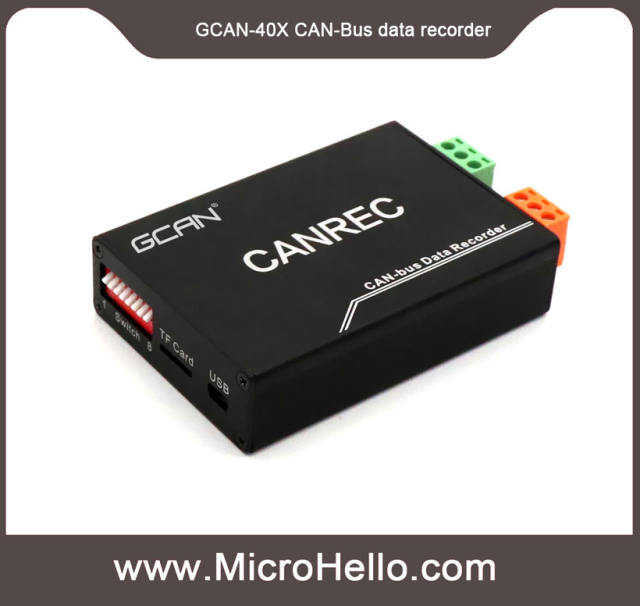

GCAN-401/402/406 CAN-Bus data recorder is specially used for offline record CAN-Bus data.
GCAN-401/402/406 has integrated one/two/six CAN-bus interface . Users can use TF card record bus data real-time.
GCAN-401/402/406 is suitable for historical data playback, error message analysis.
GCAN-406 is designed for automotive road test.
2.Properties at a glance
High speed 32-bit industrial-grade processor;
GCAN-406 support 6-channel CAN interface( 3-channel of which can select Fault-tolerant CAN);
GCAN-406 also can be equipped with GPS and 4G communicate function;
Use an external power supply (DC +9~30V, typical: 24V 50mA);
EMC: contact ±2KV，air ±15KV;
EFT: ±1KV;
SURGE: ±1KV;
CAN-Bus connection via OPEH3 or OPEN4 terminal;
Compliant with CAN specifications 2.0A(11-Bit ID) and 2.0B (29-Bit ID);
CAN-Bus baud rate 10Kbps~1Mbps, set by code switch;
Galvanic isolation on the CAN connection up to 1500 V;
The highest receiving data traffic: 8000 fps/s;
CAN data time stamp resolution 100μs;
Extended operating temperature range from -40 to 85 °C;
Size: (L) 102 mm * (W) 63mm * (H)23mm.
3.Save format specification
Please note: GCAN-401/402/406 CAN recorder maximum support of 32G/128G/128G capacity TF memory card and the file system is FAT32 format, if your TF card is not this format, the memory card must be reformatted into FAT32 format, format the memory card will remove all the data in card, please careful operation.
GCAN-401/402/406 CAN recorder has been integrated with system clock, it can manage data by date that means create a new folder named by the date everyday.
The four storage formats that CAN recorder support are as follows.
