1. features

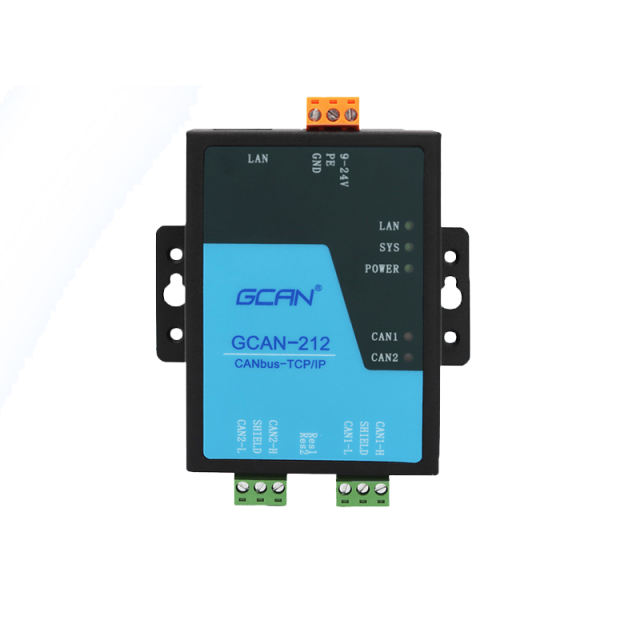

GCAN-212(CANET-II) is a high-performance CAN-bus bus communication interface card that integrates 2 CAN interfaces and 1 Ethernet interface. Using GCAN-212 high-performance CAN interface card, users can easily complete the interconnection of CAN-bus network and Ethernet network, and further expand the scope of CAN-bus network.
GCAN-212 High-performance CAN interface card is a powerful tool for CAN-bus product development and CAN-bus data analysis. PC can be quickly connected to CAN-bus network through Ethernet interface to form CAN-bus network control nodes for data processing and data acquisition in CAN-bus network fields such as fieldbus laboratory, industrial control, intelligent community and automobile electronic network. At the same time, the device has the characteristics of small size, plug and play, and is also the best choice for portable system users.
GCAN-212 has integrated a CAN interface electrical isolation protection module to avoid damage to equipment due to instantaneous overcurrent/overvoltage and enhance the reliability of the system in harsh environments.
2. performance characteristics
(1) High-speed 32-bit industrial-grade processors;
(2) Embedded hardware watchdog timer;
(3) Module built-in FLASH memory, can store parameters;
(4) Use external power supply (DC +9~24V)
(5) Supply current: 50mA(24V DC);
(6) Electrostatic discharge immunity level: contact discharge ± 2KV, air discharge ± 15KV;
(7) Electrical fast transient burst immunity level: ± 1KV;
(8) Surge immunity level: ± 1KV;
(9) Operating temperature range:-40 ℃ ~ +85 ℃;
(10) Working humidity range: 5% ~ 95% RH without condensation;

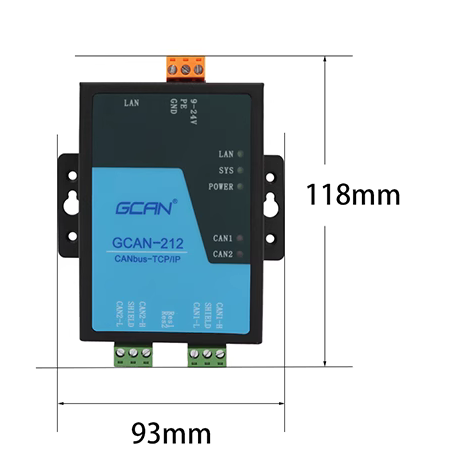

(11) The installation method of screw fixing is specially designed for industry.
(12) Integrated 2-way CAN-bus interface, using Phoenix terminal connection mode;
(13)CAN-bus signals include: CAN_H, CAN_L, CAN_GND;
(14)CAN-bus supports CAN2.0A and CAN2.0B frame formats and conforms to ISO/DIS 11898 specifications;
(15)CAN-bus communication baud rate between 5Kbps ~ 1Mbps arbitrary programmable;
(16)CAN-bus interface adopts electrical isolation, isolation module insulation voltage: DC 1500V;
(17)32 hardware FIFO receiving buffers, maximum sending data flow: 8000 frames/sec; Maximum receiving data flow: 14000 frames/sec;
(18)CAN end to receive the message timestamp accuracy of up to 1us.
(19) Use standard Ethernet interface, RJ45, support 10/100M adaptive;
(20) support heartbeat and timeout disconnect function;
(21) The working port, target IP and target port can be set;
(22) Automatic recovery of connection resources after network disconnection and reliable establishment of TCP connections;
(23) Compatible with SOCKET working methods (TCP Server, TCP Client, UDP, etc.), and the upper computer communication software is written to comply with standard SOCKET rules.
3. Typical Applications
(1)CAN-bus Network Diagnosis and Test
(2) Industrial Ethernet connection to CAN network
(3) Power communication network
(4) Industrial control equipment
(5) High-speed, large data communication
1. TCP Server mode
In this mode, the GCAN-212 will not initialize the connection with other device. It is waiting for the connection from TCP Client, after establishing the connection, they can communicate in two ways.
2. TCP Client mode
In this mode, the GCAN-212 will initialize the connection with TCP Server configured before. If not success, it will continue to try connecting TCP Server based on the default set. After establishing TCP connection with TCP server, they can communicate in two ways.
3. UDP mode
In this mode, the GCAN-212 need not to establish connection with device. UDP protocol is used for data communication.
