Special note:
The new version has actually been on sale for several months, but I haven't had the time to provide a detailed explanation. Additionally, I invited my good friend JEFF, who is also a senior audio expert, to assist in conducting a very precise sound calibration. The new version has addressed the unreasonable aspects of the original wiring and materials used. After finalizing the design, both the test metrics and auditory experience of the new version have been significantly improved. It has undergone AP testing and surpasses the sound quality of the original model. Audiophiles can purchase it with confidence.

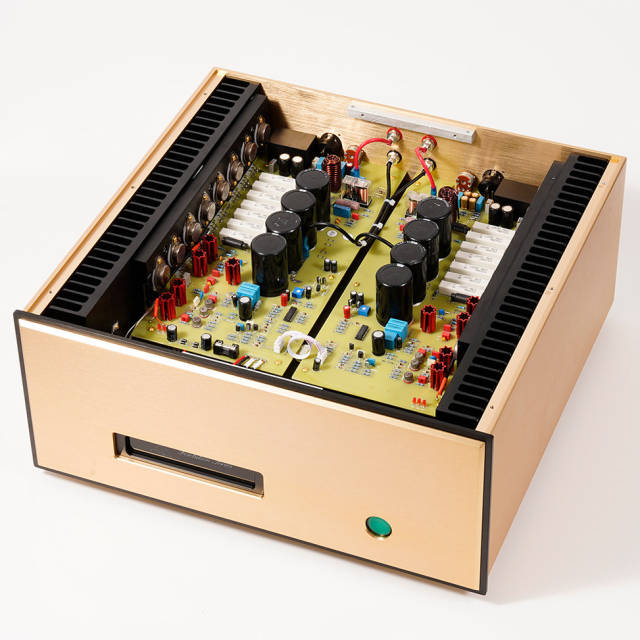

About FM711 Limited Edition

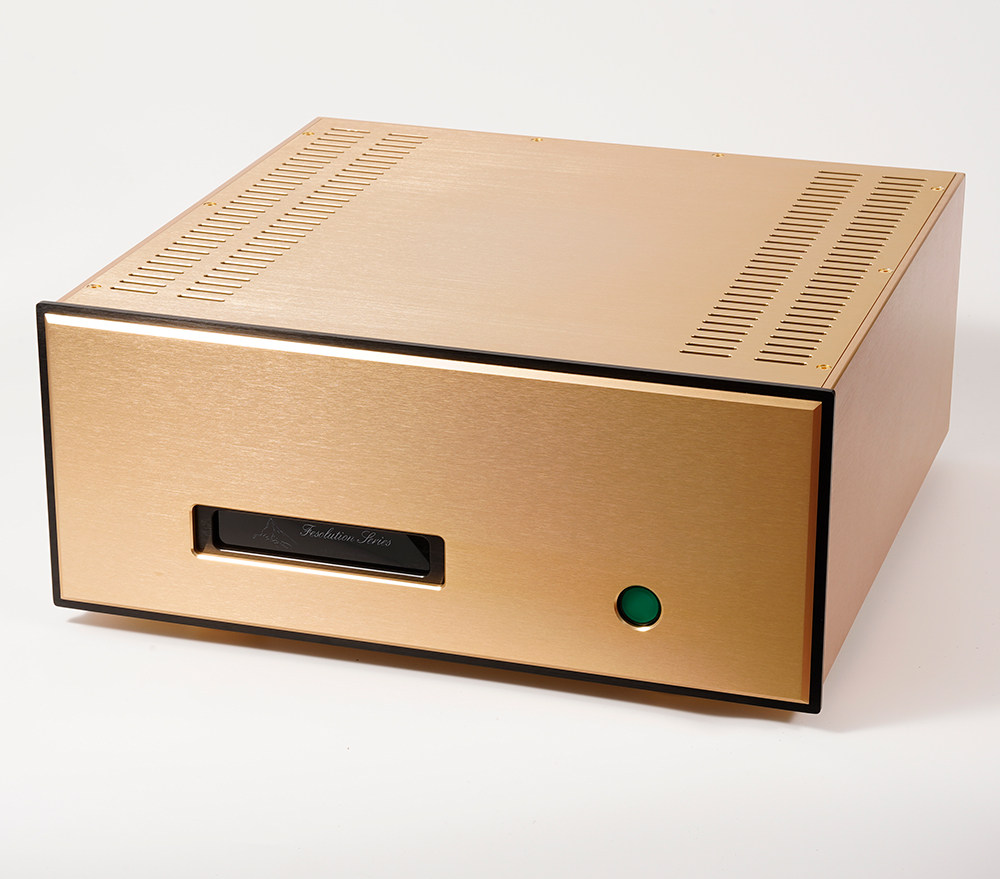

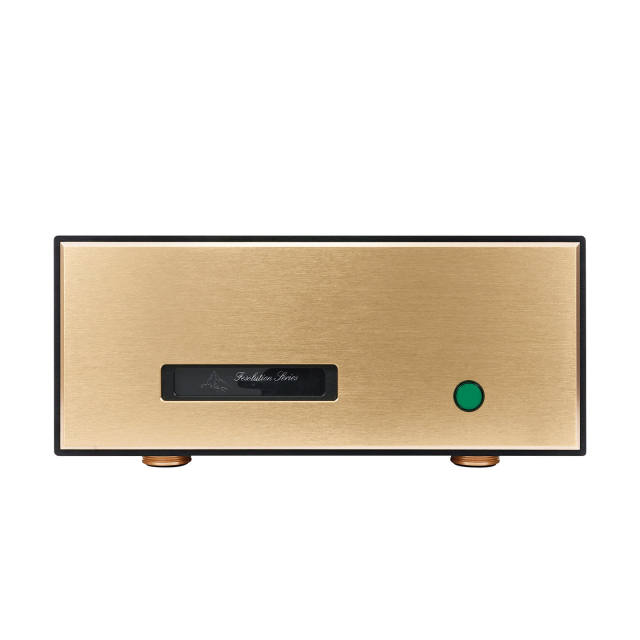

Based on the FM711 Standard Edition power amplifier circuit as a blueprint, we have developed a gold-encased version of the FM11 power amplifier, which we call FM711 Limited Edition, positioned as a high-end power amplifier.
►Sound effect: delicate, gentle, rapidly defeating MJL15024 Golden Sealed Tube King

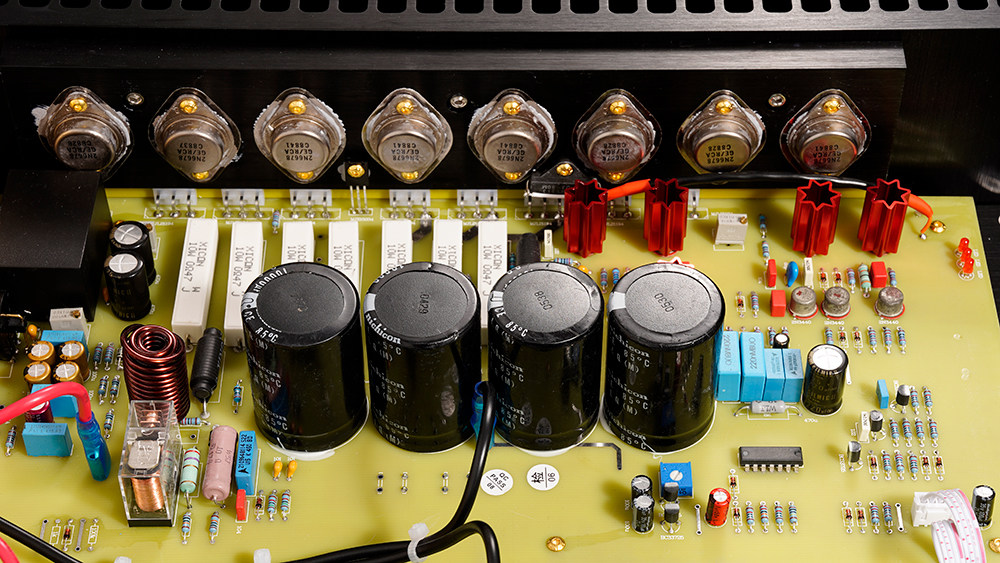

►High-end pure rear-stage power amplifier, utilizing unique original gold-sealed tubes

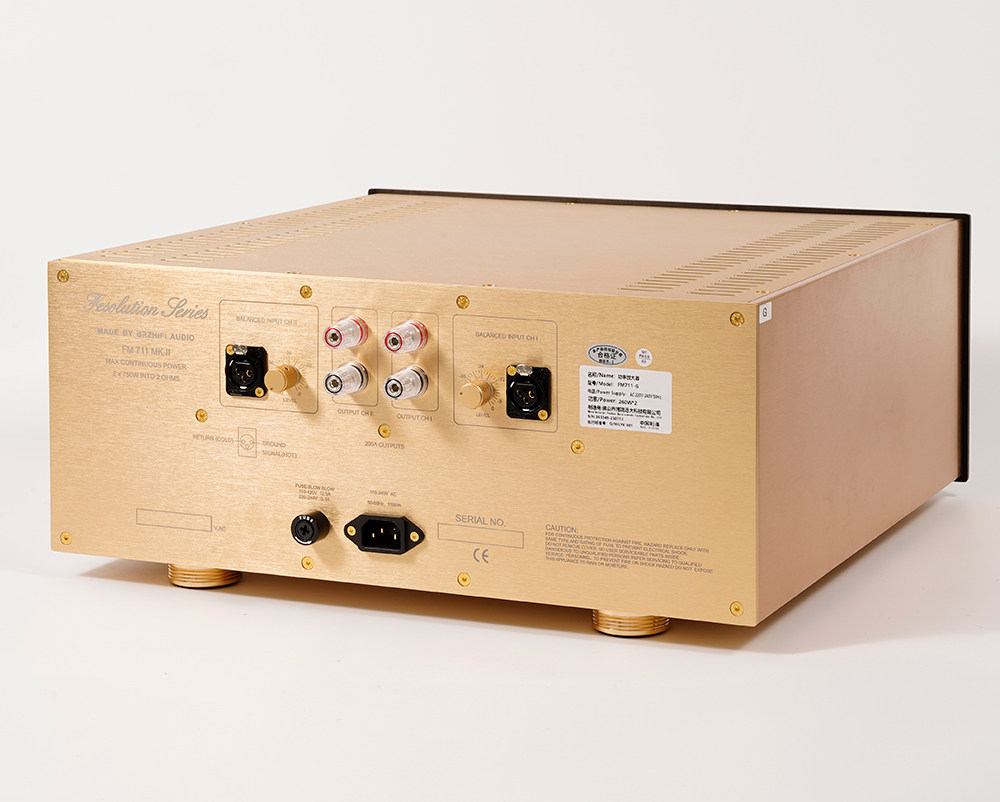

►Supports XLR balanced input and stereo power output
►Adopting a 1000W transformer

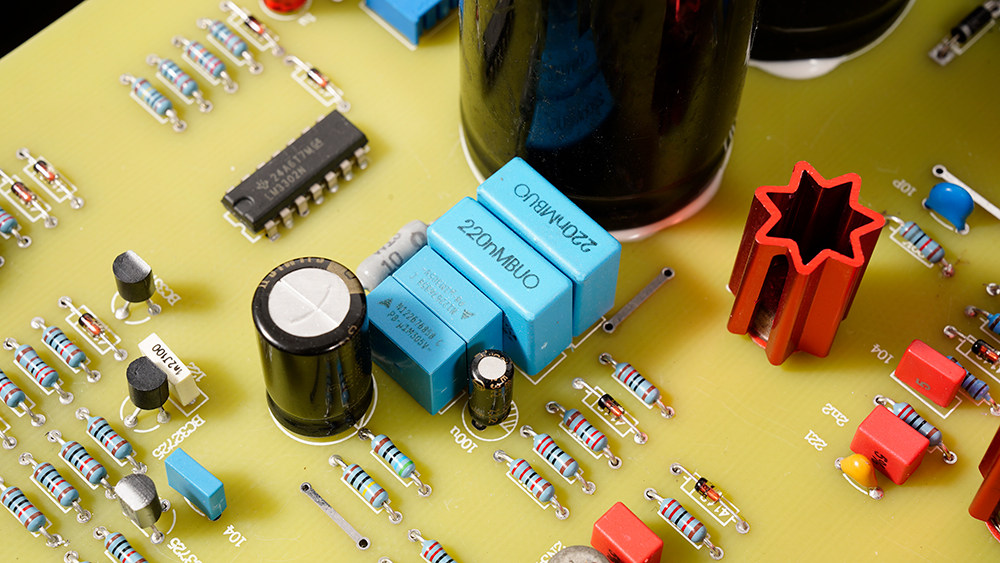

►Imported filter resistors, capacitors, terminal blocks, and other high-temperature materials
►All use precisely matched triodes
►Output power: 260W+260W at 8 ohms, 500W+500W at 4 ohms
Common Mode Rejection Test
The common mode rejection test diagram is as follows:
The measured result shown in the figure below is a weak signal of 1.61mV with strong noise. After amplification, it becomes a very clean and distortion-free output signal of 831mV.
