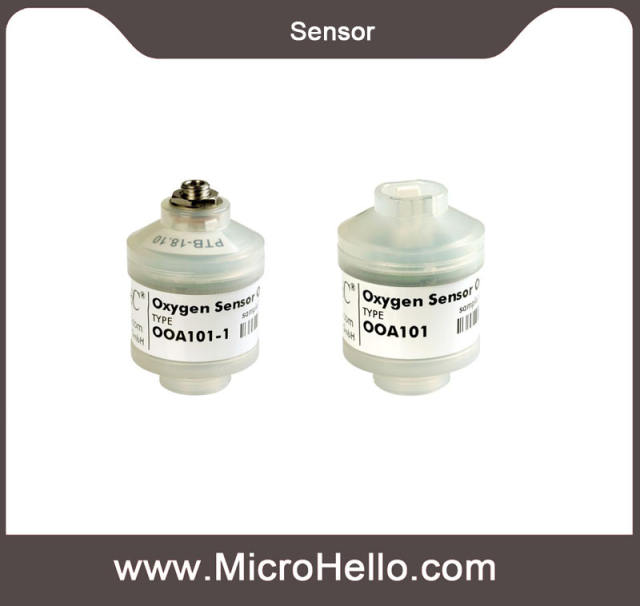

Technical Specifications OOA101
Measurement range 0 % ... 100 % oxygen (at atmospheric pressure)
Nominal sensor lifetime ≥ 500 000 % volume oxygen hours
Output in ambient air 7 mV ... 13 mV
Electrical interface 3 pin (Molex® 22-04-1031)
Accuracy 0 % ... 3.3 % oxygen: ± 0.1 % absolute
3.4 % ... 100 % oxygen: ± 3 % relative
Linearity error < 3 % relative
Response time < 5 s to 90 % of final value; < 40 s fall time from 20.95 % to 0.1 % oxygen (when 100 % nitrogen applied)
Zero offset voltage < 40 μV in 100 % nitrogen
Cross interference < 0.1 % oxygen response to: 15 % CO2 balance N2; 10 % CO balance N2; 3000 ppm NO balance N2; 3000 ppm C3H8 balance N2; 500 ppm H2S balance N2; 500 ppm SO2 balan-
ce N2; 1000 ppm benzene balance N2
Influence of humidity -0.03 % rel. per % RH at 25 °C
Pressure range 0.6 bar ... 2 bar (ppO2 0 ... 1250 mbar O2)
Influence of pressure proportional to change in oxygen partial pressure
Influence of mechanical shock < 1 % relative after a fall from 1 m
Operating temperature 0 °C ... +50 °C
Temperature compensation built-in NTC compensation
Effect of temperature compensation (steady state)
between +25 °C and +40 °C: 3 % relative error between 0 °C and +50 °C: 8 % relative error Operating humidity 0 % ... 99 % RH non-condensing
Long term output drift < 1 % volume oxygen per month
typically < -15 % relative over lifetime
Storage temperature -20 °C ... +50 °C
Recommended storage +5 °C ... +15 °C
Recommended load ≥ 10 kOhm
Warm-up time < 30 minutes, after replacement of sensor
Weight approximately 28 grams
Part number 01-00-0030
----------------------------------------------------------------------------------------------------------------------
Technical Specifications OOA101-1
Measurement range 0 % ... 100 % oxygen (at atmospheric pressure)
Nominal sensor lifetime ≥ 500 000 % volume oxygen hours
Output in ambient air 7 mV ... 13 mV
Electrical interface 3.5 mm mono phone Jack
Accuracy 0 % ... 3.3 % oxygen: ± 0.1 % absolute
3.4 % ... 100 % oxygen: ± 3 % relative
Linearity error < 3 % relative
Response time < 5 s to 90 % of final value; < 40 s fall time from 20.95 % to 0.1 % oxygen (when 100 % nitrogen applied)
Zero offset voltage < 40 μV in 100 % nitrogen
Cross interference < 0.1 % oxygen response to: 15 % CO2 balance N2; 10 % CO balance N2; 3000 ppm NO balance N2; 3000 ppm C3H8 balance N2; 500 ppm H2S balance N2; 500 ppm SO2 balan-
ce N2; 1000 ppm benzene balance N2
Influence of humidity -0.03 % rel. per % RH at 25 °C
Pressure range 0.6 bar ... 2 bar (ppO2 0 ... 1250 mbar O2)
Influence of pressure proportional to change in oxygen partial pressure
Influence of mechanical shock < 1 % relative after a fall from 1 m
Operating temperature 0 °C ... +50 °C
Temperature compensation built-in NTC compensation
Effect of temperature compensation (steady state)
between +25 °C and +40 °C: 3 % relative error between 0 °C and +50 °C: 8 % relative error Operating humidity 0 % ... 99 % RH non-condensing
Long term output drift < 1 % volume oxygen per month
typically < -15 % relative over lifetime
Storage temperature -20 °C ... +50 °C
Recommended storage +5 °C ... +15 °C
Recommended load ≥ 10 kOhm
Warm-up time < 30 minutes, after replacement of sensor
Weight approximately 28 grams
Part number 01-00-0031
----------------------------------------------------------------------------------------------------------------------
