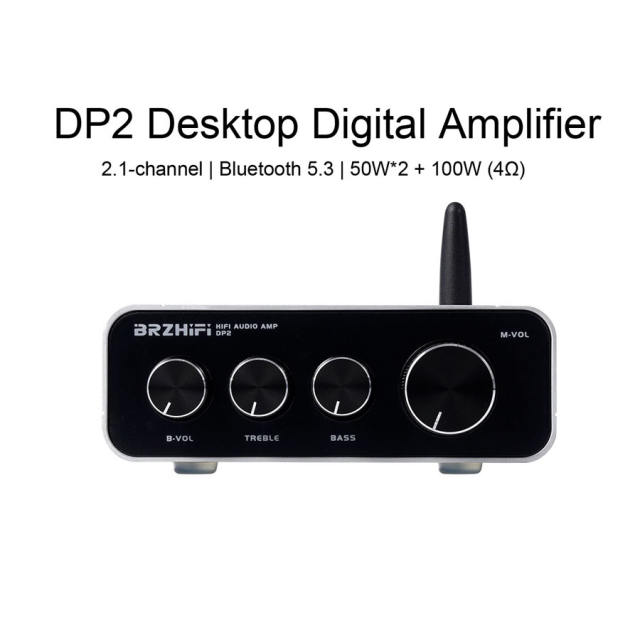

A Miracle of Sound Field within a Small Space: The Birth of the DP2 Amplifier

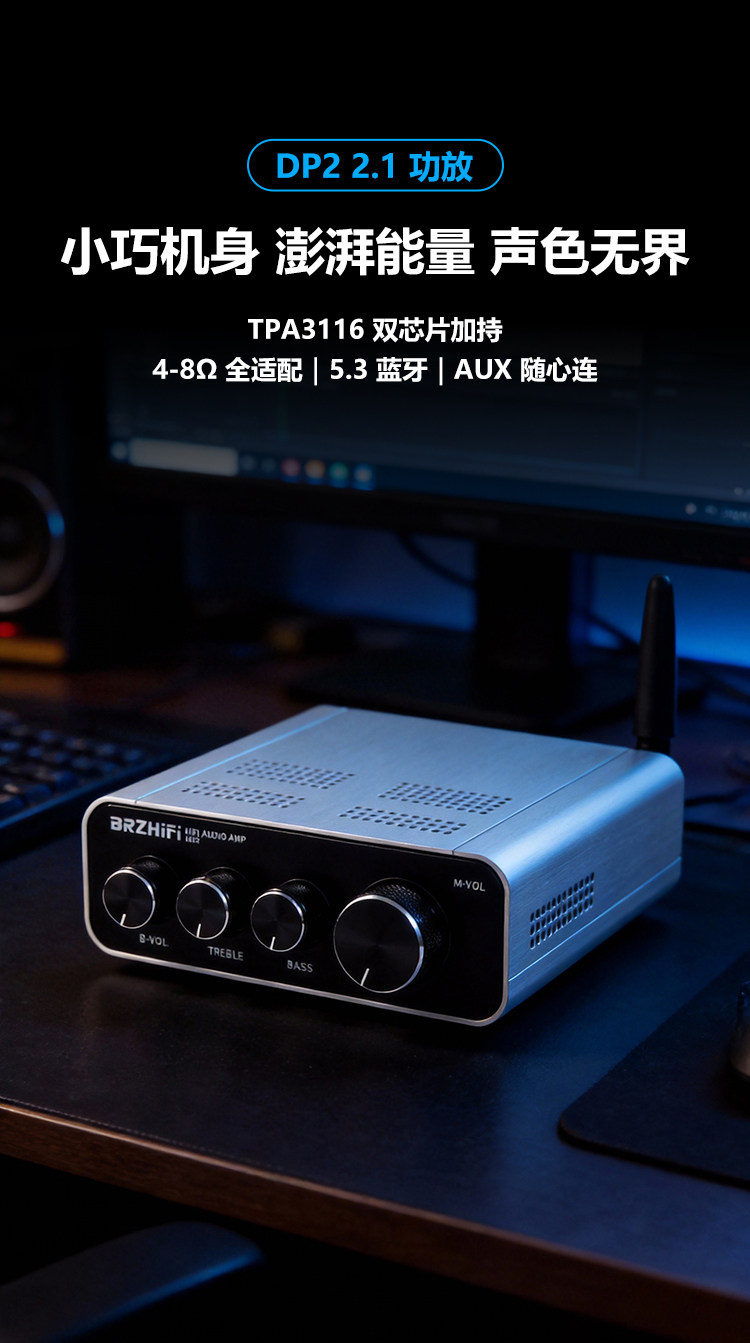

BRZHiFi engineers have always firmly believed that high-quality sound should not be constrained by size. After hundreds of adjustments, the DP2 amplifier, equipped with dual TPA3116 chips, was born. Within its compact body lies the powerful drive of 50W+50W stereo sound and a 100W subwoofer.

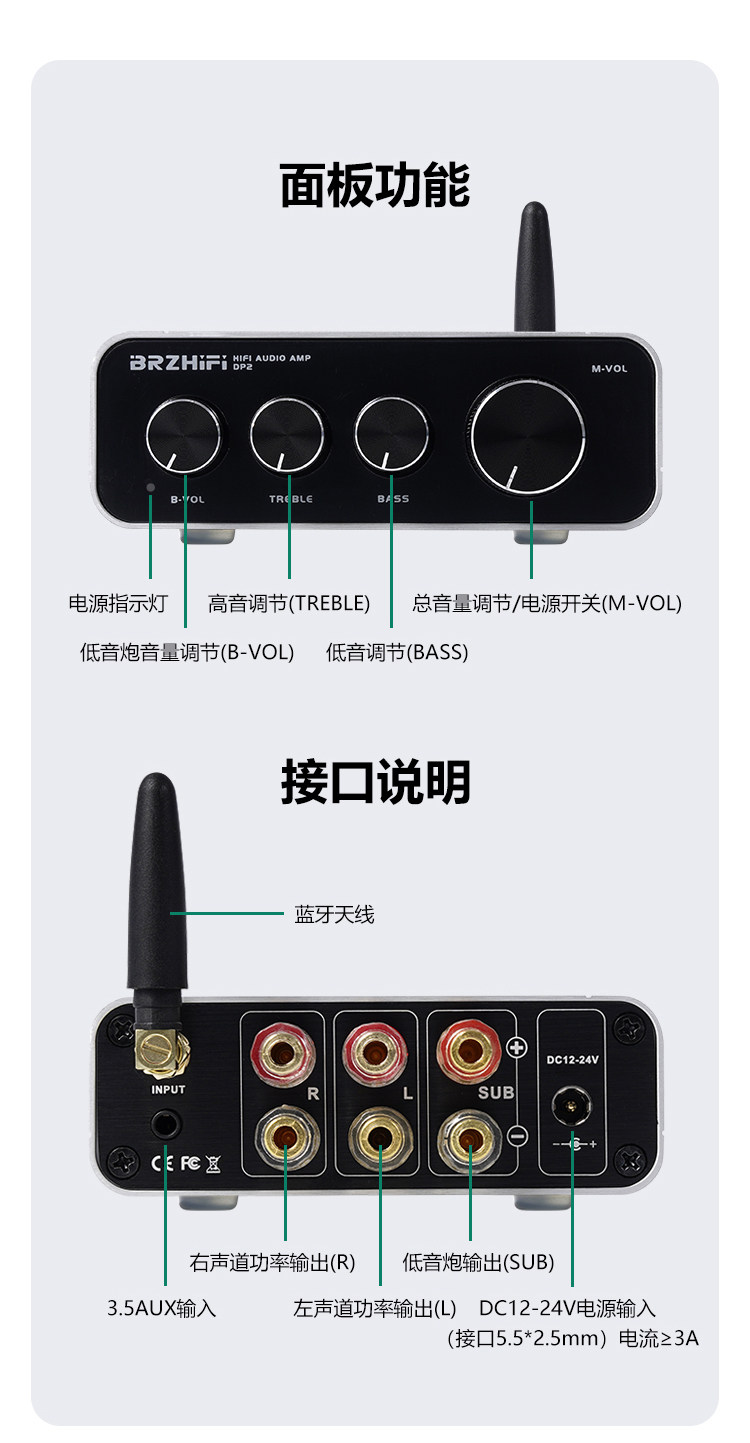

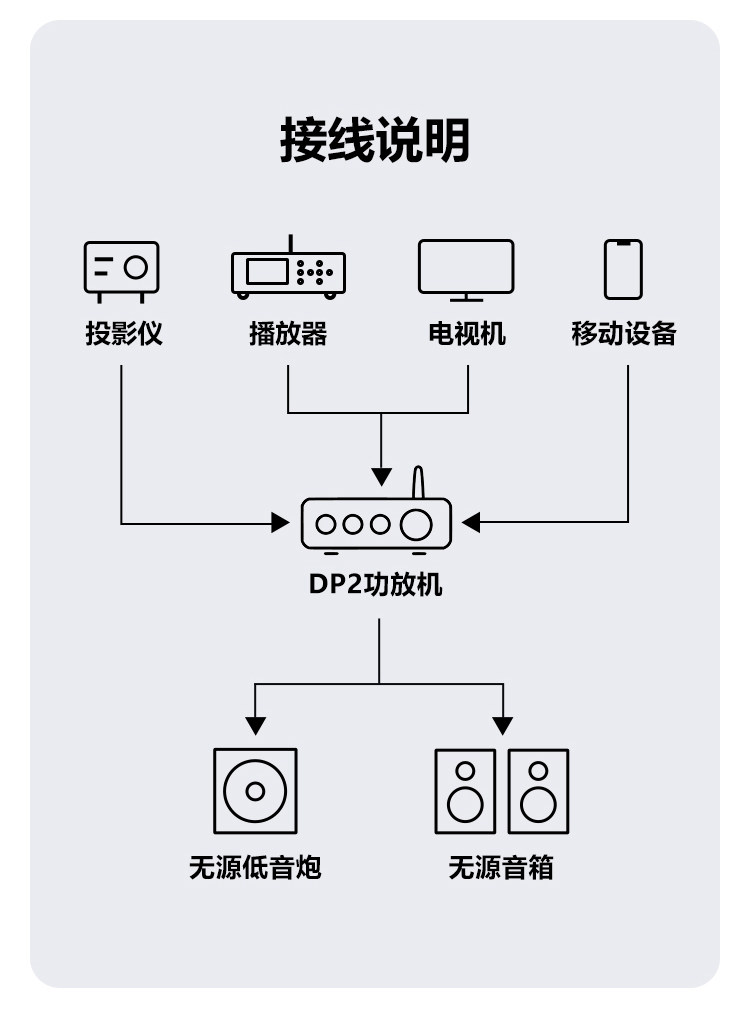

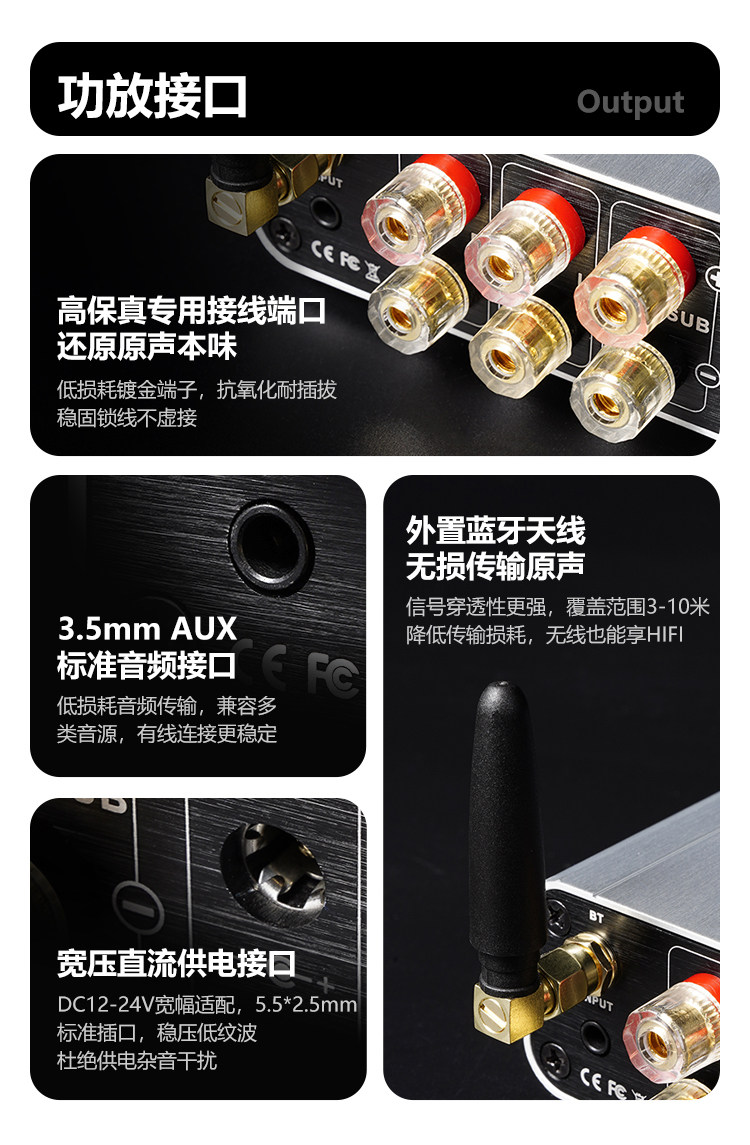

From the stable transmission of wired AUX to the wireless freedom of Bluetooth 5.3, it breaks through scene boundaries. With a simple twist of the knob and the illumination of the power light, whether it's pop music from your phone or classic records from a CD player, everything can be precisely reproduced. Its lightweight design of 420g, coupled with 4-8 ohm wide load compatibility, breathes new life into passive speakers.

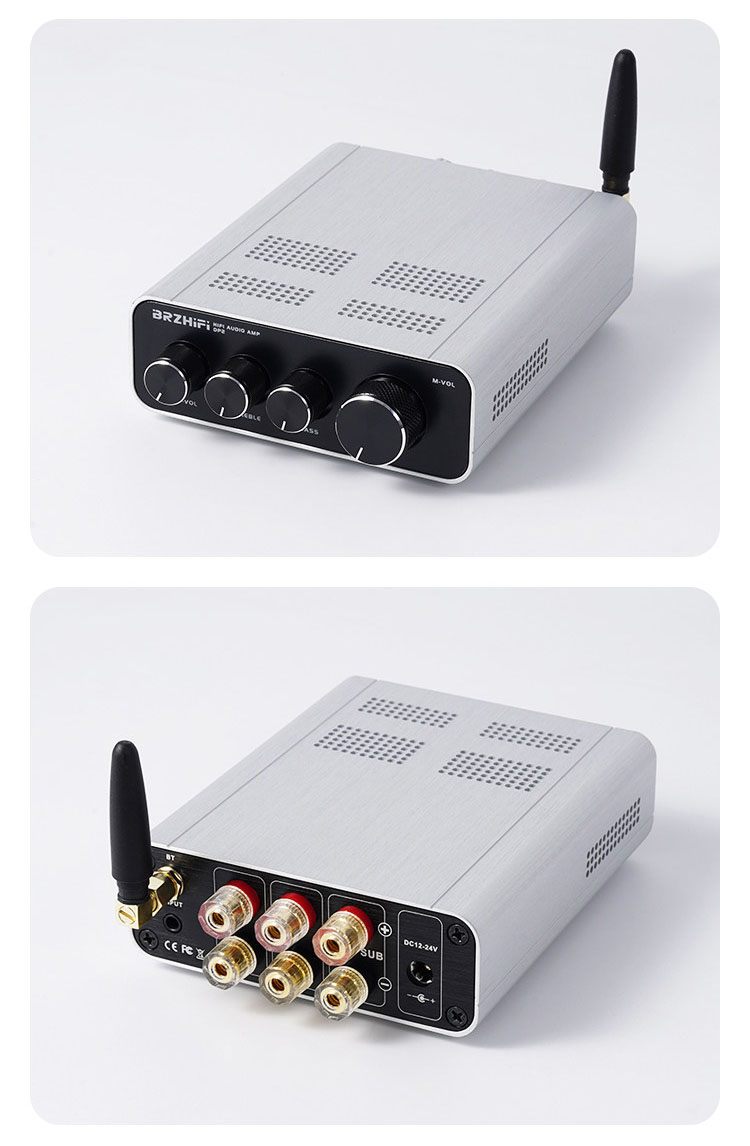

The DP2 embodies the pursuit of high fidelity with its streamlined design, utilizing a 12-24V wide voltage power supply to adapt to various scenarios, allowing every music lover to enjoy an immersive sound field within a small space.
Parameters
Model:DP2

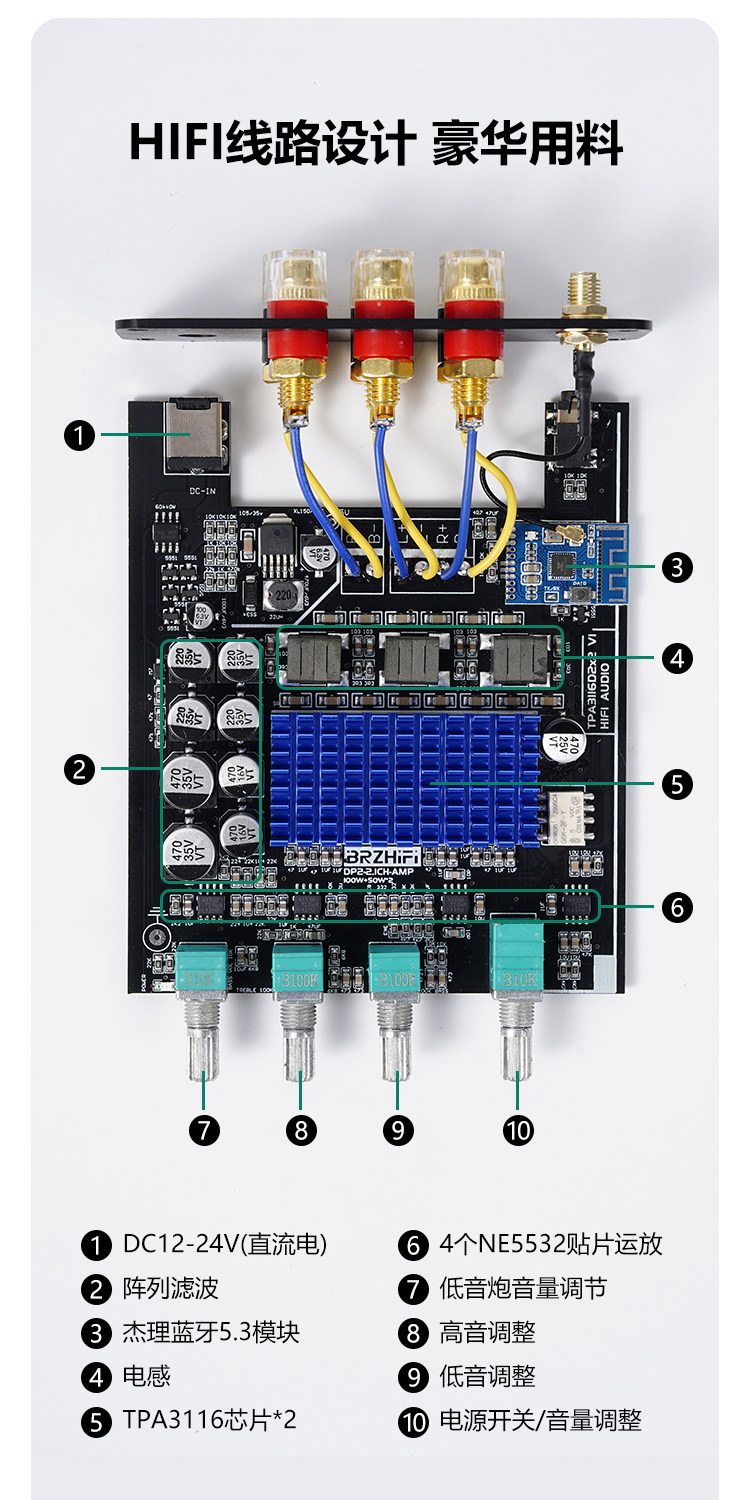

Power Amplifier Chip:TPA3116*2

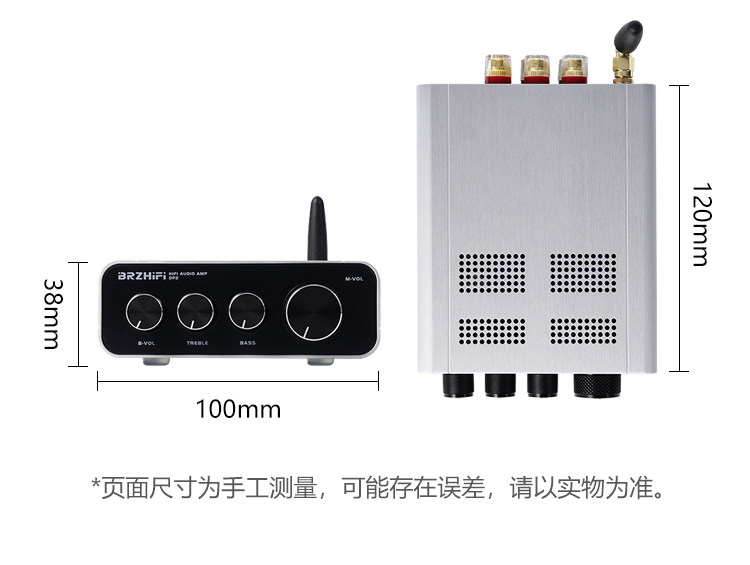

Size:Width: 100mm, Depth: 120mm, Height: 38mm
Output power:Stereo: 50W*2 (4Ω), Subwoofer: 100W (4Ω)
Distortion:THD+N=0.1% @1KHz
Weight:420g
Input signal:AUX/BT (Bluetooth)
Load Range:4-8Ω

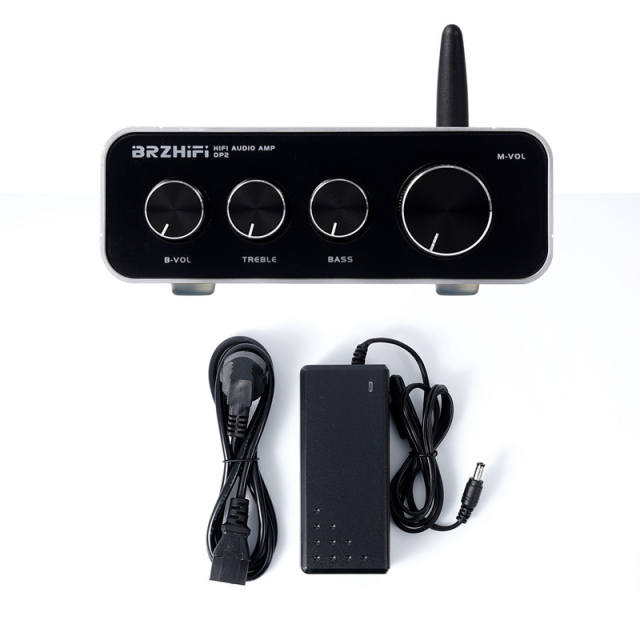

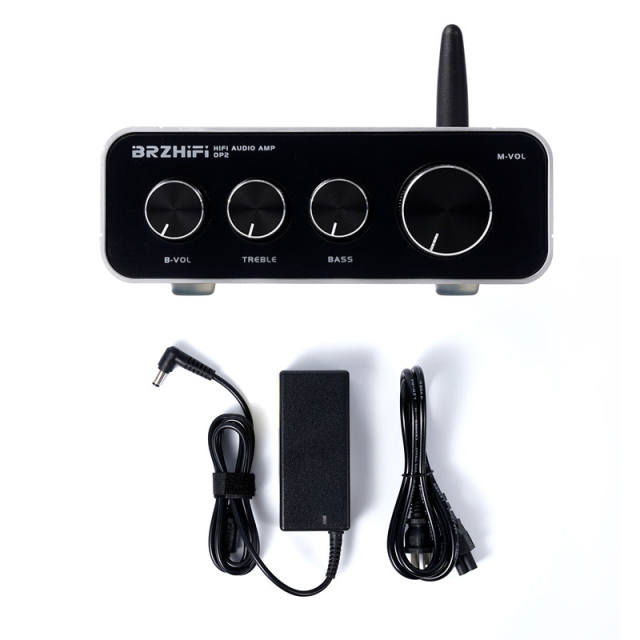

Power supply:DC12-24V (Connector: 5.5*2.5mm), Current ≥3A

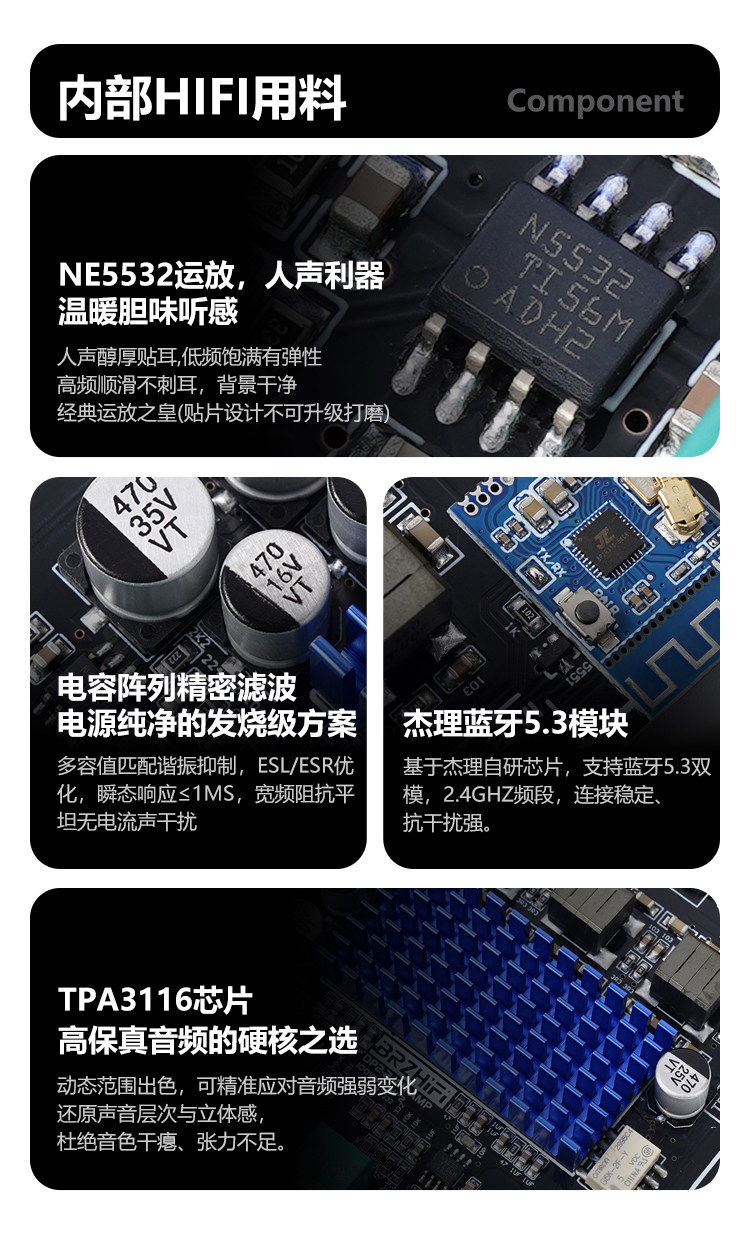

Operational amplifier:N5532*4 SMD Operational Amplifier (Dual Operational Amplifier)
Bluetooth version:Bluetooth 5.3
Bluetooth Protocol:SBC
