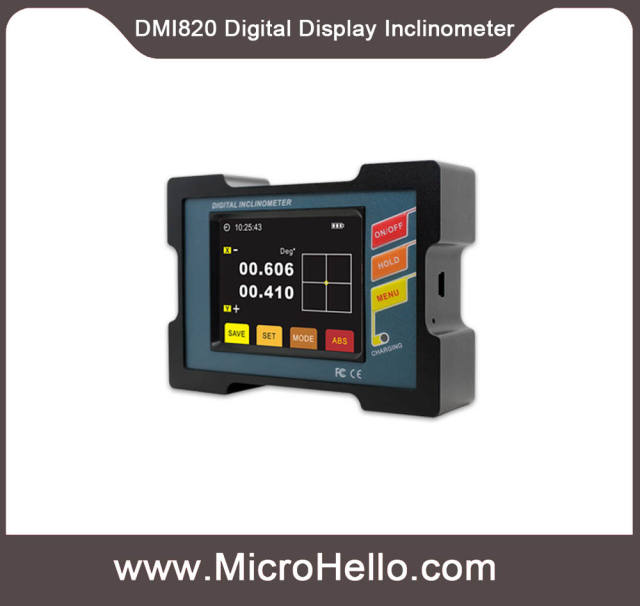

DMI820 Inclinometer with Digital Display Dual axis

SKU: dmi820-15
0.0 (0)
0 Sold
$699.00 $1,279.00
●Best accuracy:<0.003°
●Repeatability:0.003°
●Maximum measuring range:±90°
●Working Temperature : -10°~ +70℃
●Angle,degree/minute/second, mm/meter three modes can be set
●IP54 protection class
● Data store function
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Rang:
    ±15°
    ±30°
    Customized
  • Output Signal:
    USB
Quantity:
  • DMI820 Inclinometer with Digital Display Dual axis
  • Description
General Description
  DMI820 is a digital display inclinometer which took our company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI820 is a uniaxial 90deg measurement, resolution 0.001 °、the highest accuracy <0.005 degree full-scale、fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI820 (SMI820) with the use of separate measurement, used in combination with the Division HCA series tilt sensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI820 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

Technical Data



Parameter

DMI820-15

DMI820-30

Unit

Angle Measuring range DMI820:±15 ° ; DMI820:±30 ° ; °
MM measuring range 267 577 mm
Meausring axis Dual axis Dual axis
The highest meausring accuracy <0.005 (Full measuring range) <0.01 (Full measuring range) °
Angle Measuring resolution 0.001 0.001 °
MM measuring accuracy 0.1 0.2 mm
Three measurement mode selectable radian, angle, mm measuring can be selected
MM measuring res 0.02 mm
LCD 64 true colors night vision display screen
LCD visible area size L57.6*W43.2 mm
Working temperature -10°~ +70℃ °/℃
Working humidity 85 %RH
Power supply 3.7VCharging Lithium battery V
Ideal charging time 3~4 h
Battery sustainable charging times 11 h
Equipped with PC software VC software
Data output signal USB1.1
Connect plug in Standard 5Pin USB connector
Shock resistance 10g@11ms、3Times/Axis(half sinusoid) g
Shock impact 10grms、10~100Hz g
Weight 300 g
Waterproof grade IP54
Material Metal
Size L107*W75*H27.1mm mm

Dimension
