DESPI-C102 adapter for SPI 1.02 inch E-Paper display e-Paper display demo kit

Name: DESPI-C102 adapter for SPI 1.02 inch E-Paper display e-Paper display demo kit
Brand: MicroHello
SKU: DESPI-C102-001
Price: 8.9 USD
Availability: InStock

SKU: DESPI-C102-001

0.0 (0)

1 Sold

$8.90 ~~$21.90~~

DESPI-C102 adapter for SPI 1.02 inch E-Paper display e-Paper display demo kit

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Contact us for bulk & wholesale orders via:
E-mail: microhello_sales@163.com
or via on-line chat app:

ID:+86 159 7819 3886

ID:weixinliang001

☆ Download

DESPI-C102-SCH
DESPI-C102(30P) Specification

☆ INTRODUCTION

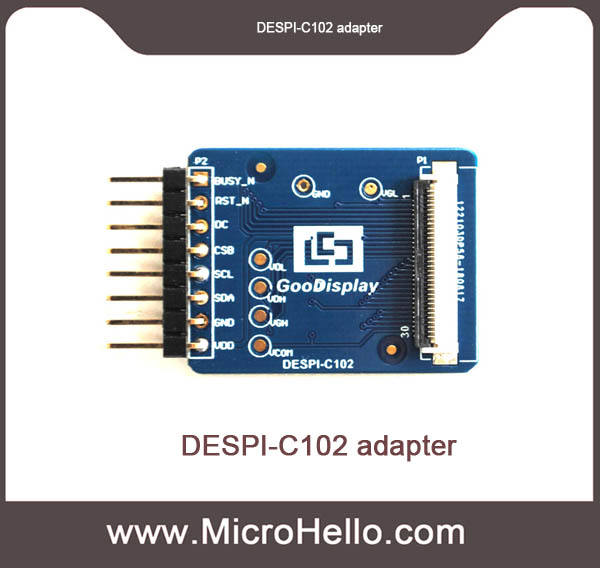

This connector board is designed for 1.2'' SPI e-paper display. It can boost the driving voltage of Good Display's e-paper GDEW0102I3F and GDEW0102T4.

☆ Mechanical Specifications

Parameter	Specification
Model	DESPI-C102_30P
Platform	STM32、Arduino
Dimension	33.8mm x 22.2mm
Power Supply	3.3V
Sample Code	Available (please contact sales)
Operating Temp.	-20°C ~+70°C

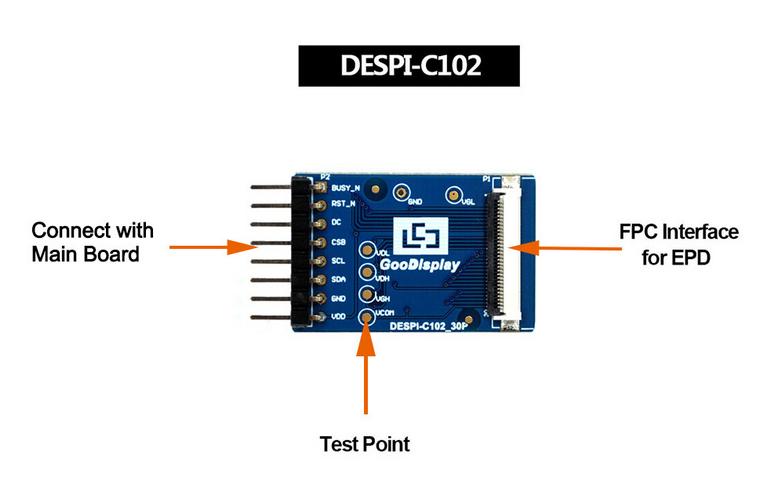

Main Function	Provide driving voltage for e-paper; Provide interface for e-paper and motherboard; Help users operate e-paper quickly.
Additional Function	Measurement of e-paper power consumption; Test of e-paper working condition.

Pin Name	Function Description
BUSY	Busy status output pin
RES	External reset pin (active low)
D/C	Data/Command control (high = data, low = command)
CS	SPI chip select (active low)
SCK	SPI clock signal line
SDI	SPI data input line (MOSI)
GND	Ground
3.3V	Power supply (positive, 3.3V)
