Why choose DAP-10？
In recent years, Raspberry Pi has become popular worldwide, providing an open hardware platform and attracting support from numerous software developers. Today, there are many excellent music player systems available on the Raspberry Pi platform. A solution based on Raspberry Pi allows us to focus our efforts and resources on hardware design, effectively control software development costs, and provide a cost-effective product that benefits end-users.

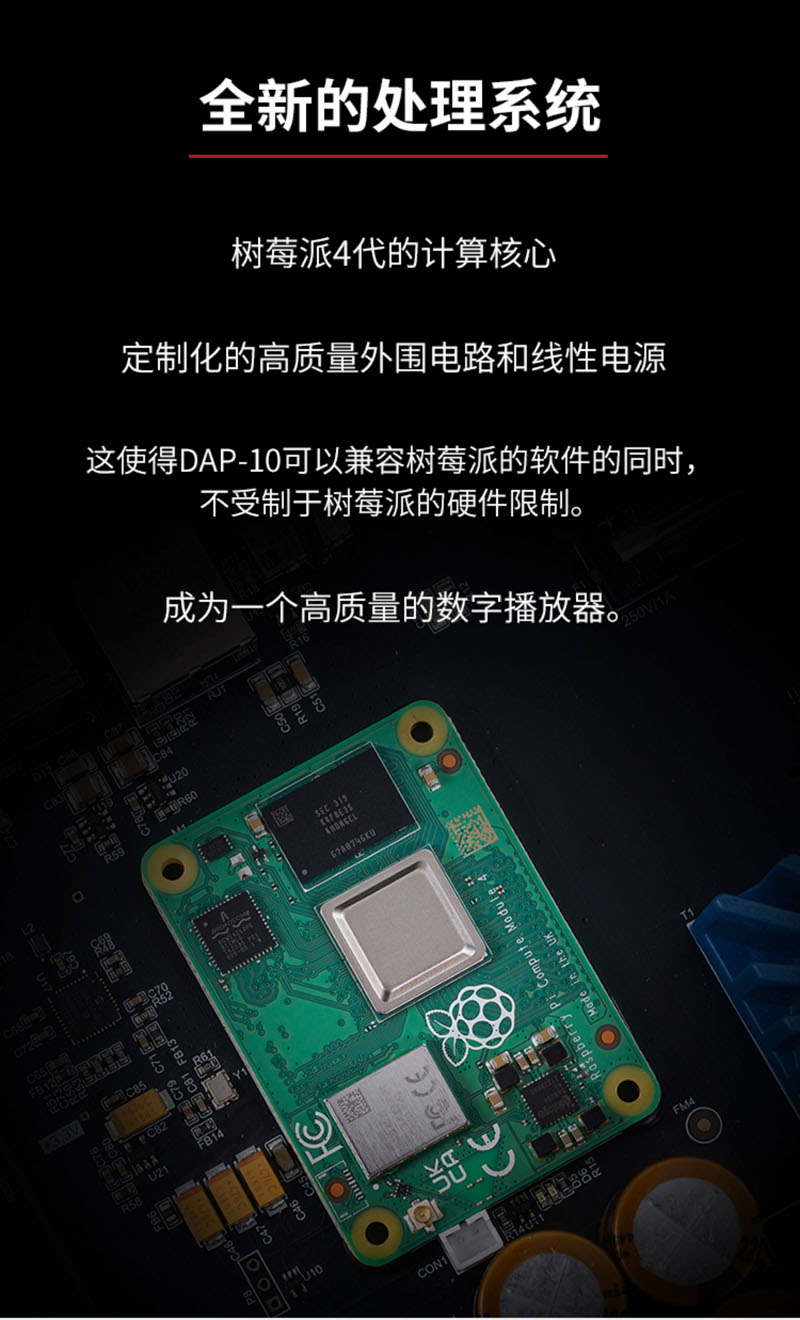

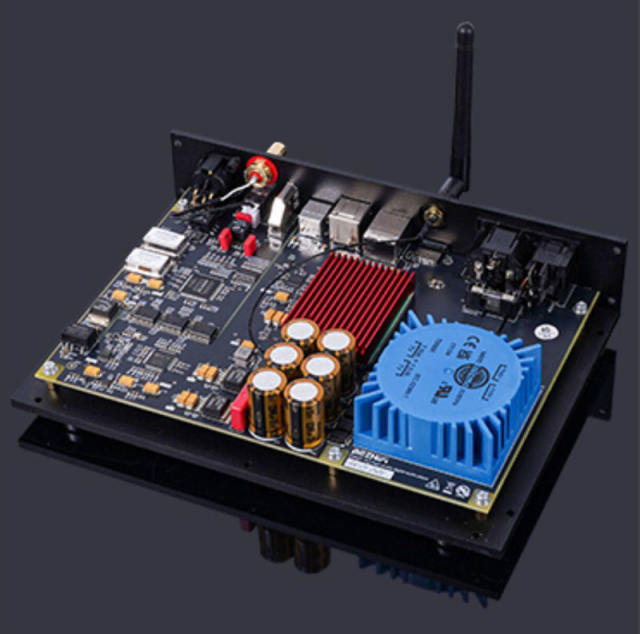

DAP-10 does not use a Raspberry Pi finished board, but instead uses a Raspberry Pi CM4 core board, which allows for more freedom in customized hardware development. Our circuit board provides customized high-quality peripheral circuits and linear power supplies. This allows DAP-10 to be compatible with Raspberry Pi software without being limited by Raspberry Pi hardware, making it a high-quality digital player. Capable of playing from 44.1KHZ to 768KHZ/DSD512, it is the perfect streaming partner for your DAC.
Main Features
►A streaming media player developed based on the Raspberry Pi platform
►Support multiple systems for users to choose from USB and HDMI-IS support up to PCM768kHz and DSD512
►Equipped with powerful hardware

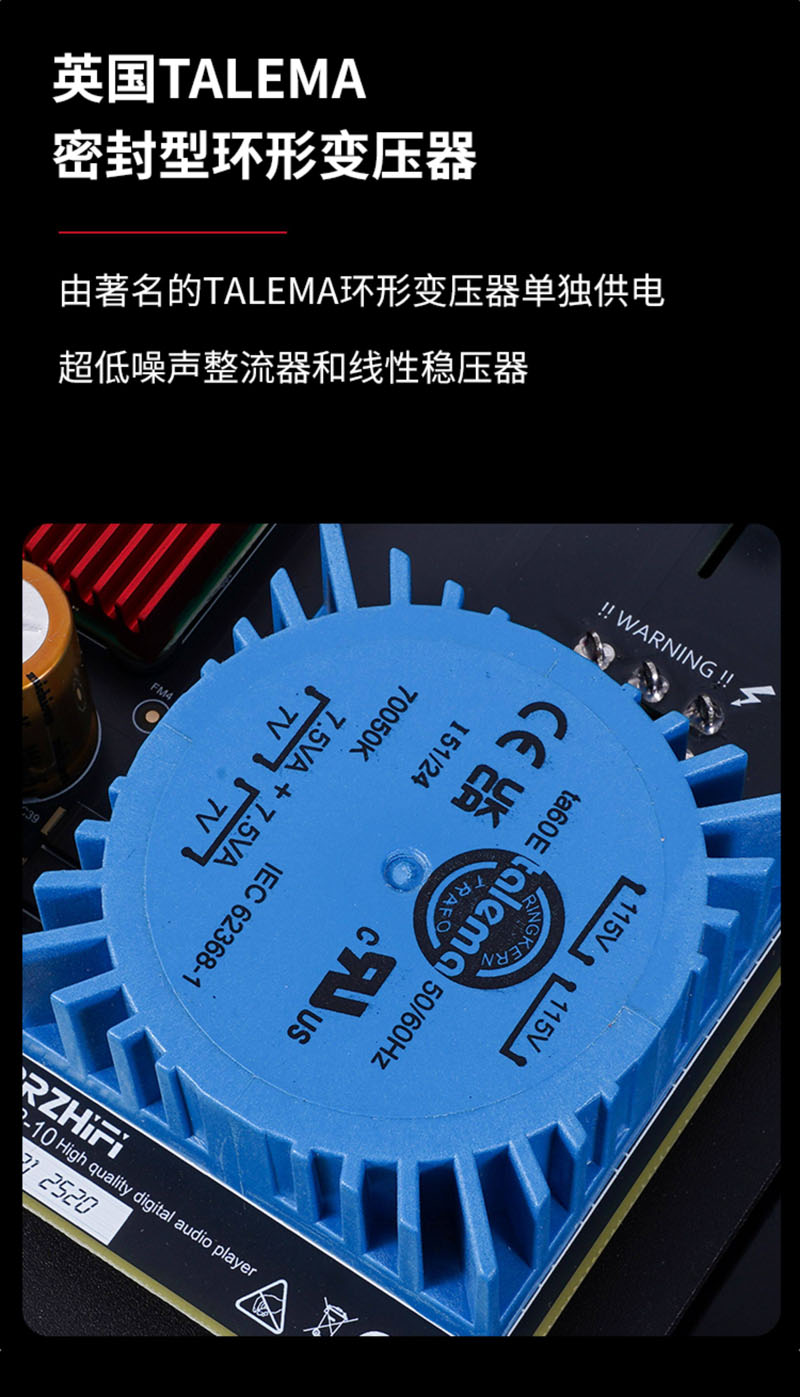

►Talema Sealed Ring Linear Power Supply from the UK

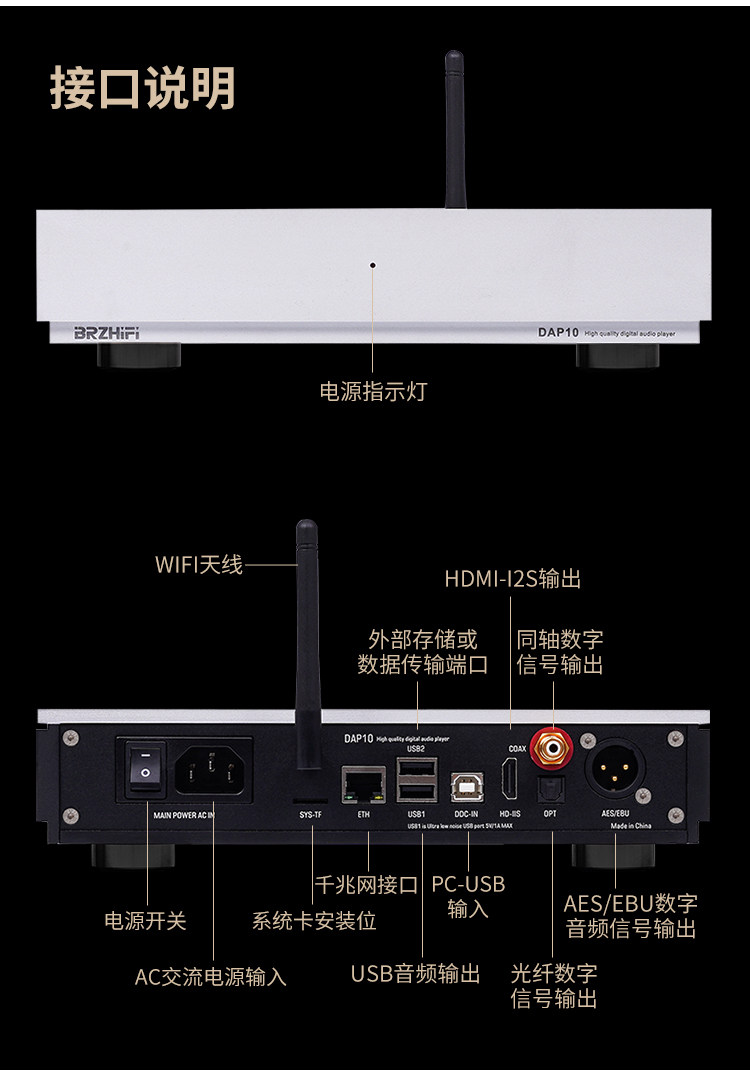

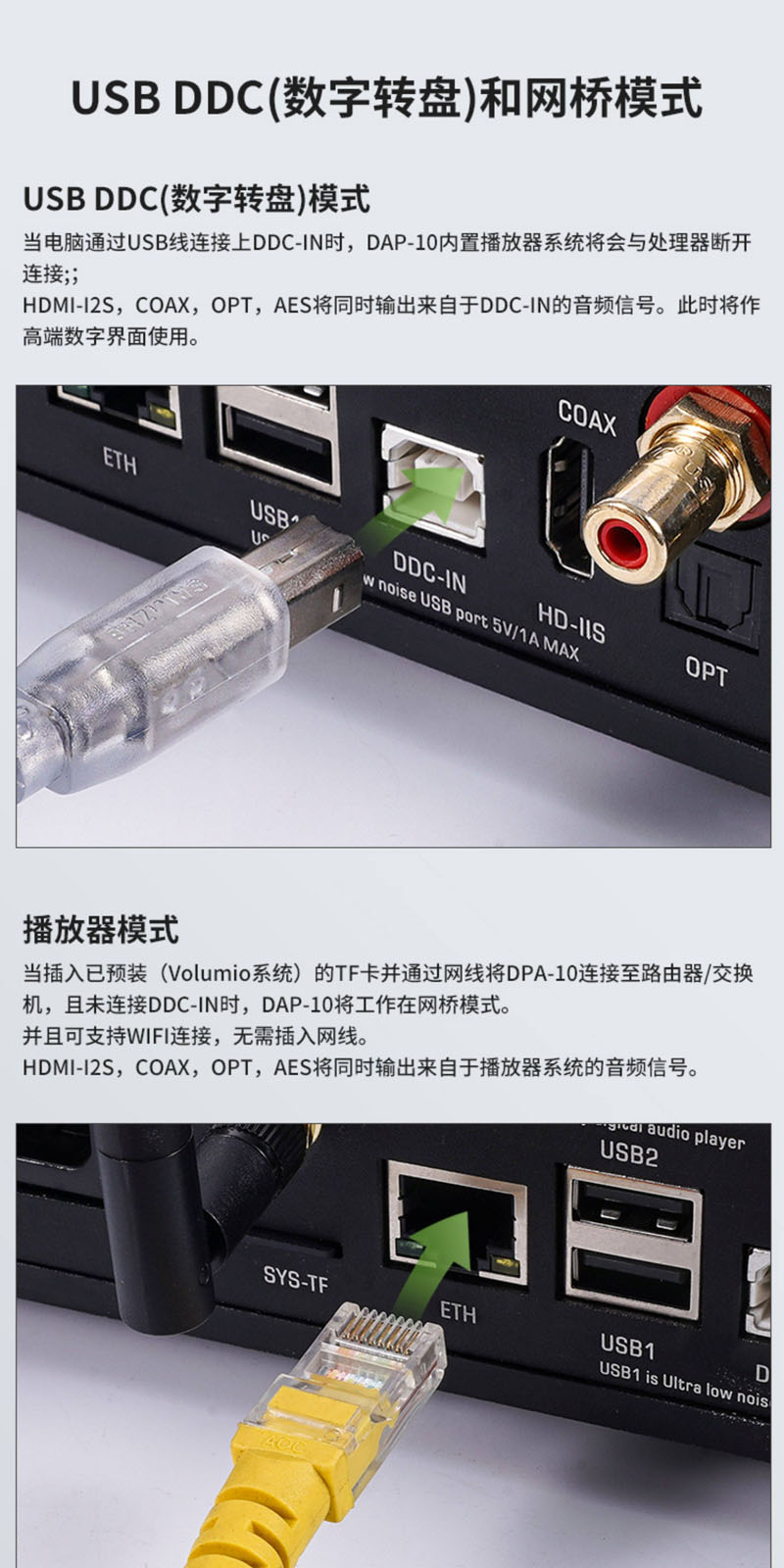

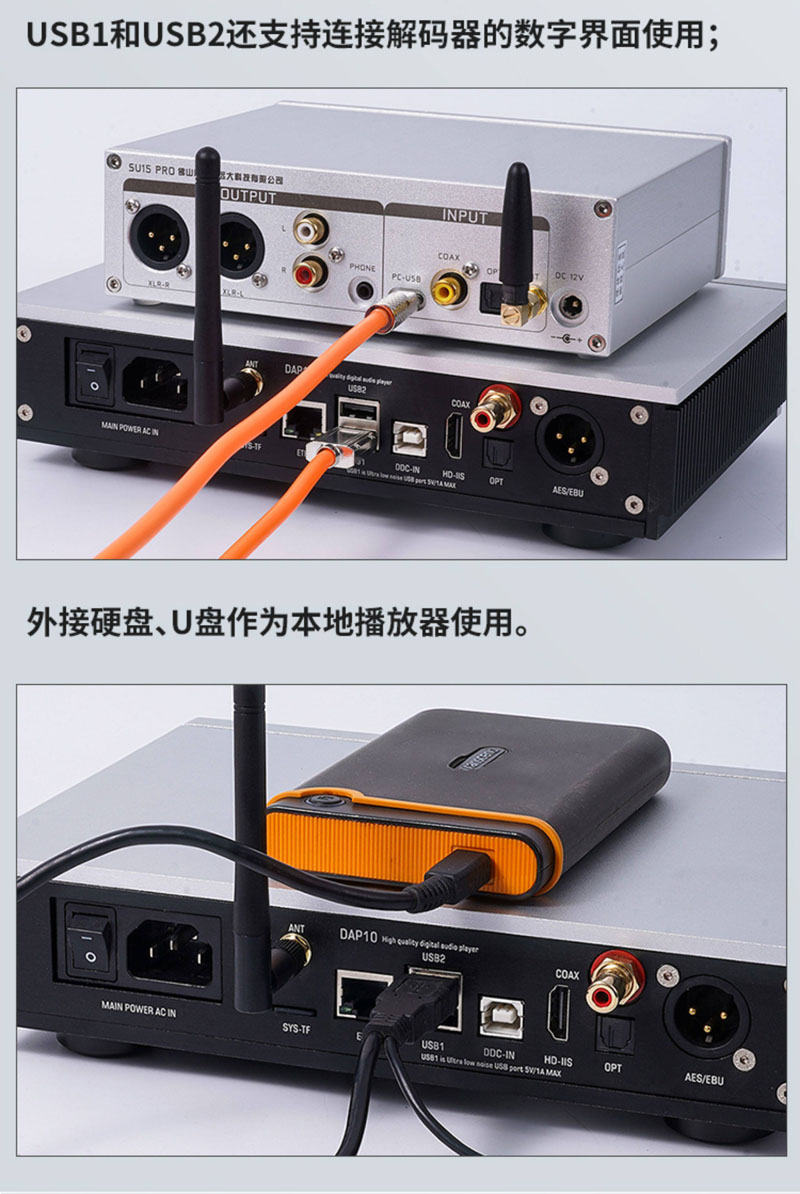

►Two USB-A ports are used for external hard drives and DACs, and are also equipped with one USB-B input interface, can be used as a high-end digital interface

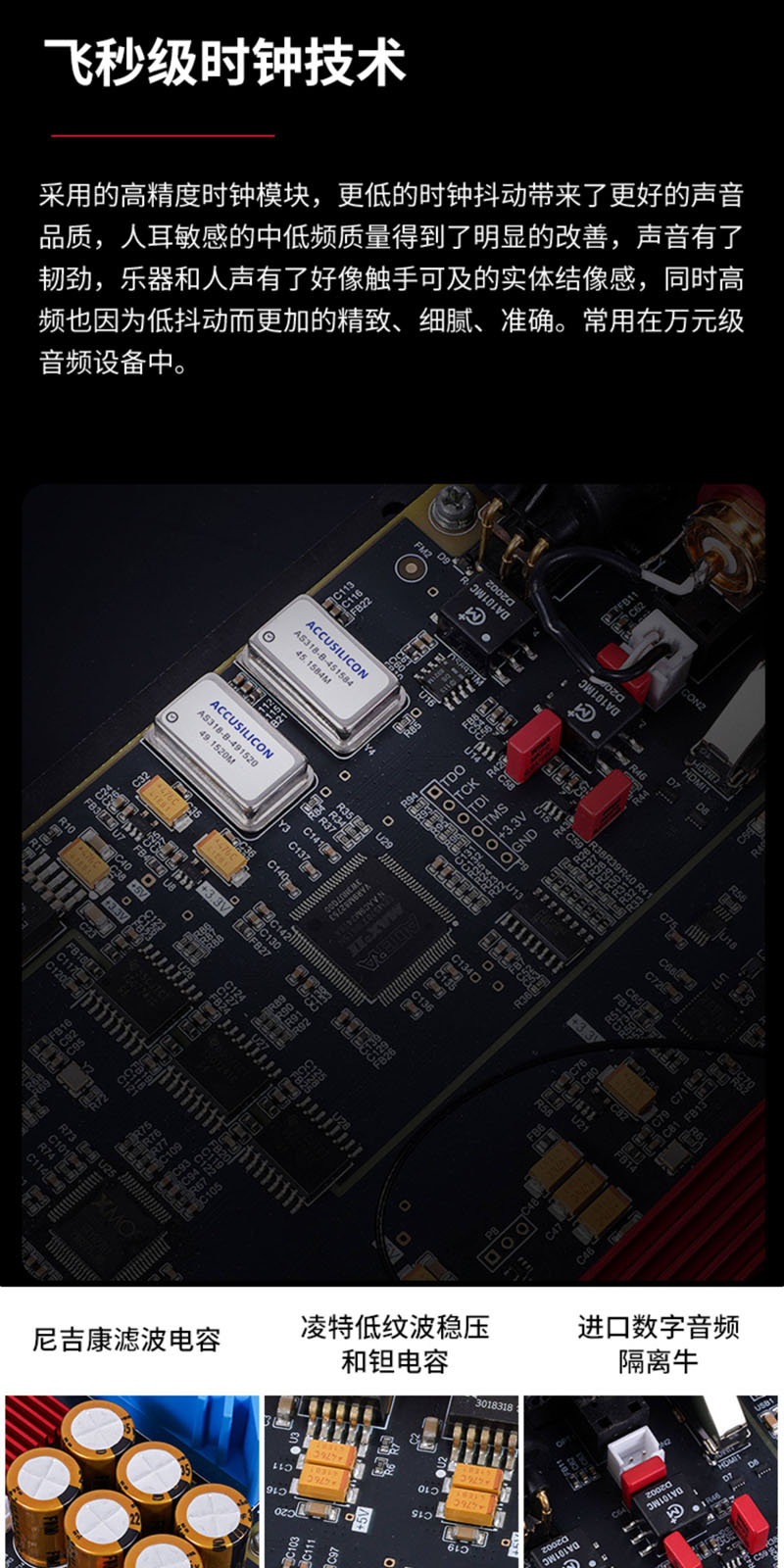

►Two crystal clock oscillators with extremely low phase noise

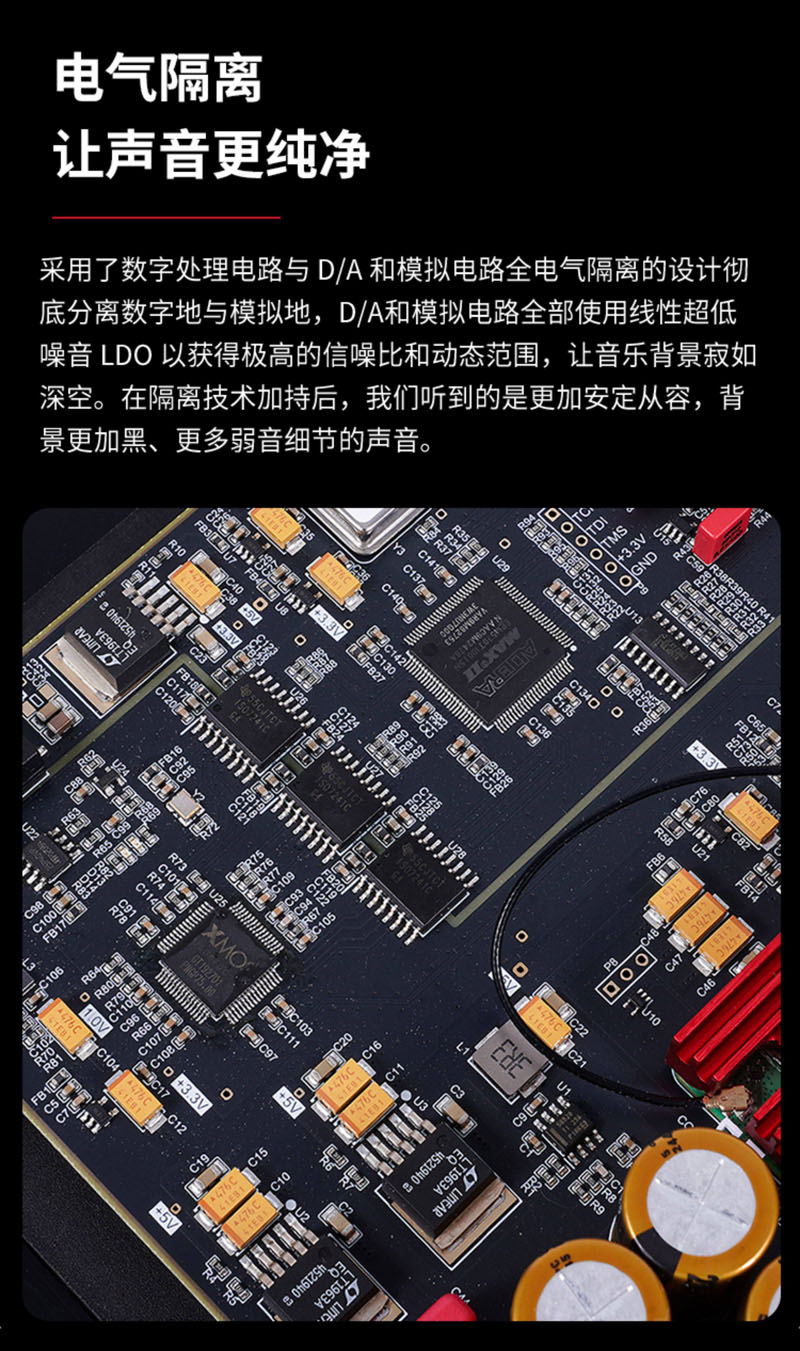

►Fully isolated power and audio signals
Product parameters

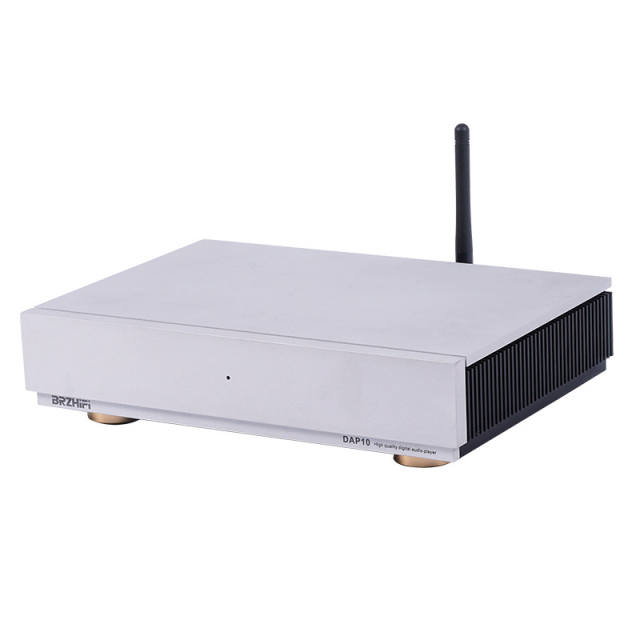

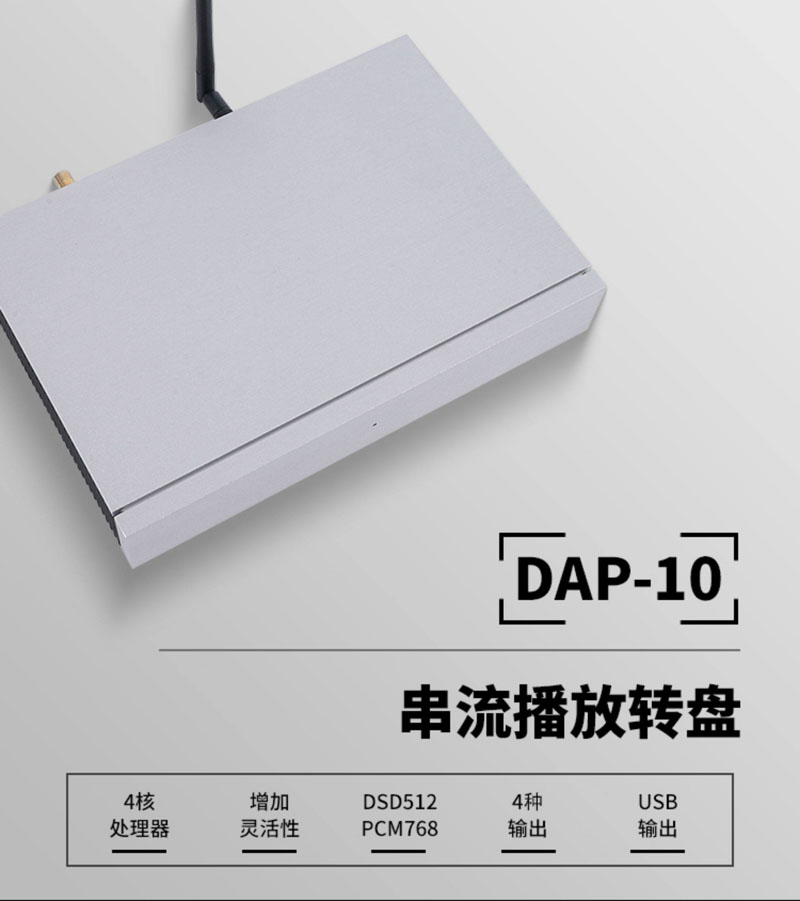

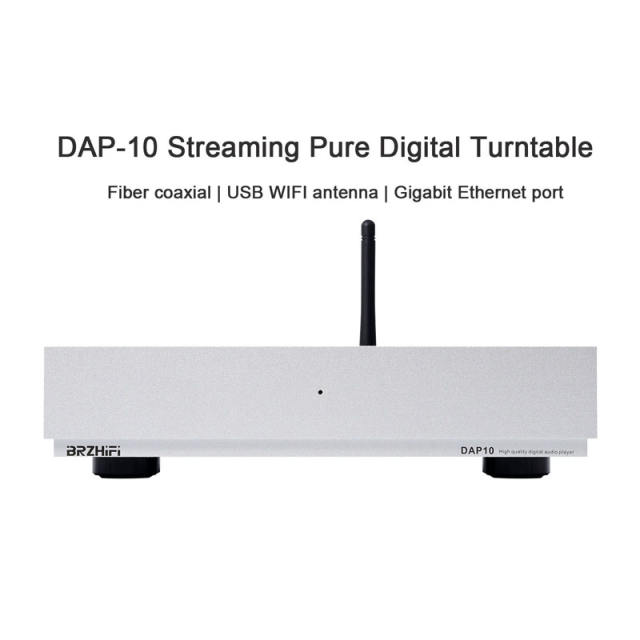

Model: DAP-10
Material: Aviation-grade all-aluminum alloy

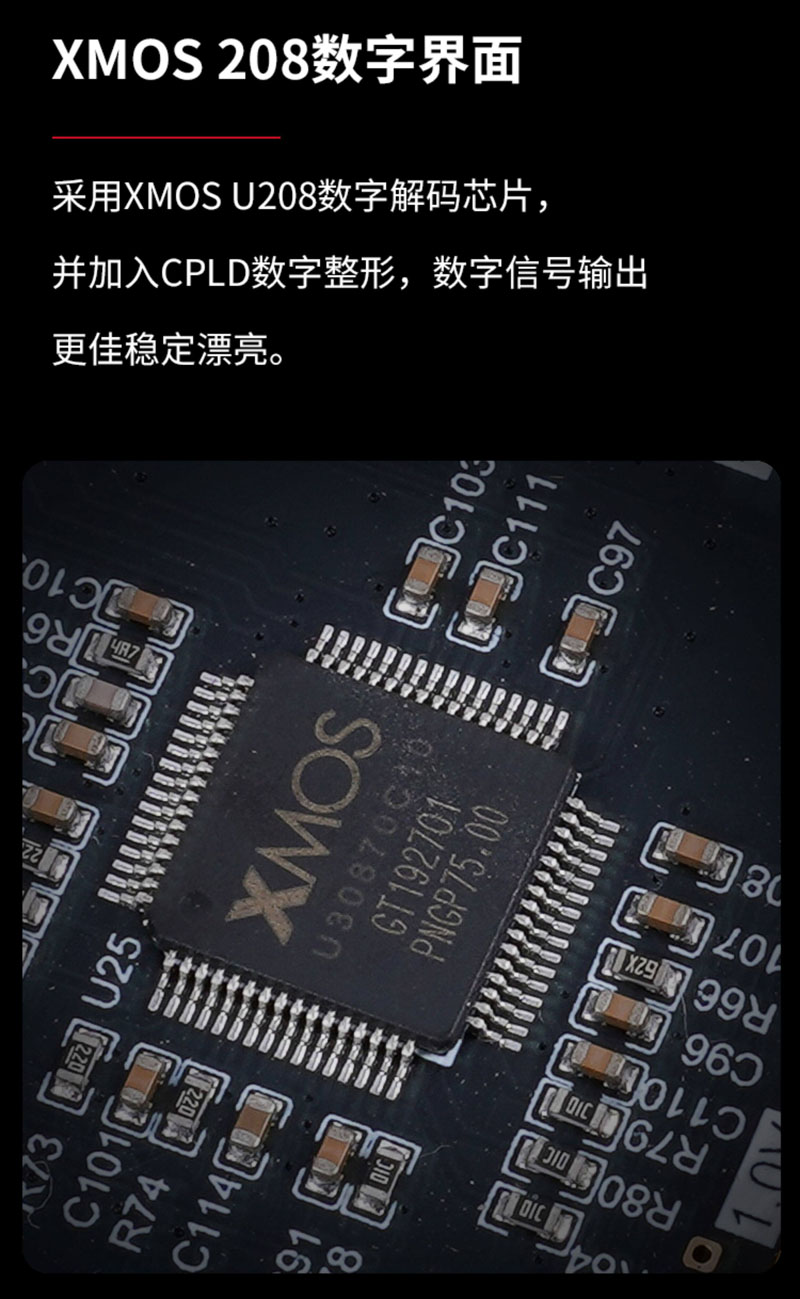

Interface: XMOS U208
APP support: VOLUMIO
CPU core: Quad-core Cortex A72 64-bit processor
Operating system: Pure audio architecture based on the Linux core

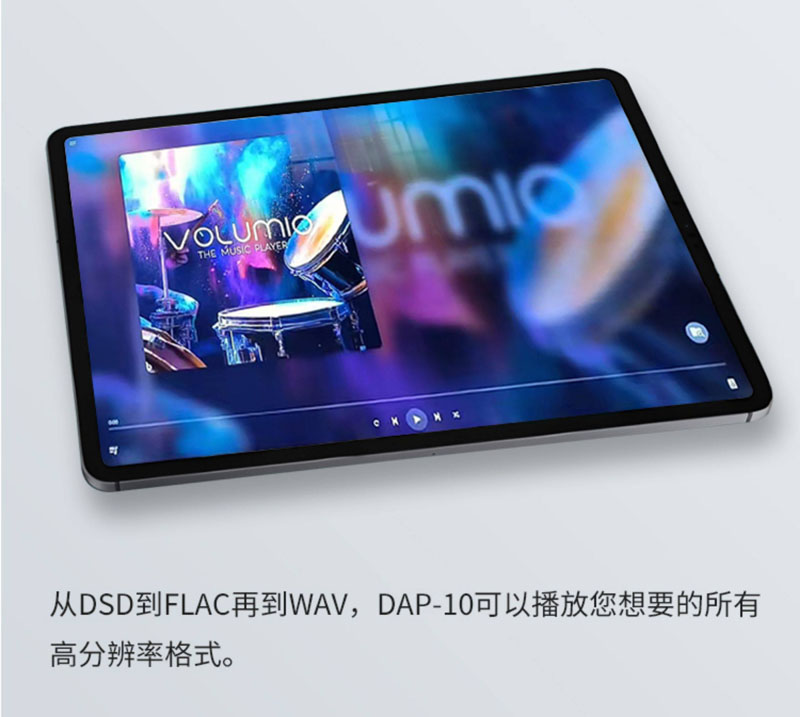

Control system: The Volumio system allows you to manage up to tens of thousands of music files right on your phone
Network interface: RJ45 high-speed Gigabit Ethernet (1000Mbps WIFI6)
Storage interface: SYS-TF1 (for system upgrade),
2 USB-A ports, both of which can support 8T hard drives
If connecting a high-power hard drive, please provide a dedicated power supply for it.

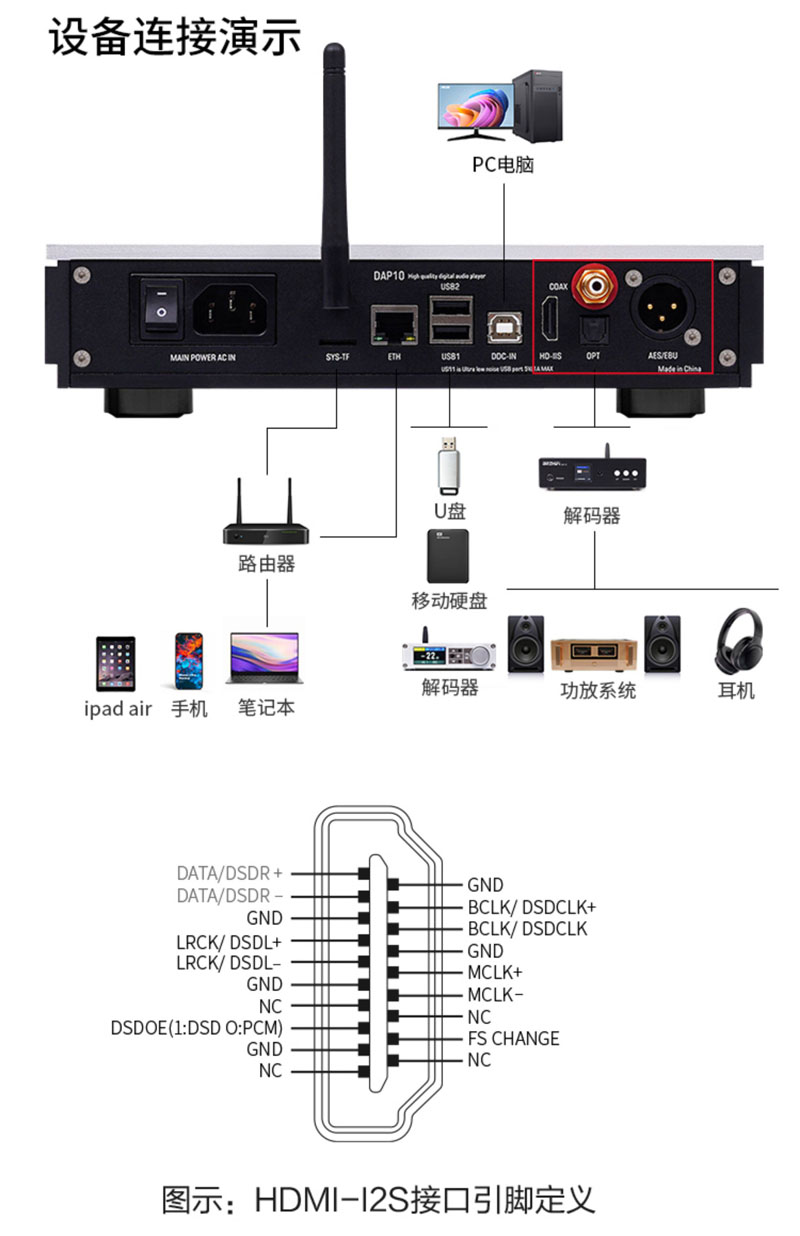

Digital output : coaxial, optical fiber, (HDMI) I2S, AES/EBU
DAC decoded : up to DSD512 PCM768KHz 32Bit formats
Music formats : DSD, DSF, DFF, SACD, MP3, APE, DAC , WAV and FLAC etc.
Coaxial Optical fiber : 192KHz 24Bit
HDMI output: DSD512 PCM768KHz 32Bit
Network streaming : Roon, Airplay, UPnP, DLNA, QQ Music, Kugou, Netease Cloud, 8Playpro, BubbleUpnp, and other software are supported. In the future, more protocols can be added through system upgrades.
Power supply: AC220V/110V, manually switchable
Size: 240x167x58mm (including the height of the foot pad)
Weight: 2.24KG
