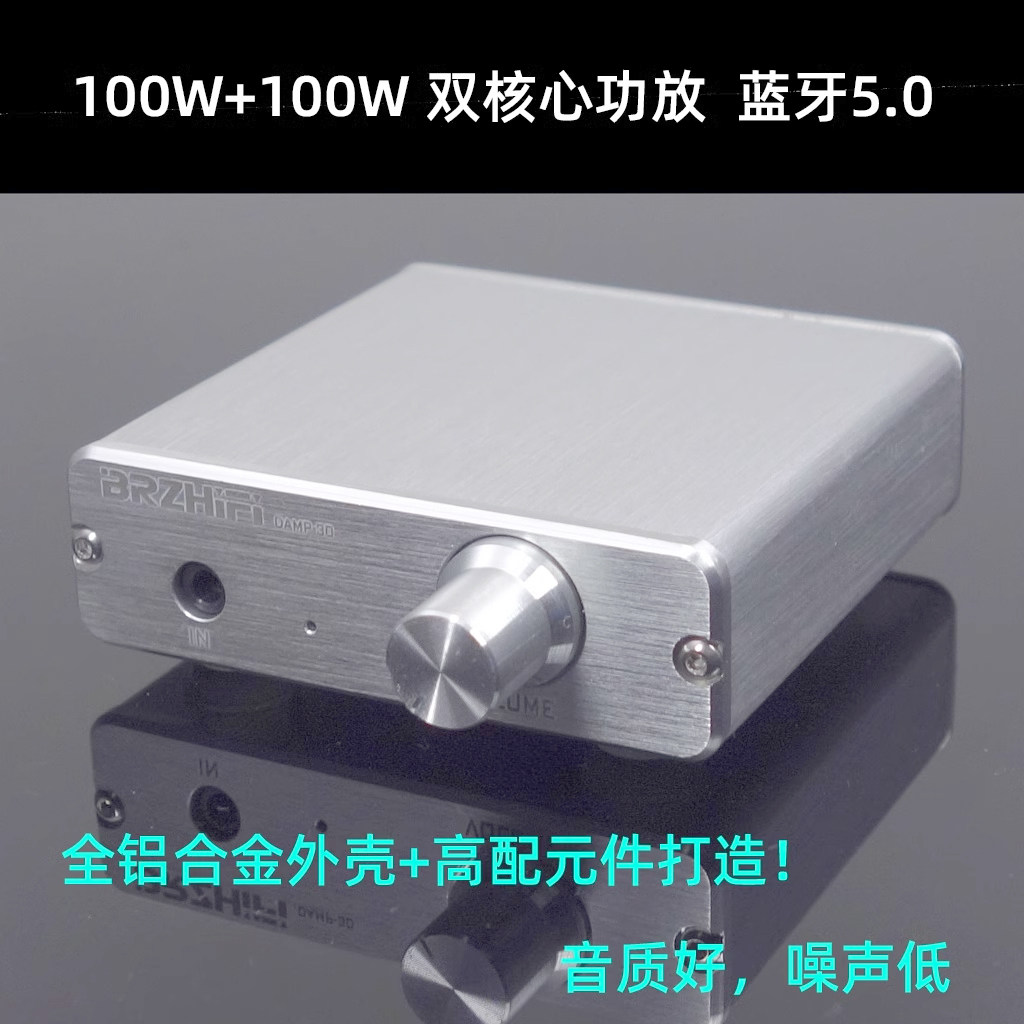

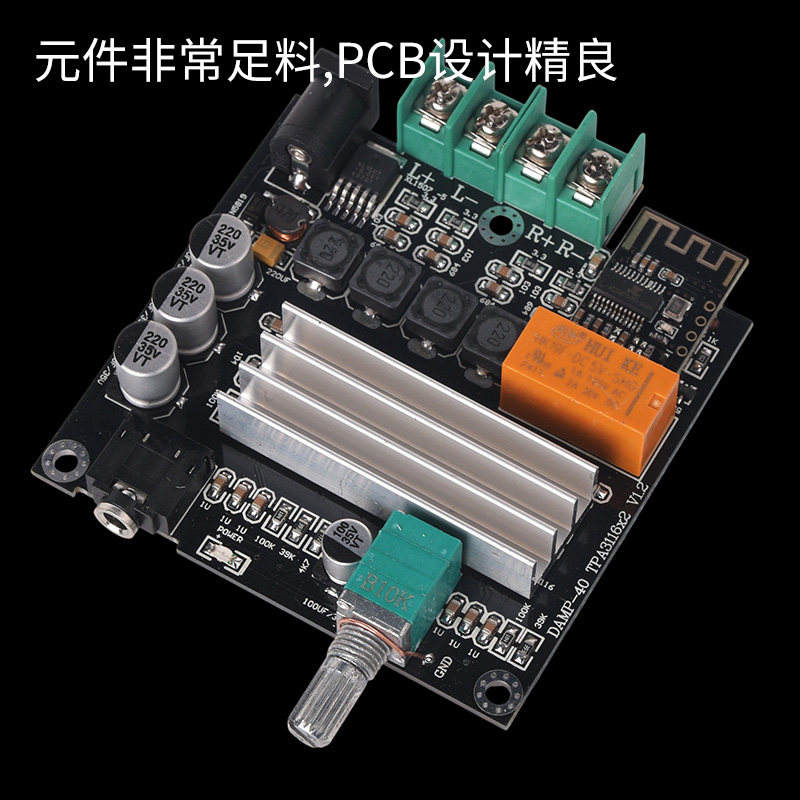

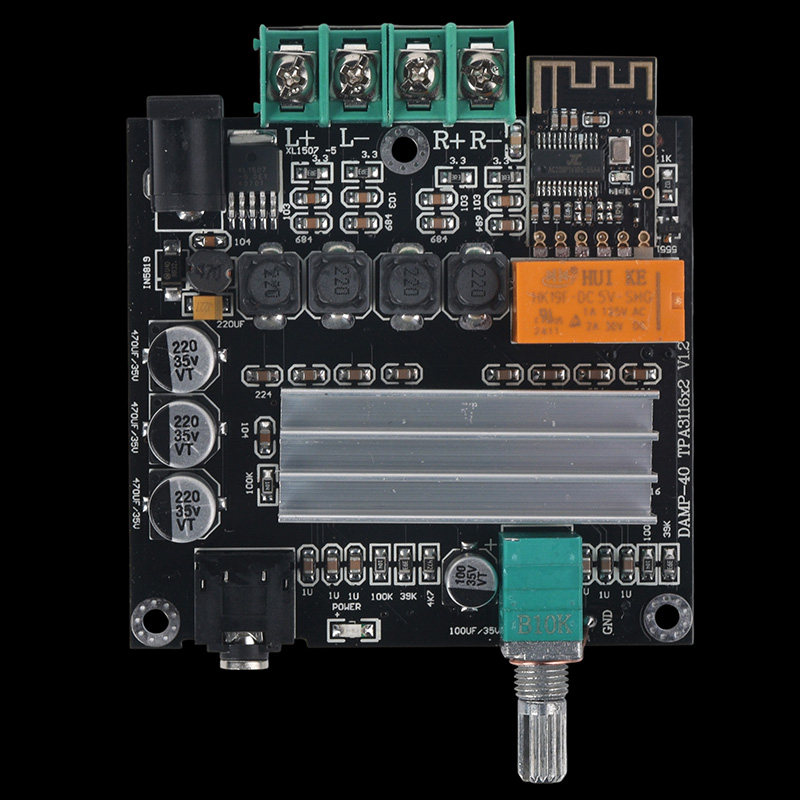

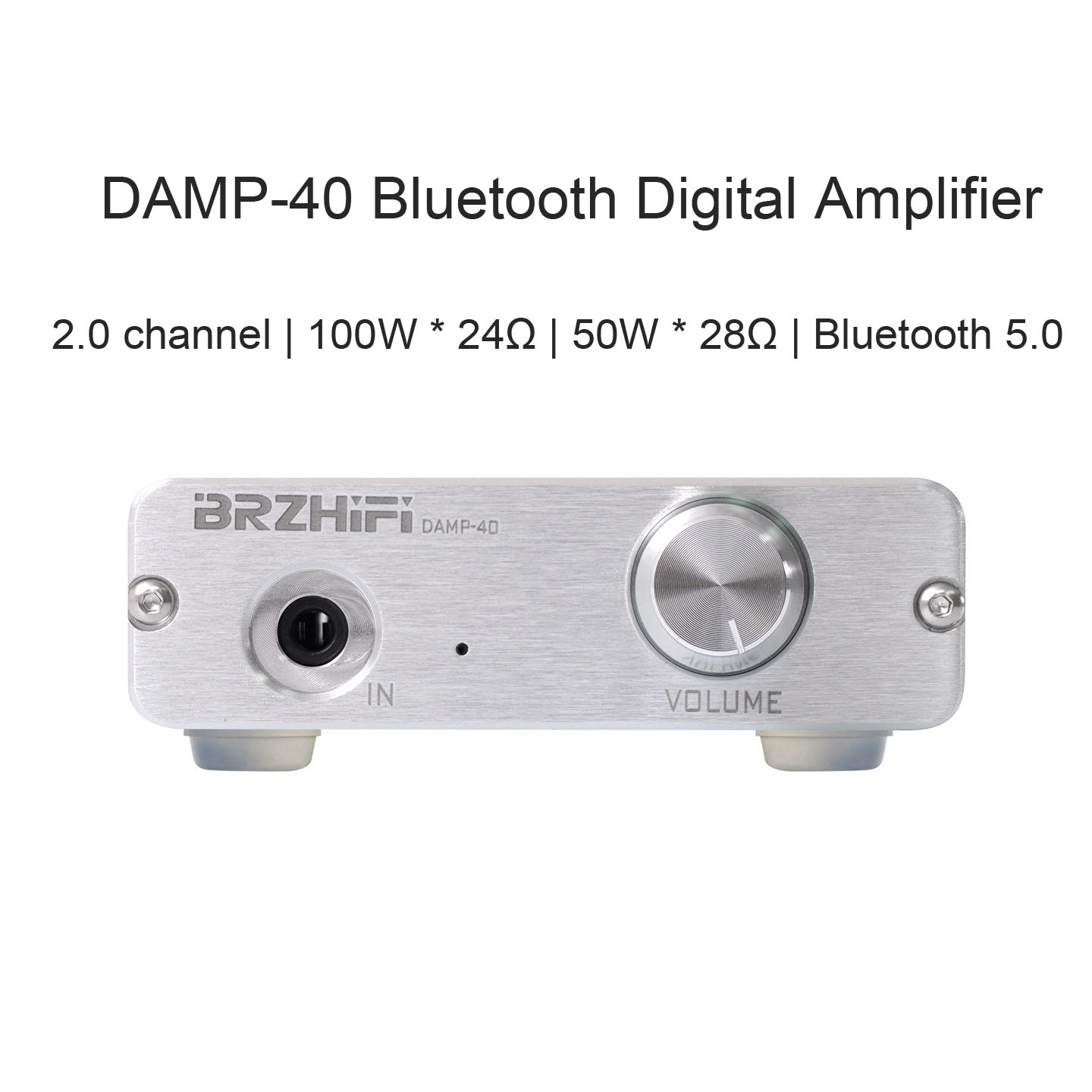

The DAMP40 digital amplifier, with two TPA3116D2 chips as its core output, boasts a power of 100W x 2, sufficient to drive 3-10 inch home speakers. It features very low distortion, excellent circuit design, and meticulous material selection, resulting in pure sound quality, rich bass, and very low noise.
The Bluetooth version is the cutting-edge 5.0. Compared to the general 4.0 version, it boasts higher bandwidth and lower latency, making it ideal for lossless music reception. Additionally, it features technologies such as spark protection, power-on/off surge protection, undervoltage protection, and overheat protection.

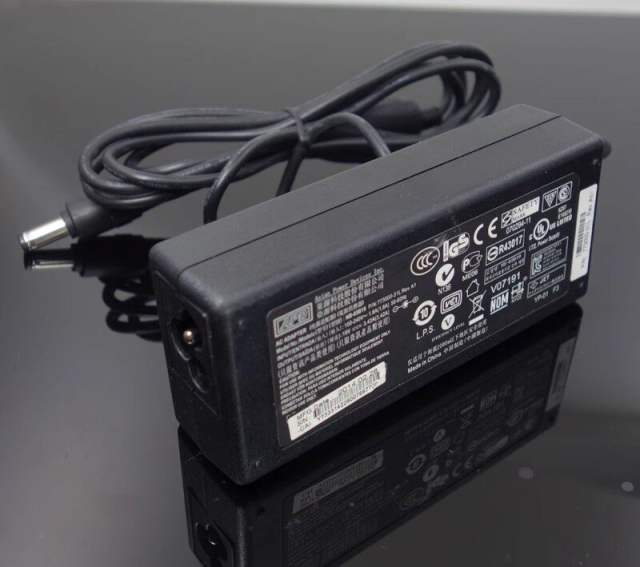

Power supply voltage: DC +12 to +24V (current above 3A)
Power interface: outer diameter 5.5MM, inner diameter 2.5MM
Size: 73.5x71x22mm Weight: 0.1KG
Output power: 100W x 2 (4 ohms); 50W x 2 (8 ohms)
Distortion: <0.1%
Frequency band: 20HZ-20KHZ

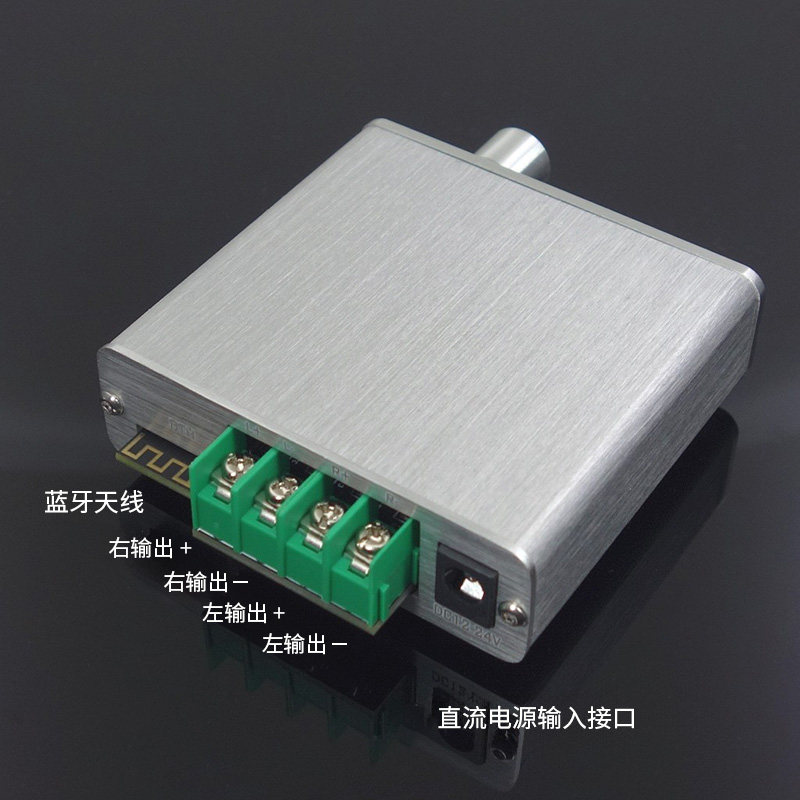

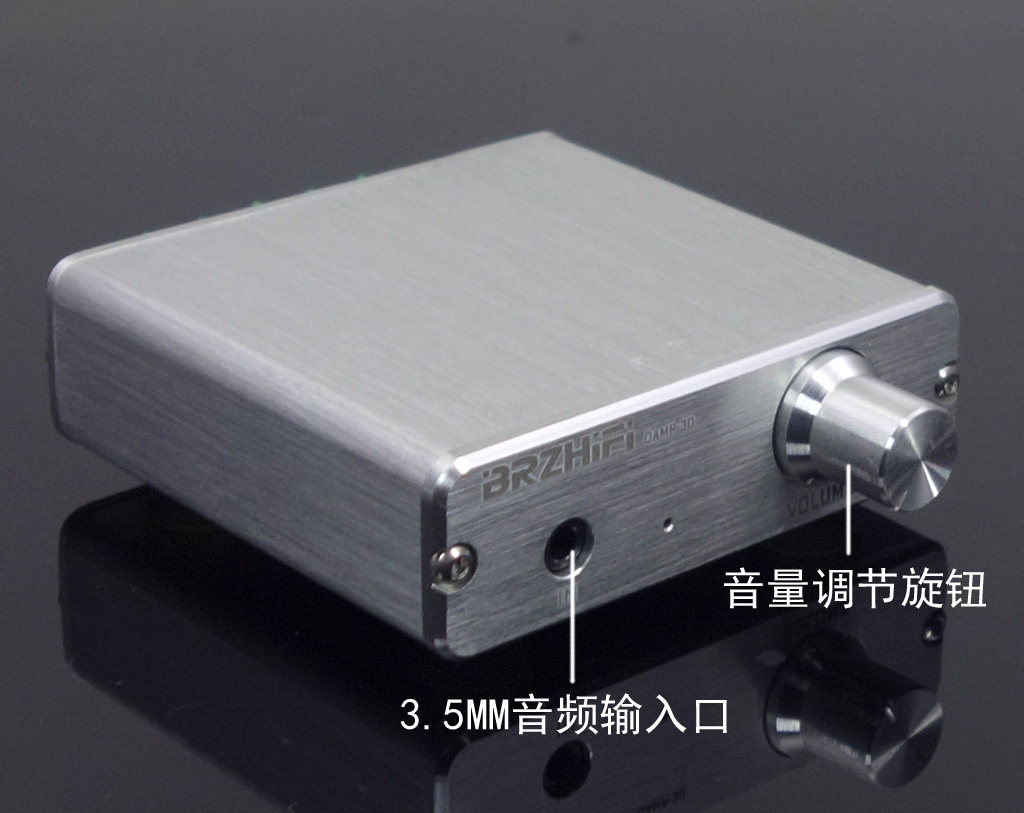

Input interface: Bluetooth + AUX (RCA) analog signal terminal, with Bluetooth taking priority
