Description

Product Overview:
DAM-R3400MS is a Modbus host data recording card, which is configured by the upper computer and can communicate with devices using the standard Modbus RTU protocol. The parsed data is stored in CSV format on a microSD card. Realize high-speed and reliable file management and data collection.
Application:
Can be used for environmental monitoring, power monitoring, flow data recording, temperature and humidity data recording, GPS observation data collection, quadcopter data recording, trajectory recording, various sensor data recording, etc,

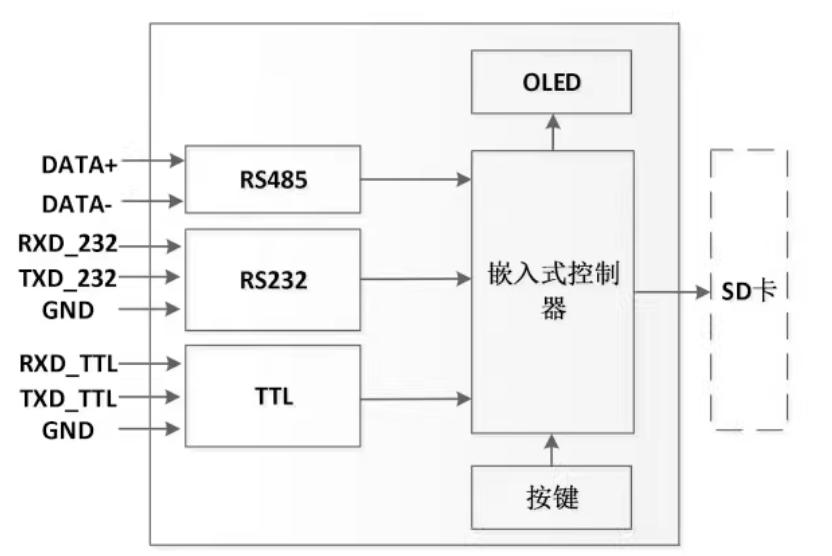

Internal structure diagram

System Parammeters

communication interface	RS485, RS232, TTL serial interfaces
Baud rate	1200~921600bps
watchdog	software watchdog
Power supply voltage	+9~30VDC
Power protection	Reverse power protection
power consumption	Rated value 0.5W @ 24VDC
operate temperature	-10℃~+70℃
storage temperature	-20℃~+85℃
Micro SD Card and File System	Supports up to 64GB micro SD card and FAT12/FAT16/FAT32 file systems
