Overview

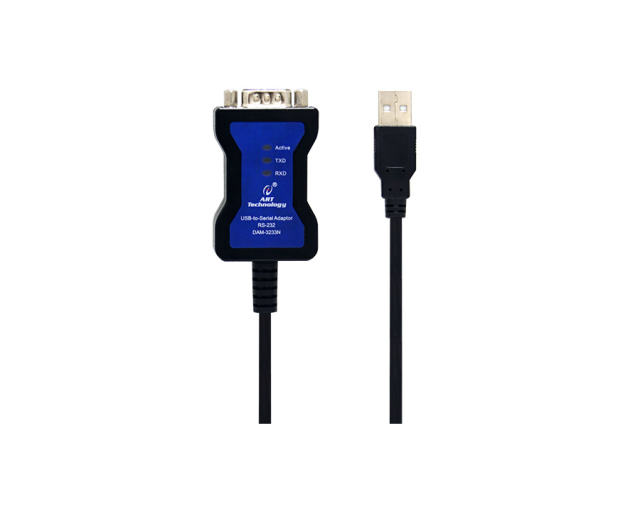

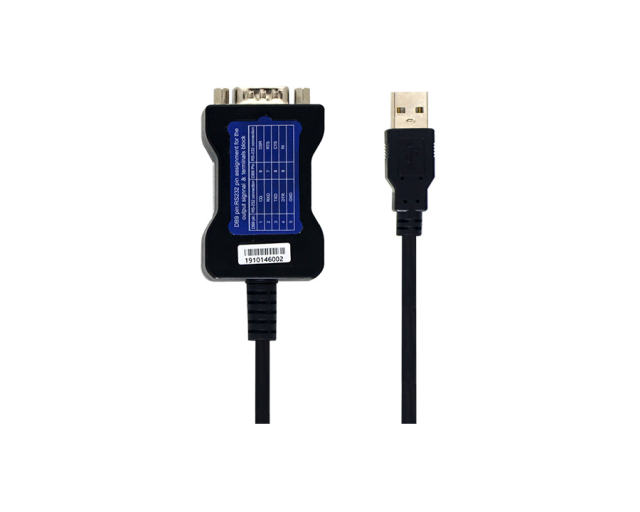

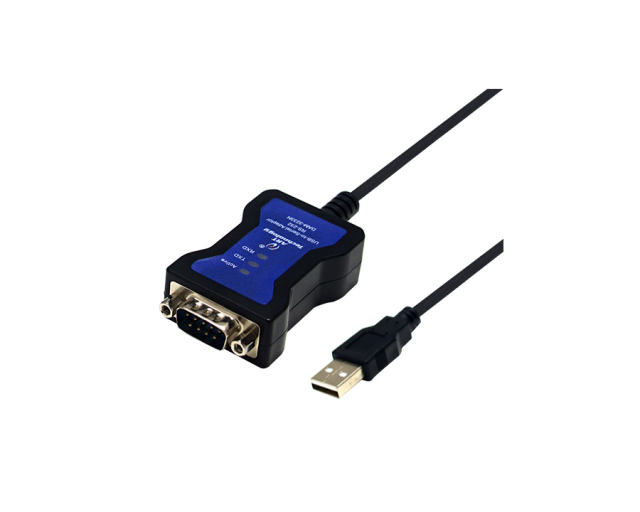

DAM-3233N/H can easily establish a reliable connection between the serial port (RS-232) and the USB port. It is possible to provide a very easy-to-use environment for serial (RS-232) peripherals by taking advantage of the plug-and-play and hot-plug capabilities of the USB interface. It can easily connect devices such as mobile phones, digital cameras, ISDN-TA, Modem, etc., and provides a transfer rate of up to 1Mbps.
|
Communication Conversion
|
|
USB
|
1 channel, compatible with USB1.1/USB2.0 standard
|
|
USB Interface
|
Flat USB (USB-A female connection)
|
|
Serial Port
|
1 RS232 interface, compatible with EIA/TIA 232 standard
|
|
Serial Interface
|
DB9 pin connector
|
|
Transmission Rate
|
DAM-3233N :Data transfer rate below 1Mbps
|
| DAM-3233H :Data transfer rate below 2Mbps |
|
Protocol
|
Support automatic handshake protocol
|
|
Support
|
Supports remote wake-up and power management
|
|
Application
|
Monolithic USB port to serial port communication
|
|
Transmission Distance
|
up to 5 meters
|
|
Others
|
|
Signal Indication
|
3 indicator lights, power light, sending light, receiving light
|
|
Power Supply
|
USB powered, 5V±5%
|
|
Power Consumption
|
Rated 0.1W @ 5VDC
|
|
Operating Temperature
|
-40℃～＋85℃
|
|
Storage Temperature
|
-40℃～＋85℃
|
|
Dimensions
|
54.5mmX37mmX18mm (excluding the size of the data cable)
The length of the data cable is 70cm by default. If you need a longer
data cable, please contact the sales.
|
