Overview

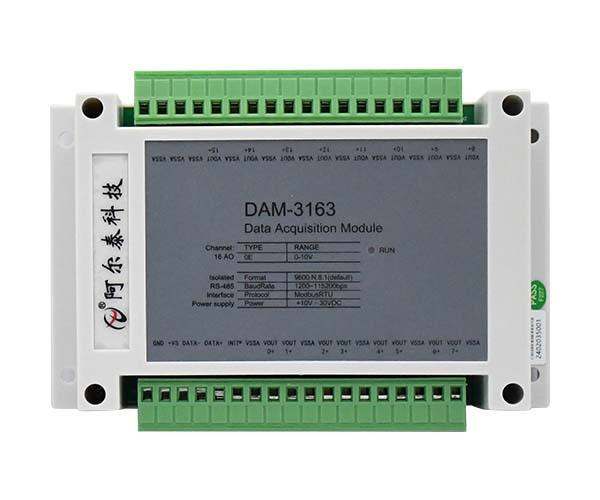

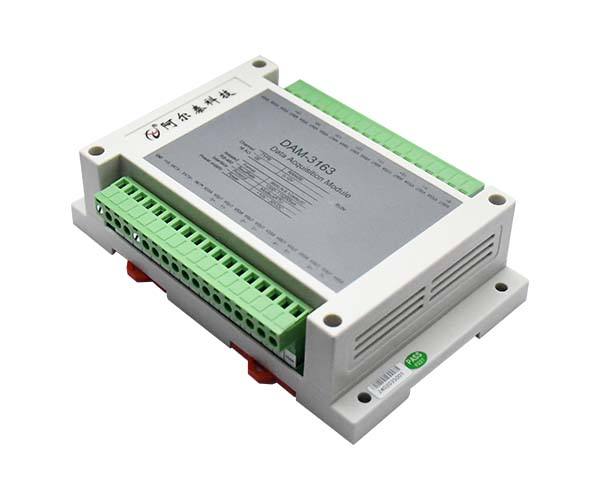

DAM-3163 is a 16-channel 16-bit analog output module/Voltage Output module, and it has RS485 communication interface and standard ModbusRTU protocol. Equipped with a good human-computer interface, easy to use and stable performance. It is equipped with a good human-computer interface, so it is easy to use and its performance is stable.
| 模拟量输出Analog output |
通道数Number of channels
|
16 channels |
| 输出类型Type of output |
电压Voltage（V），单端输出共阴极Single ended output common cathode |
| 输出量程Output range |
默认量程Default range：0-10V |
| 输出负载Output Load |
≥500Ω |
| 分辨率Resolution |
16Bit |
| 输出精度Output accuracy |
±0.03% |
| 隔离电压Isolation Voltage |
2500VRMS(浪涌保护电压Surge protection voltage) |
| 其他other |
| 通讯接口communication interface |
RS485（光电隔离with Photoelectric isolation） |
RS485传输速率注1
RS485 Transmission Rate |
最大180次/秒（单模块总通道，115200bps下）Maximum 180 times/second (single module total channel, 115200bps)
最大24次/秒（单模块总通道，9600bps下）Maximum 24 times/second (single module total channel, 9600bps)
最大3次/秒（单模块总通道，1200bps下）Maximum 3 times per second (single module total channel, 1200bps) |
| 波特率Baud rate |
1200~115200bps |
| 看门狗watchdog |
支持软件看门狗和通信看门狗Support software watchdog and communication watchdog |
| 供电电压Supply Voltage |
+10~30VDC |
| 电源保护Power protection |
电源反向保护Reverse power protection |
| 功耗Power consumption |
额定值 Rated Value 1.2W @ 24VDC |
| 操作温度Operate temperature |
-10℃～＋70℃ |
| 存储温度Storage temperature |
-40℃～＋80℃ |
Model Selection
| 型号Model |
DAM3163 |
DAM3161 |
DAM3160 |
DAM3060V(new version) |
DAM3060C |
| 输出通道Output channel |
16-Ch single-ended |
16-Ch single-ended |
6-Ch single-ended |
4-Ch single-ended |
4-Ch single-ended |
| 输出类型Output type |
电压输出Voltage Output |
电压/电流输出Voltage/Current Output |
电压/电流输出Voltage/Current Output |
电压输出Voltage Output |
电流输出Current output |
| 量程Range |
Range： |
Default range：0-5V |
Default range：0-5V |
Default range：0-5V |
Range： |
| 0-10V |
0-20mA/4-20mA |
0-20mA/4-20mA |
0-5V/0-10V |
0-20mA |
| |
0-5V/0-10V |
0-5V |
+5V/+10V |
4-20mA |
| 量程选择Range selection |
Via Jumper |
Via Jumper |
Via Jumper |
Via Software |
Via Software |
| 分辨率Resolution |
16Bit |
12Bit |
12Bit |
12Bit |
12Bit |
| 输出精度Output accuracy |
± 0.03% |
3‰ |
2‰ |
1‰ |
2% |
| 负载要求Load requirements |
输出负载Output Load |
电压负载VOLTAGE LOAD>=400 Ω |
电压负载VOLTAGE LOAD>=400 Ω |
电压负载VOLTAGE LOAD>=400 Ω |
电流负载current load<=500 Ω |
| >=250 Ω |
电流负载current load<=400 Ω |
电流负载current load<=400 Ω |
|
|
| 通讯接口Communication interface |
RS485 |
RS485 |
RS485 |
RS485 |
RS485 |
| 波特率Baud rate |
1200-115200bps |
1200-115200bps |
1200-115200bps |
1200-115200bps |
1200-115200bps |
| 供电电压Supply Voltage |
+10-20VDC |
+10-20VDC |
+15-20VDC |
+10-20VDC |
+10-20VDC |
