Overview

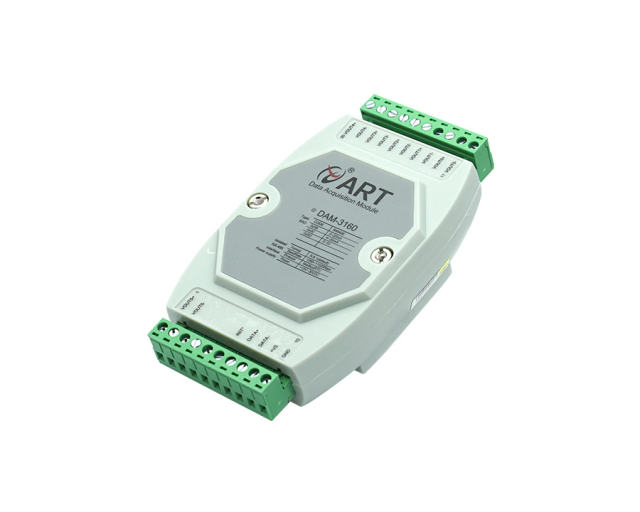

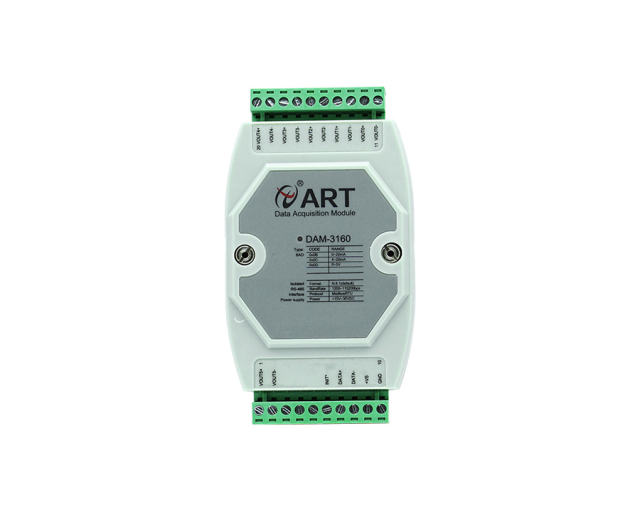

DAM-3160 is a 6-channel 12-bit analog output module, and it has RS485 communication interface and standard ModbusRTU protocol. Equipped with a good human-computer interface, easy to use and stable performance. It is equipped with a good human-computer interface, so it is easy to use and its performance is stable.
|
Analog Input
|
|
Output Channel
|
6 single-ended analog outputs
|
|
Output Type
|
voltage output, current output
|
|
Range
|
Default: 0-5V
0~20mA, 4~20mA, 0~5V (voltage and current range need to
open the shell jumper to select)
|
|
Output Rate
|
output immediately
|
|
Resolution
|
12 bits
|
|
Output Precision
|
2‰
|
|
Load Requirement
|
Voltage load >= 400 Ω, current load <= 400 Ω
|
|
Others
|
|
Communication Interface
|
RS485
|
|
Baud Rate
|
1200~115200bps
|
|
Watchdog
|
software watchdog
|
|
Supply Voltage
|
+15～30VDC
|
|
Power Protection
|
Power reverse protection
|
|
Power Consumption
|
Rated 1.5W @ 24VDC
|
|
Operating Temperature
|
-10℃～＋70℃
|
|
Storage Temperature
|
-20℃～＋85℃
|
Model Selection
| 型号Model |
DAM3163 |
DAM3161 |
DAM3160 |
DAM3060V(new version) |
DAM3060C |
| 输出通道Output channel |
16-Ch single-ended |
16-Ch single-ended |
6-Ch single-ended |
4-Ch single-ended |
4-Ch single-ended |
| 输出类型Output type |
电压输出Voltage Output |
电压/电流输出Voltage/Current Output |
电压/电流输出Voltage/Current Output |
电压输出Voltage Output |
电流输出Current output |
| 量程Range |
Range： |
Default range：0-5V |
Default range：0-5V |
Default range：0-5V |
Range： |
| 0-10V |
0-20mA/4-20mA |
0-20mA/4-20mA |
0-5V/0-10V |
0-20mA |
| |
0-5V/0-10V |
0-5V |
+5V/+10V |
4-20mA |
| 量程选择Range selection |
Via Jumper |
Via Jumper |
Via Jumper |
Via Software |
Via Software |
| 分辨率Resolution |
16Bit |
12Bit |
12Bit |
12Bit |
12Bit |
| 输出精度Output accuracy |
± 0.03% |
3‰ |
2‰ |
1‰ |
2% |
| 负载要求Load requirements |
输出负载Output Load |
电压负载VOLTAGE LOAD>=400 Ω |
电压负载VOLTAGE LOAD>=400 Ω |
电压负载VOLTAGE LOAD>=400 Ω |
电流负载current load<=500 Ω |
| >=250 Ω |
电流负载current load<=400 Ω |
电流负载current load<=400 Ω |
|
|
| 通讯接口Communication interface |
RS485 |
RS485 |
RS485 |
RS485 |
RS485 |
| 波特率Baud rate |
1200-115200bps |
1200-115200bps |
1200-115200bps |
1200-115200bps |
1200-115200bps |
| 供电电压Supply Voltage |
+10-20VDC |
+10-20VDC |
+15-20VDC |
+10-20VDC |
+10-20VDC |
