Overview
We currently offers total of 15+ populated
PIC,AVR,MSP430,XMEGA,51,C8051F,STM8 (CARDXXX-XXX-X series) MCU cards with different microcontrollers，especially for
OpenMCU Basic-A development board.You can also purchase Half-empty PCB cards that you can populate on your own and solder any supported microcontroller you need in your development. This way your
OpenMCU Basic-A development board becomes truly flexible and reliable tool for almost any of your MCU projects. These CARDXXX-XXX-X series MCU cards can also be used in your final devices.
The
CARD44-PIC-A series MCU cards are standardized add-on boards, which has standard Pinout description and allows very simple installation and replacement of the microcontroller unit (MCU) on a
OpenMCU Basic-A development board equipped with the MCU Card socket.
The

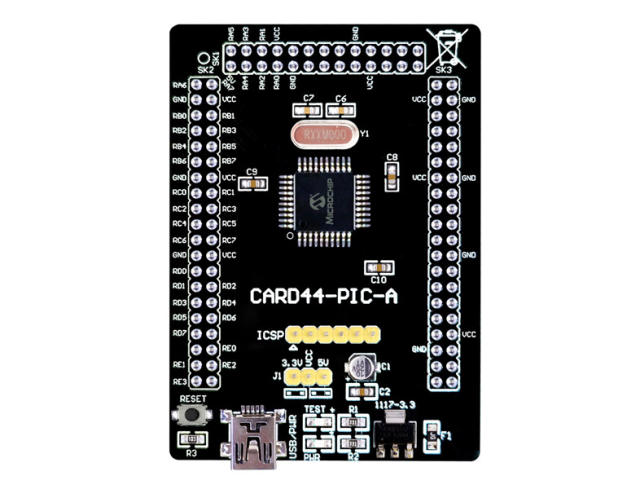

CARD44-PIC-A cards is one of these MCU cards which instal a 8bit TQFP44
PIC microcontroller like PIC16F877A,PIC16F887,PIC16F77,PIC16F74,PIC18F4520,PIC18F452,PIC18F4620,PIC18F4550,PIC18F4580,PIC18F45K20 etc.It can be installed on
OpenMCU Basic-A development board directly. It contains 1 user LED,Power LED,USB mini connector, crystal socket,power selection,ICSP Port ,System reset,Fuse protection,3.3V/5V Supply etc. The
CARD44-PIC-A cards is a great choice for both beginners and professionals. After testing and building the final program, this card can also be taken out of the board socket and used in your final device.

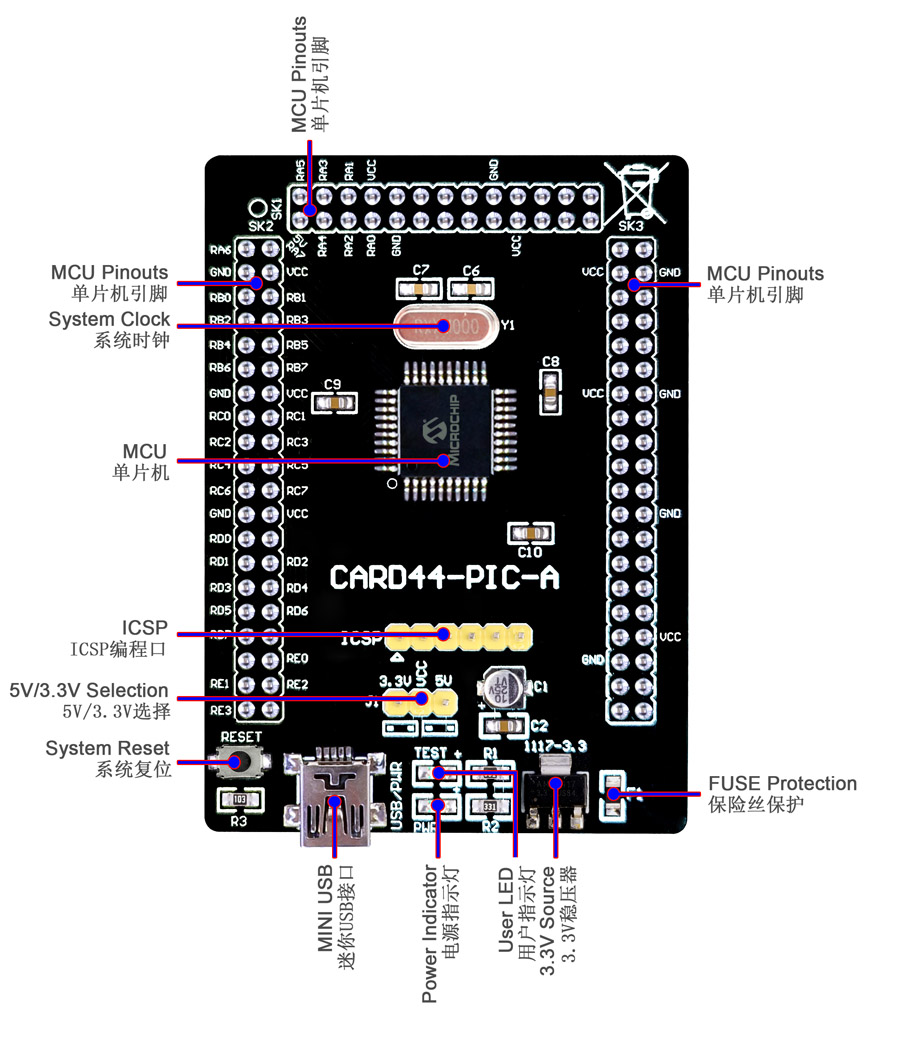

What's on Board
Download
1.
CARD44-PIC-A Card Schematic_20200820

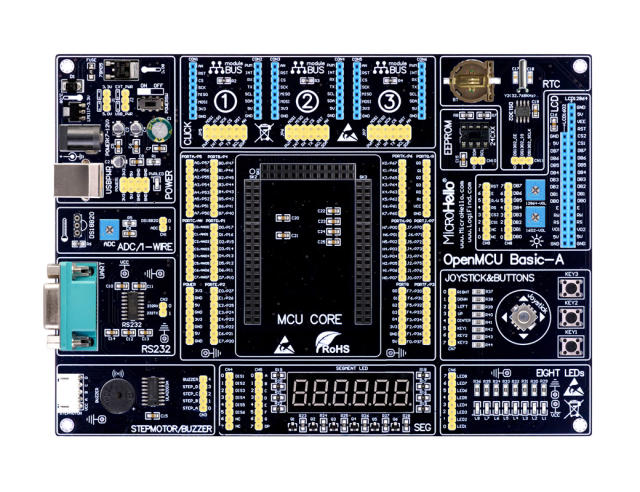

Its MotherBoard
The
OpenMCU Basic-A motherboard is designed for CARDXXX-XXX-X series MCU cards program, which makes your development easier.
