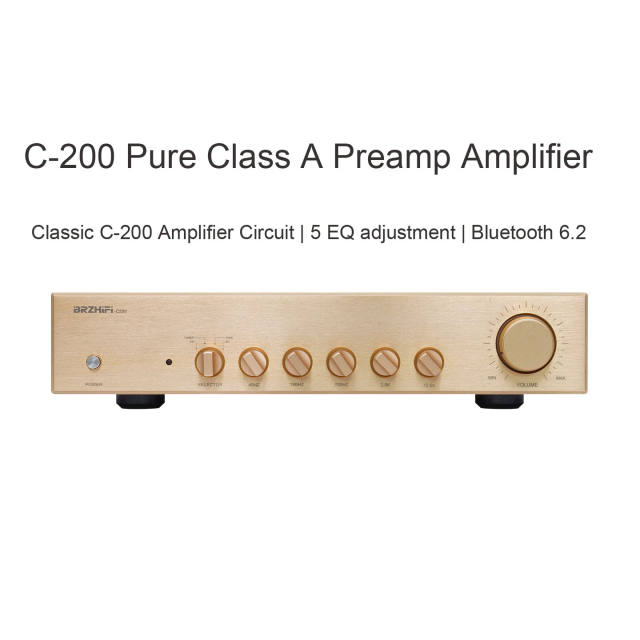

The legendary sound quality guardian born in 1973
Establishing Hi End audio standards

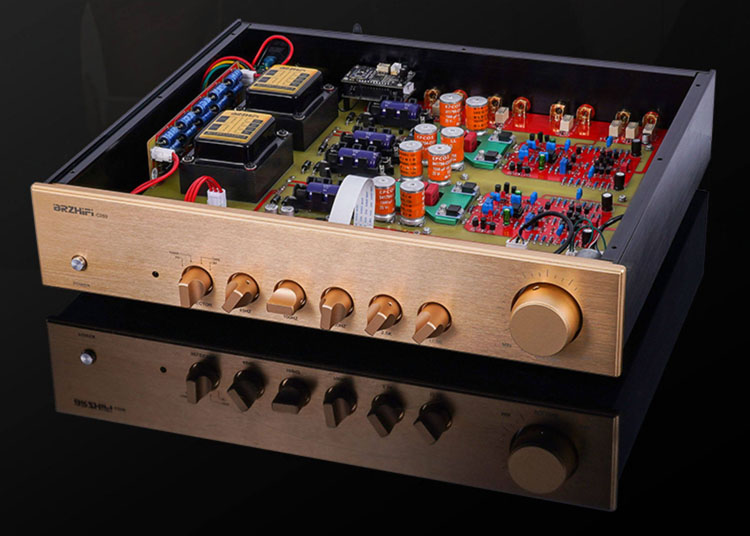

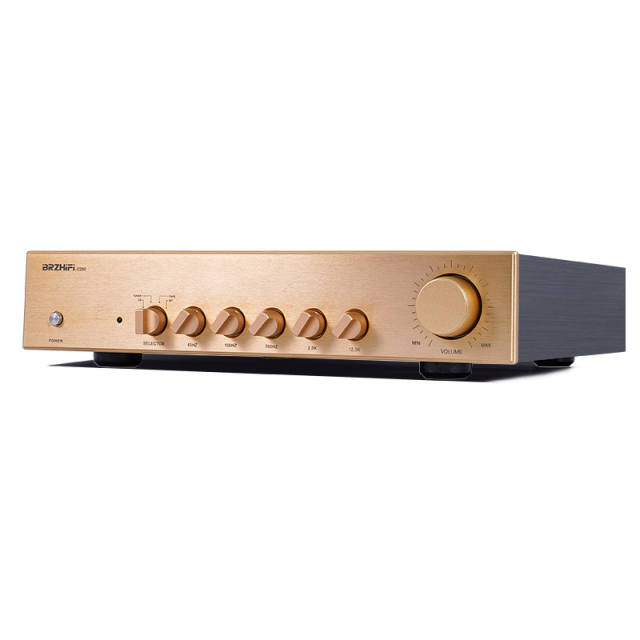

The C-200 is the flagship predecessor launched in 1973. Its design concept and circuit architecture laid the foundation for the brand's early sound, and it is still highly praised by many audiophiles today.

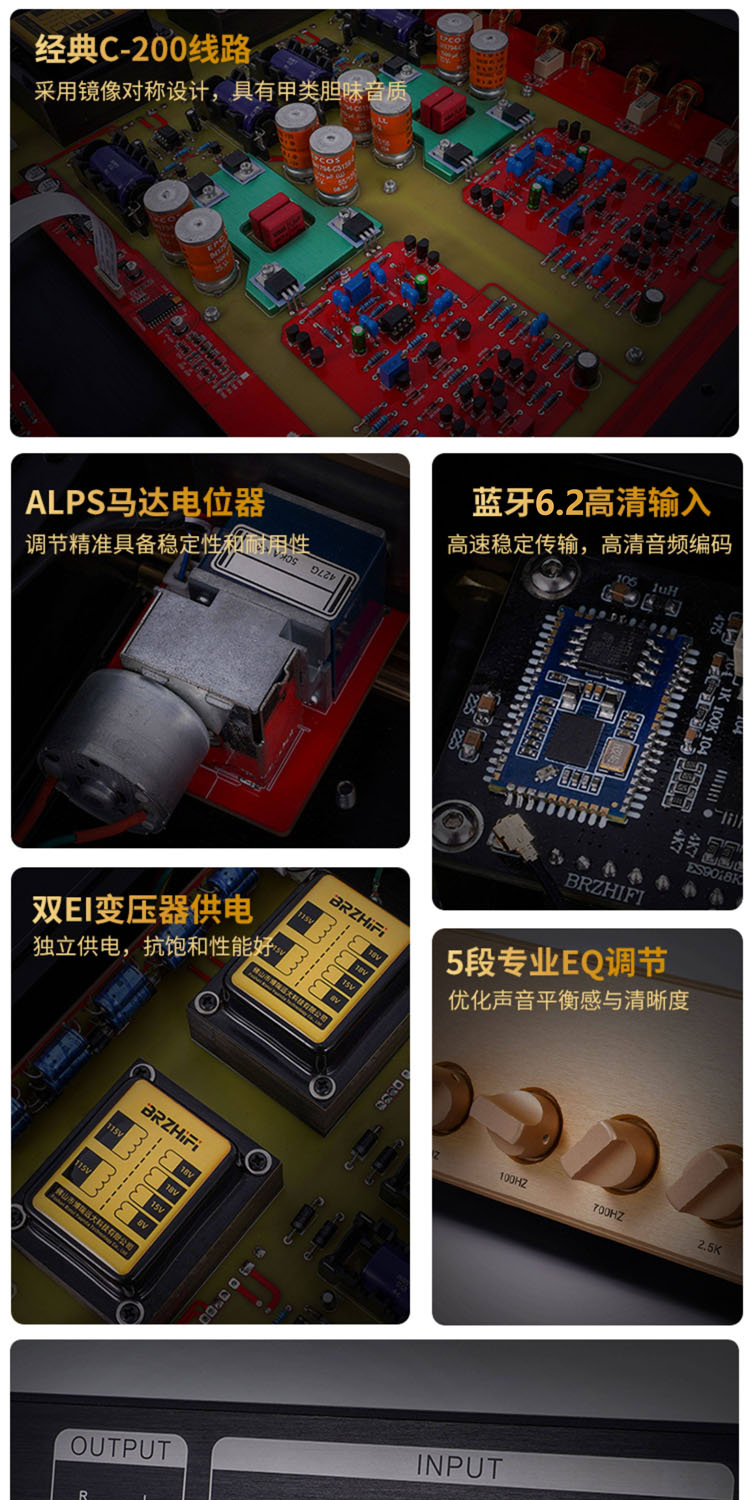

The amplification stage adopts a complementary A-class push-pull architecture with field-effect transistor buffer input and Darlington transistor output, which reduces input and output feedback through a common source common gate connection and maintains excellent linearity in the high frequency range. The characteristic of a common source and common gate connection is that there is little feedback between the input and output, and it can be used in the high-frequency range
Obtain good characteristics, high gain, good linearity, low distortion, and high signal-to-noise ratio.
It retains its signature warm, mellow, and dynamic tone, while bringing lower distortion and wider frequency response. It is not only a tribute to the golden age, but also an audio control center tailored for contemporary music enthusiasts, opening a new chapter in your high fidelity music life.

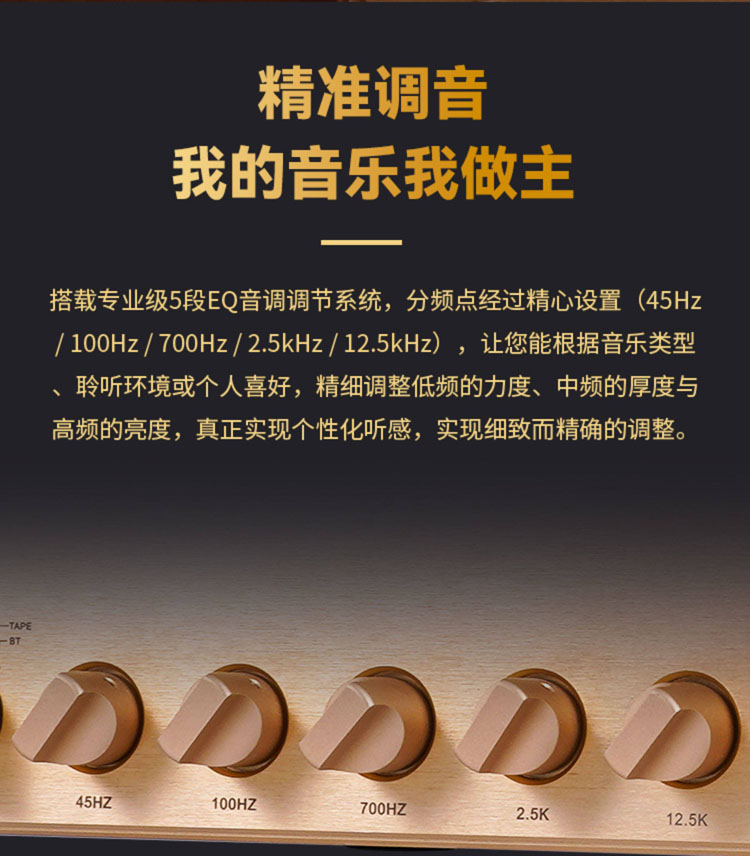

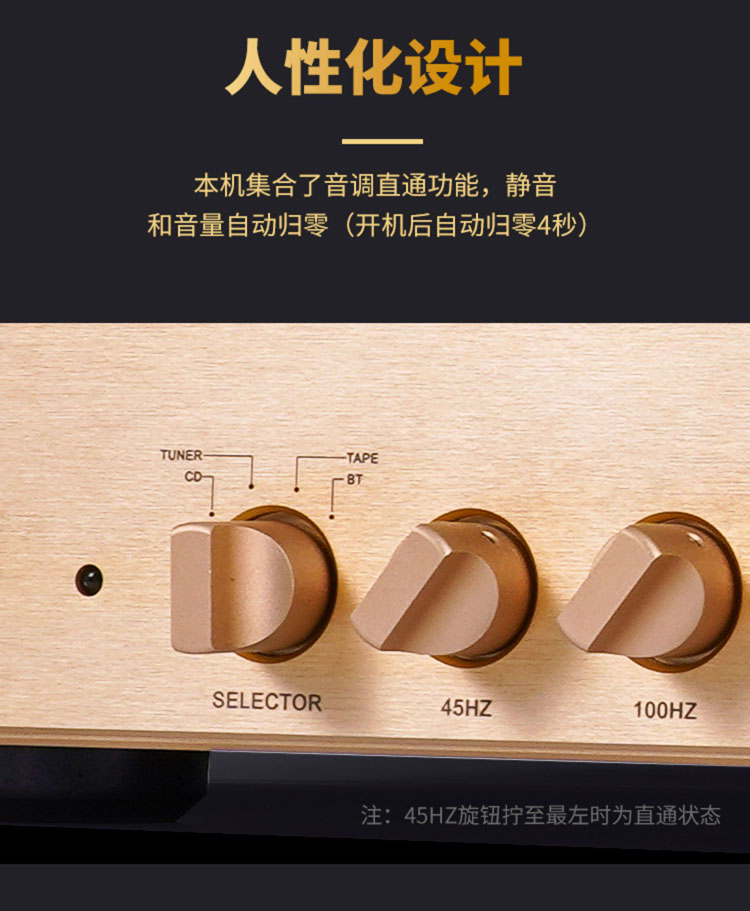

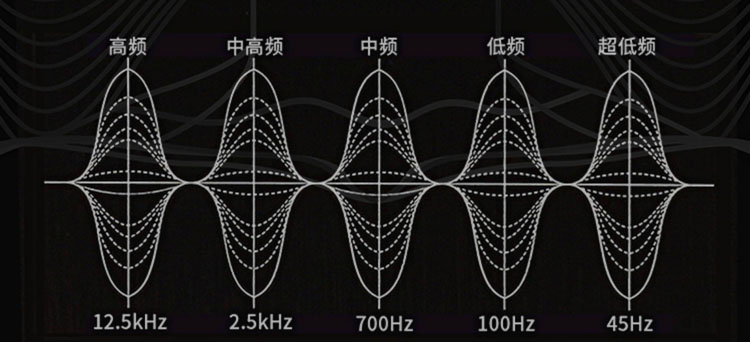

The impact of different frequency bands on sound
(1) 45Hz adjusts ultra-low frequency to enhance the shock and atmosphere of music, improve the strong feeling of music, and improve the turbidity and poor clarity of sound.
(2) Adjusting the low frequency to 100Hz can make the sound fuller, while adjusting the frequency band and high to medium range can make the sound no longer thin, making the drums and bass more full and powerful.
(3) Adjusting the mid frequency at 700Hz includes the low-frequency harmonics of most instruments, while also improving the clarity of vocals and instruments. With bass adjustment, the sound is no longer dull, responsible for the thickness and warmth of vocals and instruments.
(4) Adjust the mid to high frequency range at 2.5KHz, which affects the sense of presence (distance). Adjusting this frequency range makes people feel the distance between the sound source and the listener, improving the clarity of the music.
(5) Adjusting the high frequency to 15KHz increases the air feel and detail luster of the music, while the frequency band controls the brightness and macro brightness of the tone.
Product parameters
Product model: C200

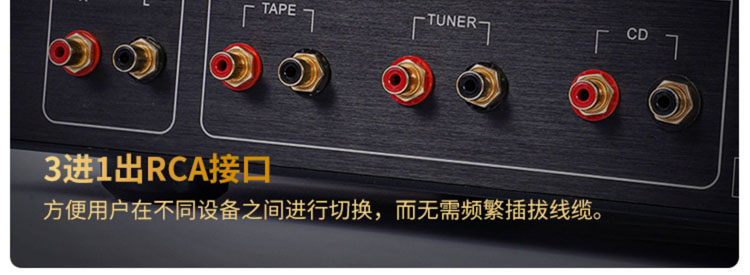

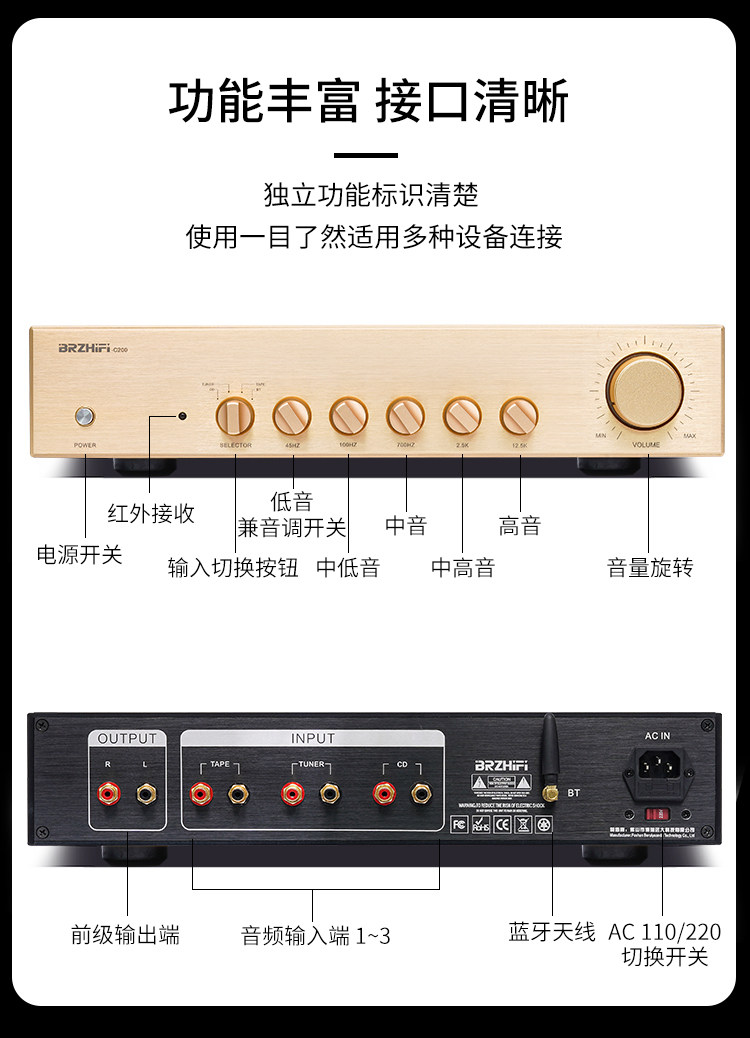

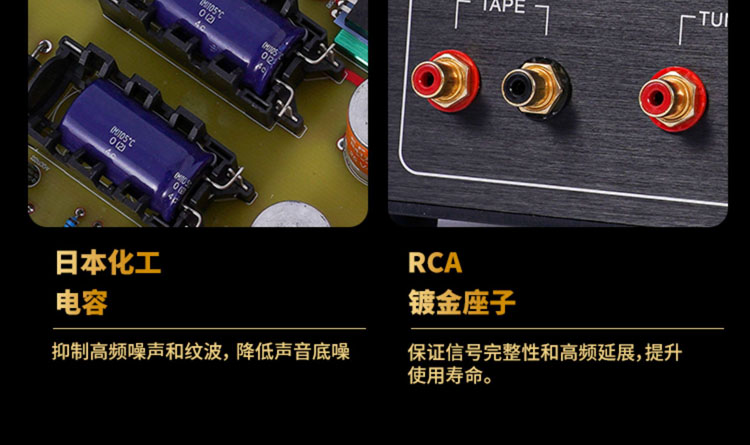

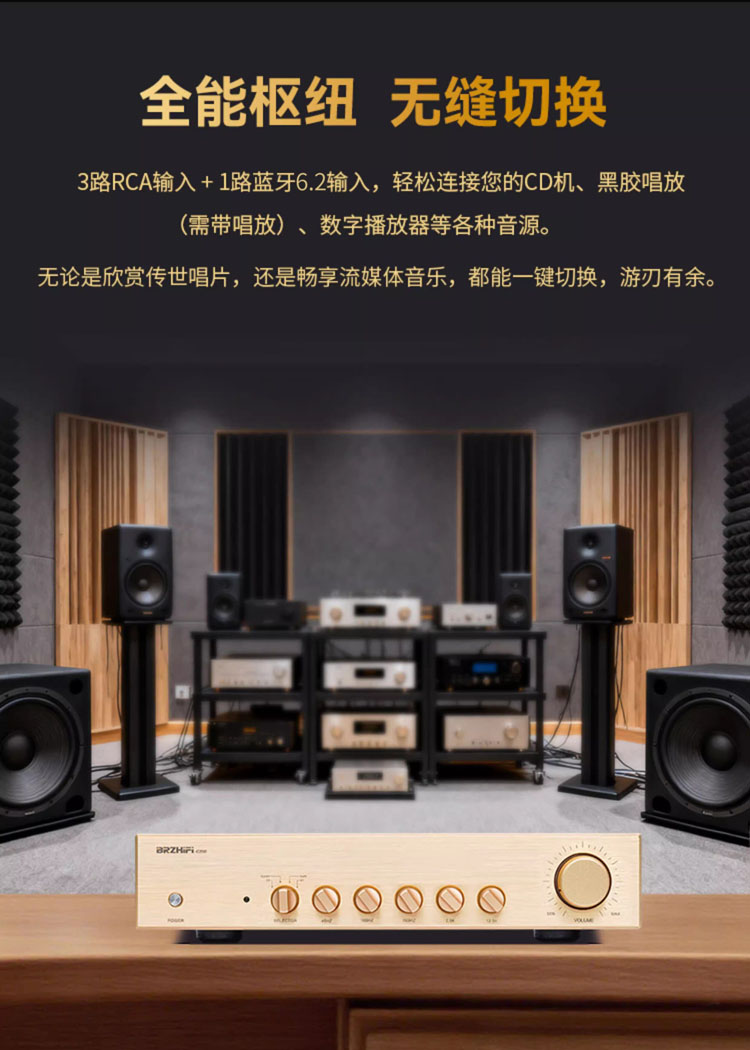

Input connection: RCA × 3 Blue 6.2 × 1
Output interface: RCA × 1
Tone adjustment: 5-stage pitch ± 12dB
（45Hz，100Hz,700Hz,2.5kHz,12.5kHz)
Input impedance: 50K Ω
Input sensitivity: 100mV~2000mV
Magnification factor: 5.6x
Frequency response: 10Hz~40kHz
Signal to noise ratio:>110dB

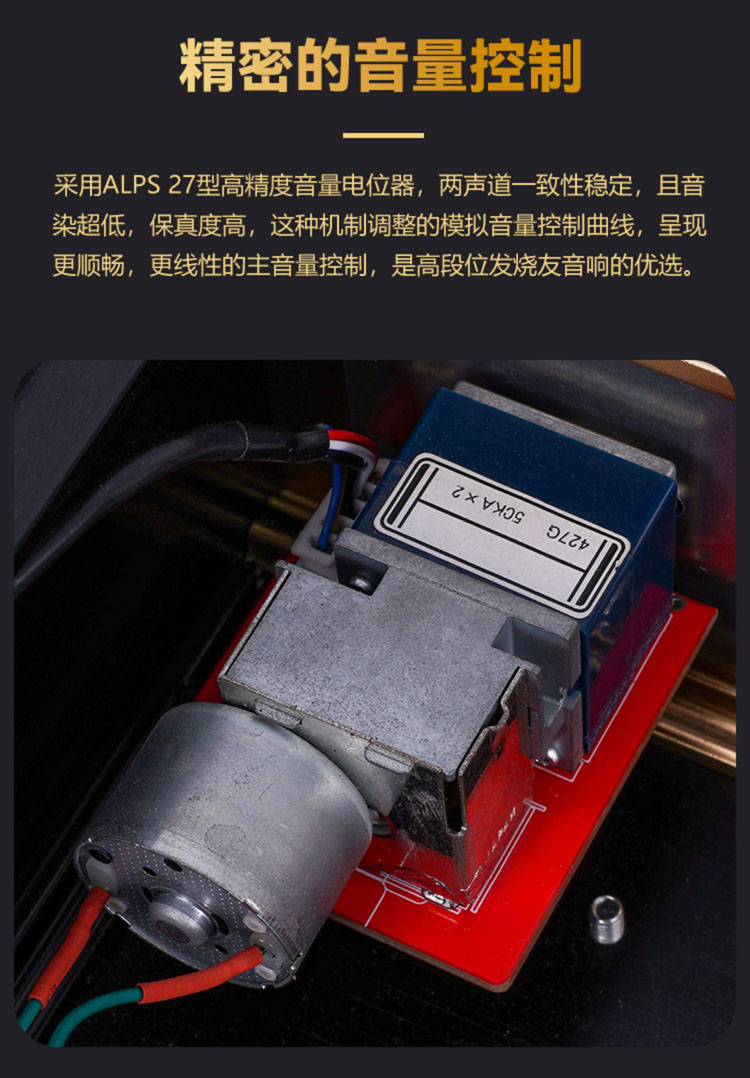

Volume control: ALPS27 motor potentiometer

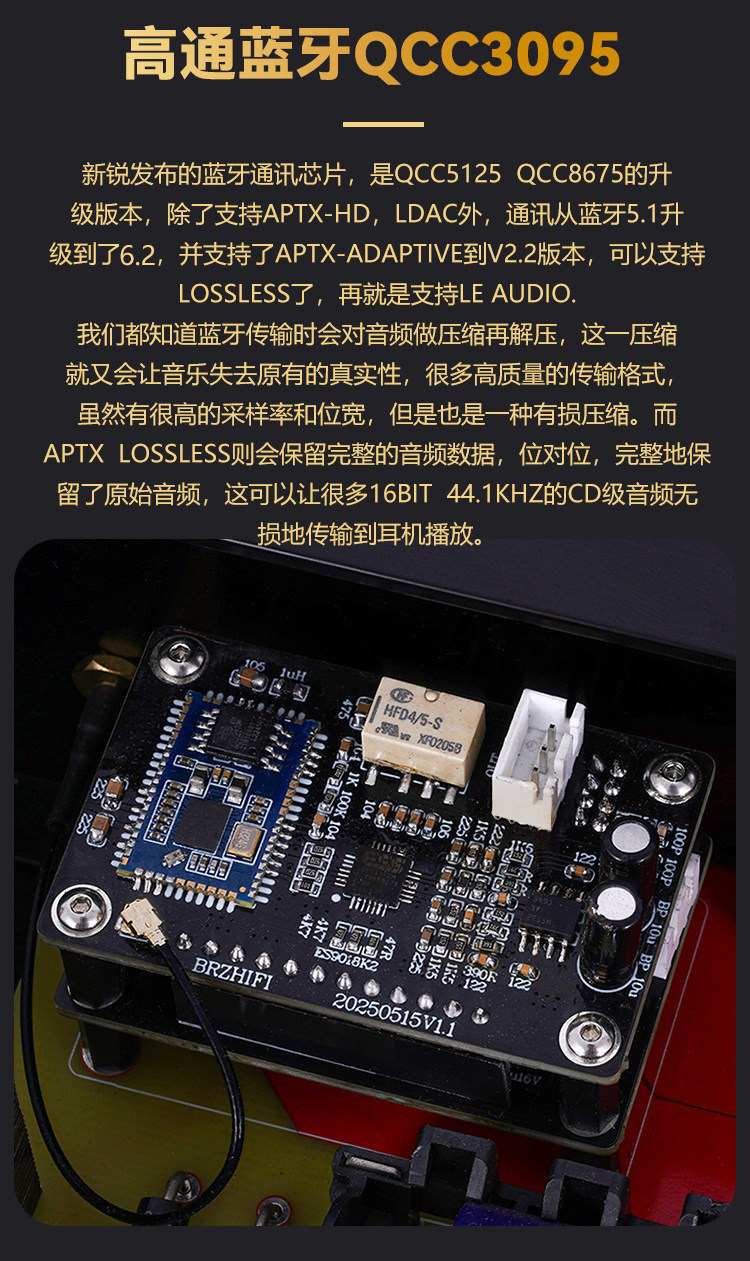

Bluetooth chip: Qualcomm QCC3095
Bluetooth protocol: AAC/SBC/APTX/APTX-LL/APTX-HD/LDAC
Supply voltage: 115V/230V~50/60Hz ± 10%
Static power consumption: 15W
Dimensions: 430mm (width) * 358mm (depth) * 80mm (height)
Weight: 7.65kg
