The product has 6 independent amplifier channels, BTL output, and excellent power and sound quality. Note that to output audio independently in 6 channels, a DVD player, Blu ray player, or decoder is required, and a computer sound card needs to output a 6-channel independent signal. If only left and right channel signals are input, the amplifier will output in 2.1 or 2.0 mode.
The A600Y and A600S have the same power and sound quality, but their difference lies in:
1, A600Y only supports passive subwoofers. A600S supports both active and passive subwoofers simultaneously.
2, A600Y subwoofer output requires independent subwoofer signal input, while A600S can input subwoofer signal separately or only input left and right channel signals.
3,The display interface of A600S is more clear at a glance, and the display screen is larger.
4, A600S is Bluetooth 5.3 A600Y is Bluetooth 5.0.
Parameter
Brand: BRZHIFI

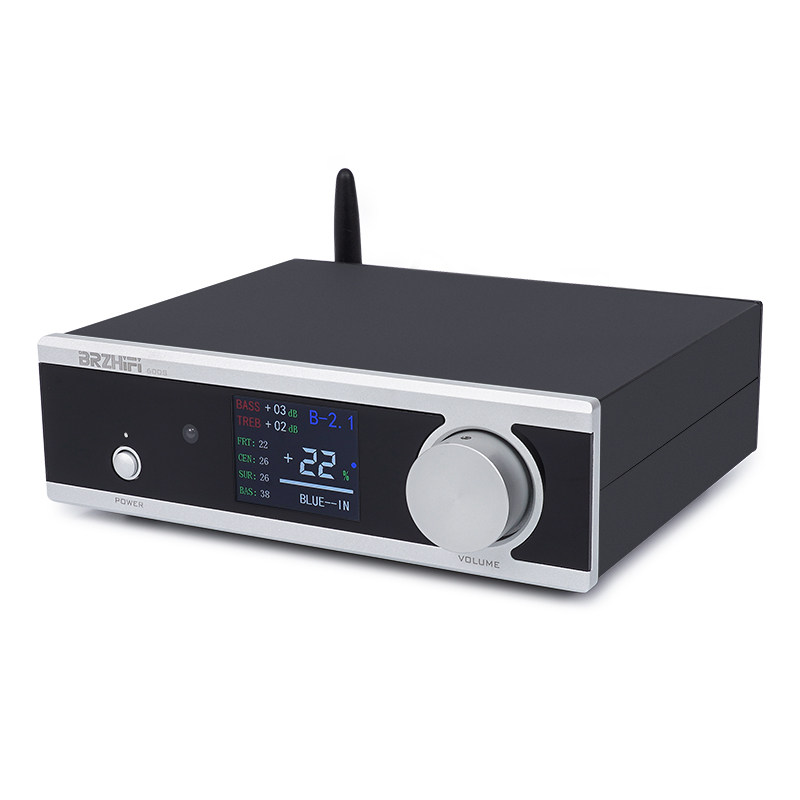

Model: A600S
Impedance: 4-8 Ω
Front main channel: 50W+50W (recommended 3-8 inche speaker)
Surround channel: 50W+50W (recommended 3-8 inche speaker)

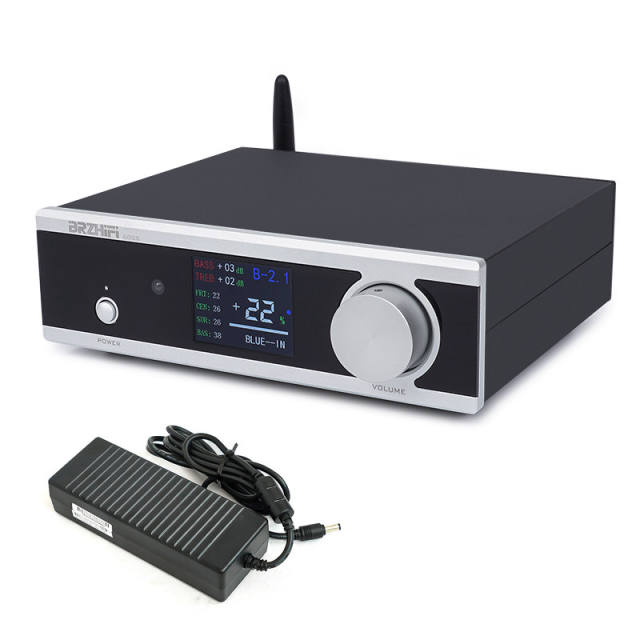

Power supply: DC24V
Center channel: 50W (recommended 3-8 inches)

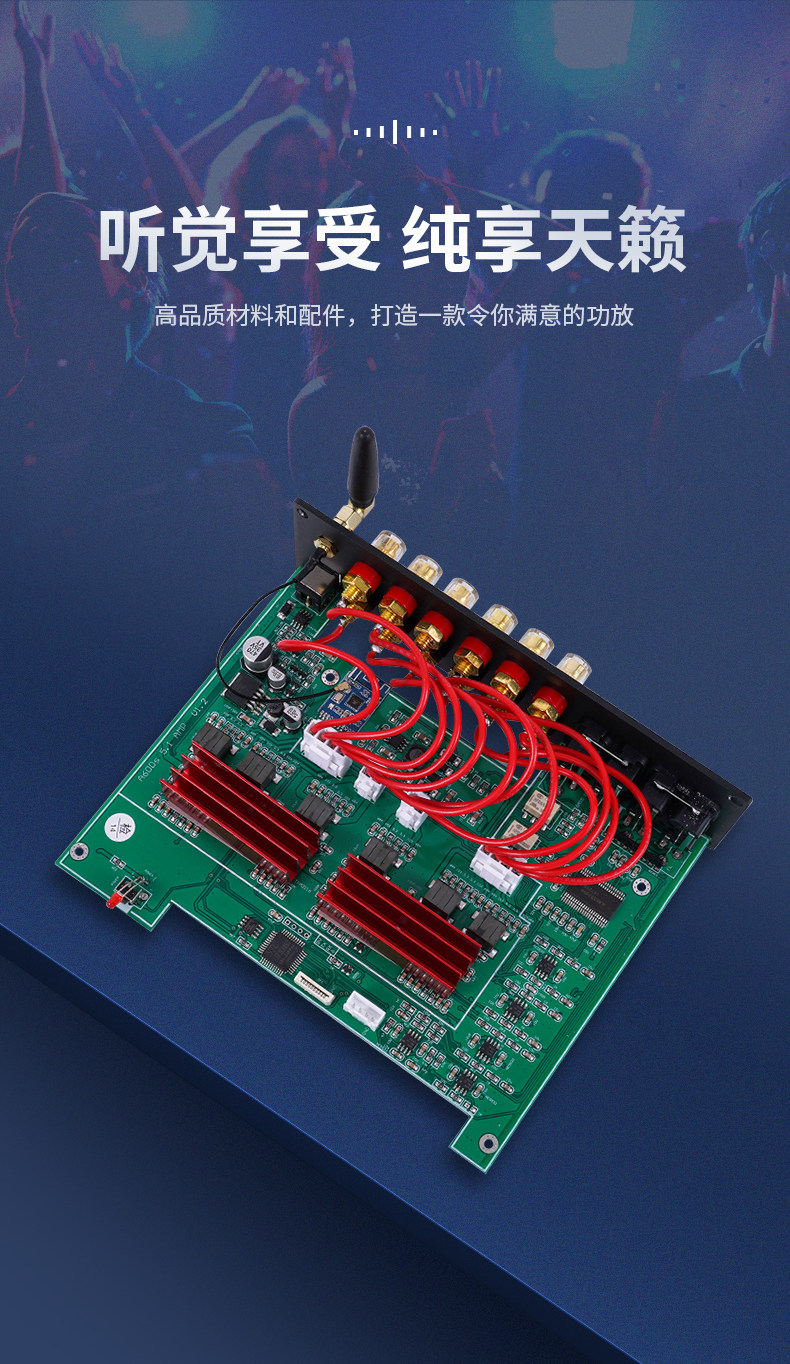

Power IC: TPA3116
Bass channel: 100W (recommended 5-10 inches)
Signal to noise ratio:>102dB
Harmonic distortion: 0.01% (@ 1Khz)
Frequency response: Front channel: 10Hz~40kHz
Surround channel: 10Hz~40kHz
Center channel: 10Hz~40kHz
Bass channel: 10Hz~180Hz
High pitch adjustment: Front channel ± 10dB (± 2dB)
Bass adjustment: Front channel ± 10dB (± 2dB)

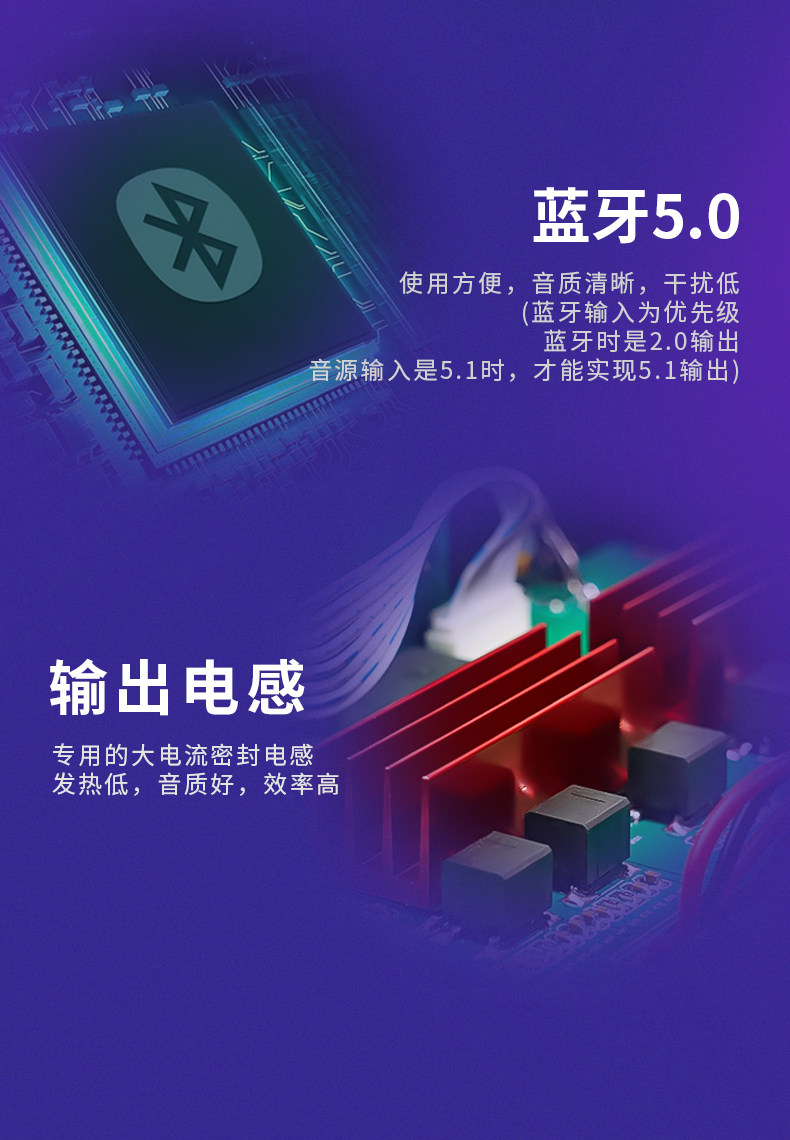

Bluetooth: 5.0, supports 44.1~48kHz
Bluetooth Protocol: SBC
Size: 178 * 145 * 50 (mm)
Weight: 0.94KG
