Preface

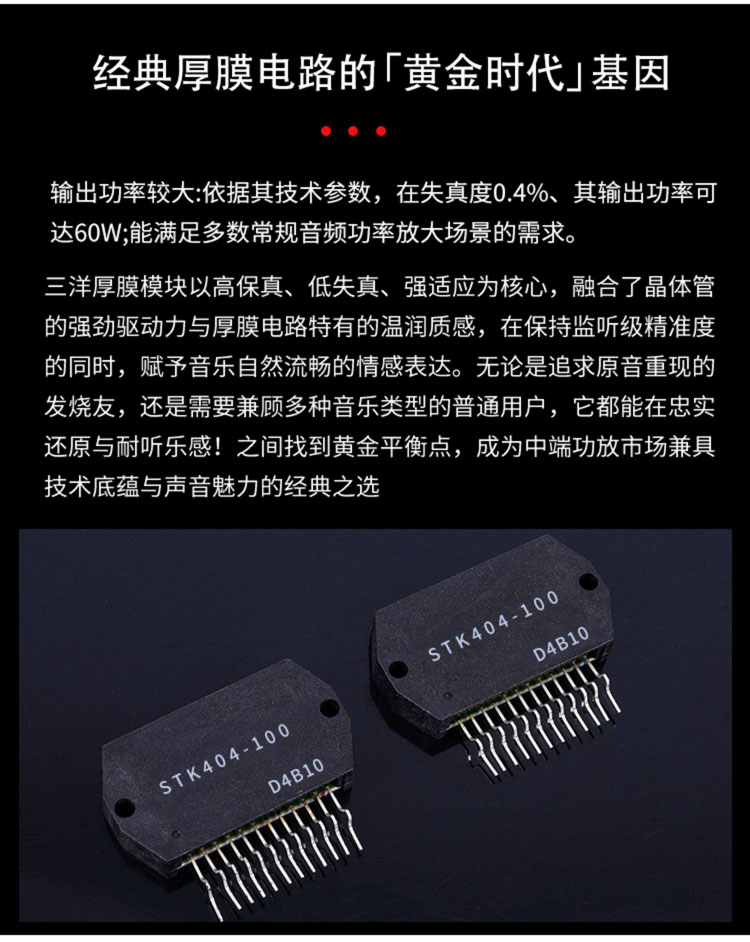

The STK series thick film integrated circuit (thick film amplifier module) is a classic product launched by Sanyo Electric in Japan, widely used in the field of audio amplification. Its core features include:
High integration, simplified circuit design
The thick film integrates the core components required for power amplification, including transistors, resistors, capacitors, and protection circuits such as overcurrent and overheat protection, condensing complex amplifier circuits into one module.
Stable performance and good consistency
Adopting thick film technology (fixing components on ceramic substrates through printing, sintering, etc.), the component parameters are less affected by external environments (such as temperature and humidity), and undergo strict testing before leaving the factory. The performance consistency of modules of the same model is high. Compared to power amplifier circuits built with discrete components, it can better ensure the stability of parameters such as output power and distortion.
Product Parameters

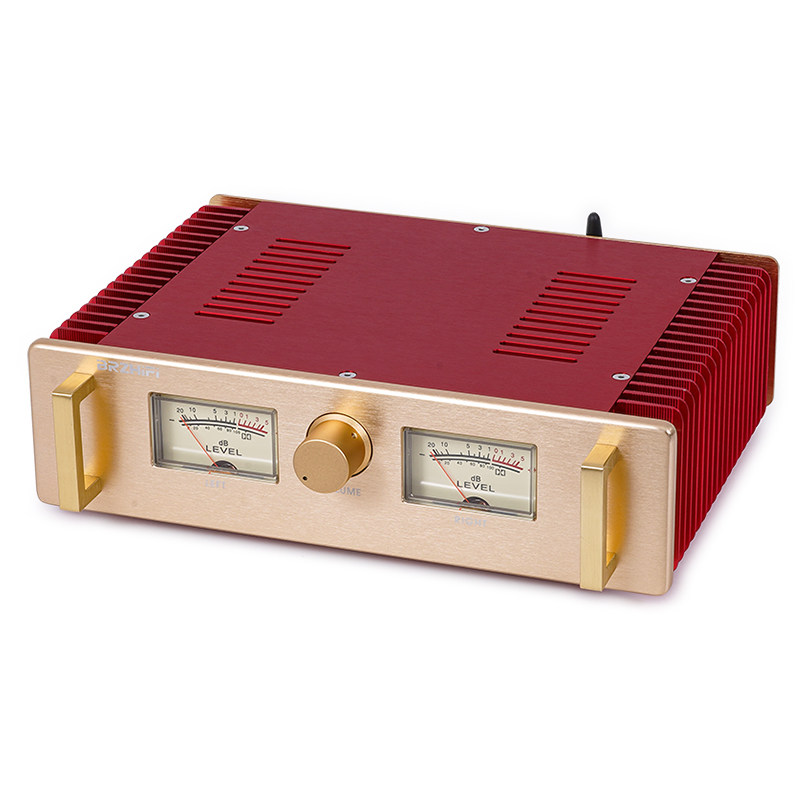

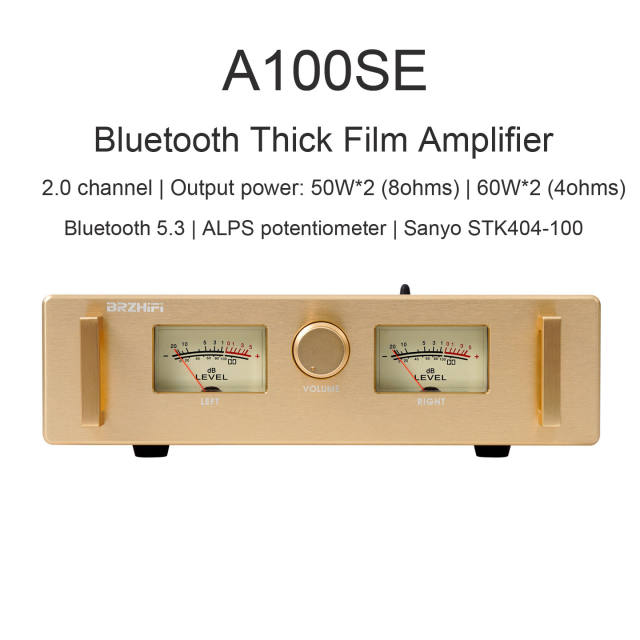

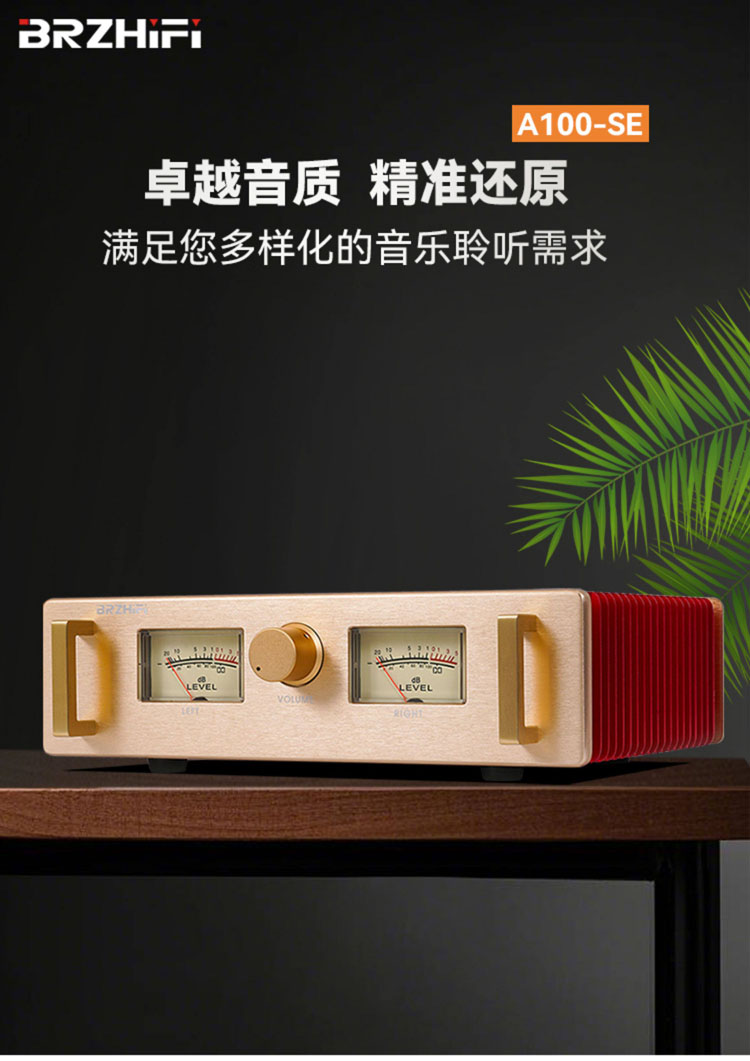

Model:A100-SE
Size:300×210×90mm (width * depth * height)
Weight:About 5.6KG
Input voltage:AC220V (customizable to 110V) (50/60Hz)
Frequency response:20Hz-40kHz±1dB

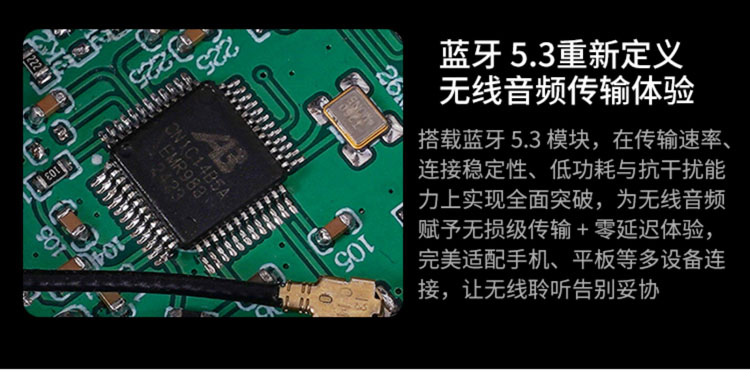

Input signal:RCA analog input / Bluetooth
Output power:60W+60W4Ω50W+50W8Ω
Impedance range:4-8Ω
