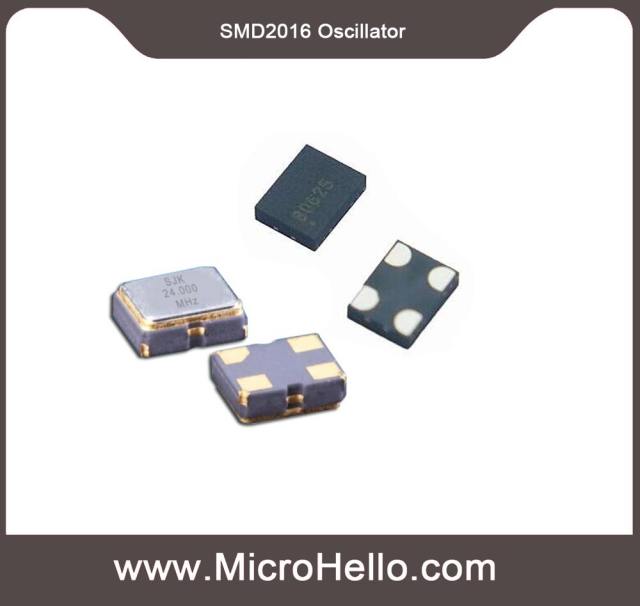

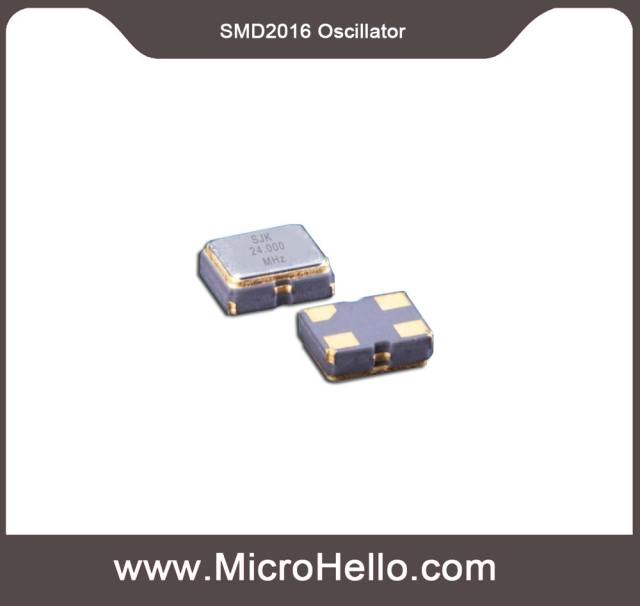

5pcs SMD2016 4MHz~54MHz oscillator OSC 2.0mm*1.6mm SMD

Name: 5pcs SMD2016 4MHz~54MHz oscillator OSC 2.0mm*1.6mm SMD
Brand: MicroHello
SKU: 2016-osc-40
Price: 6.4 USD
Availability: InStock

SKU: 2016-osc-40

0.0 (0)

0 Sold

$6.40 ~~$12.00~~

SMD2016 4MHz~54MHz oscillator OSC 2.0mm*1.6mm SMD

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

qty:

5pcs
Frequency:

2MHz

2.048MHz

2.4576MHz

3.072MHz

3.6864MHz

8MHz

10MHz

12MHz

12.288MHz

18.432MHz

19.2MHz

20MHz

22.5792MHz

24MHz

24.576MHz

25MHz

27MHz

26MHz

28.636MHz

29.5MHz

30MHz

31.250MHz

33.33MHz

33.333MHz

33.33333MHz

34MHz

35MHz

32MHz

38.4MHz

40MHz

48MHz

50MHz

52MHz

54MHz

56.5MHz

64MHz

80MHz

96MHz

100MHz

125MHz

128MHz

Other Frequency(Contact us)

Quantity:

Add to Favorites (0)

Description

Features
● 2016 size, low profile of 0.75mm
● Frequency range from 4MHz to 54MHz
● Low voltage operation
● Low current consumption
● 3-state function
● Automatic mounting and reflow soldering
● Application for telecommunications, GPS,
Smart phone, Cellular, NFC, etc.
● RoHS Compliant /Pb Free

Item /Type	1N (SMD 2016 Crystal Oscillators)
Output Type	CMOS
Output Load	15pF, or specify
Supply Voltage	3.3V (1.8V, 2.5V, available)
Frequency Range	4~54MHz
Frequency Stability	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.1Vdd /0.9Vdd
Rise (Tr) /Fall (Tf) Time	5ns Max.
Supply Current	5mA Max.
Symmetry	45~55%
Start-up Time	5ms Max.
Period Jitter	40 pSec
Phase Jitter	1 ps Max.
Aging (at 25℃)	3ppm /Year Max.
Packing Unit	3000pcs. /Reel
