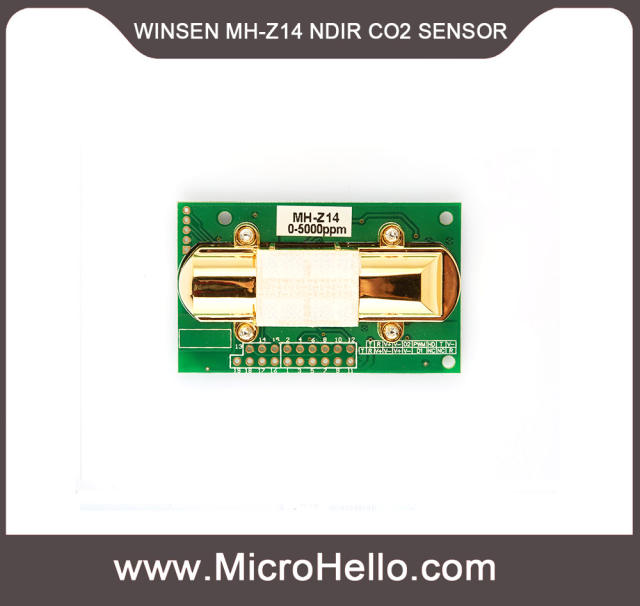

WINSEN MH-Z14A NDIR CO2 SENSOR FOR CARBON DIOXIDE DETECTION 0~5%VOL optional

Name: WINSEN MH-Z14A NDIR CO2 SENSOR FOR CARBON DIOXIDE DETECTION 0~5%VOL optional
Brand: MicroHello
SKU: WINSEN-0001
Price: 38 USD
Availability: InStock

SKU: WINSEN-0001

0.0 (0)

0 Sold

$38.00 ~~$110.00~~

Detection Range: 0~5%VOL optional
• Working Voltage: 4.5 V ~ 5.5V DC
• Output Signal: UART, analog voltage signal, PWM wave

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Principle Introduction:
MH-Z14A NDIR Infrared gas module is a common type, small size sensor, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature compensation; and it has digital output, analog voltage output, and PWM output. This commons type infrared gas sensor is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design and superior circuit design.

Applications :
HVAC refrigeration equipment, air quality monitoring equipment, fresh air system, air purification equipment, smart home, and schools.

Technical parameters :
Tips:For more parameter information, please refer to the latest manual provided by salesman.

Working voltage	4.5 V ~ 5.5V DC
Average current	<60mA(@5V input)
Peak current	150 mA(@5V input)
Interface level	3.3 V(5V compatible)
Measuring range	0~10000ppmoptional(refer to table 2)
Output signal	Serial Port (UART, TTL level)
	PWM
	Analog output(DAC), 0.4-2V
Preheat time	3min
Response Time	T90<120s
Working temperature	0℃ ~ 50℃
Working humidity	0~90%RH(no condensation)
Weight	15g
Lifespan	>5 year

Target Gas	Measuring Range	Accuracy
Carbon Dioxide (CO2)	0~2000ppm	±(50ppm +3%reading value)
	0~5000ppm	±(50ppm +3%reading value)
	0~10000ppm	±10% reading value
