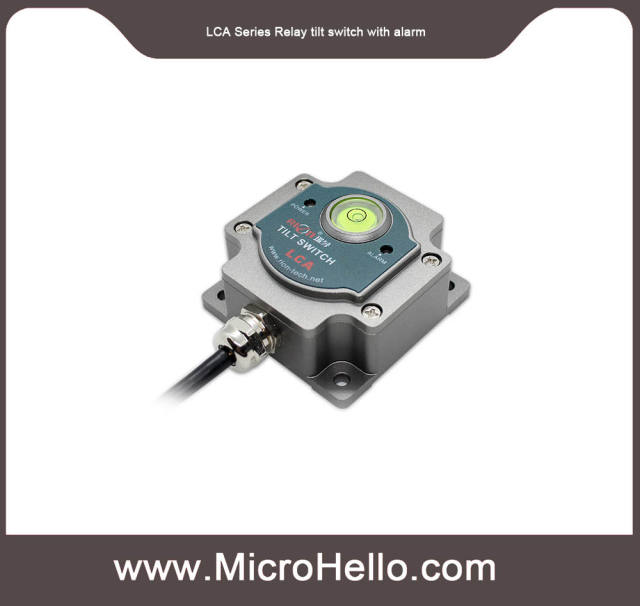

LCA341 Series Relay tilt switch Single axis with alarm
●RS232 set alarm angle
●resolution: 0.01°
●wide working temp.:-40~+85℃
●high anti-vibration>2000g
●DC 9~36v input
●Switch/replay output
General Description
LCA341A series a low cost tilt switch developed by RION for application like level safety alarming and platform level monitor and alarm. There is relay output circuit inside. Alarm threshold value is pre-stable. when the inclination exceed set alarm value, it will output relay output signal(drive current 1A) to drive the solenoid valve hydraulic system or drive buzzer or alarming light for the safety of platform. Its main function is to monitor and alarm the(dual axis or single axis) inclination of platform automatically. It is well-designed, the temperature and linearity are compensated. It has short-circuit, high voltage, surge protection etc. And all its components meet the requirement of industry application.
Technical data
Parameter |
LCA341A-N015 |
unit |
Measuring range | ±15 | ° |
Measuring axis | X,Y | |
Resolution | 0.05 | ° |
Absolute accuracy | 0.1 | ° |
Long-term stability | 0.05 | |
Zero temp. coeffiecient | -40~85° ±0.006 | °/℃ |
Temp. Sensitivity coefficient | -40~85° ≤100 | ppm/℃ |
Power on time | 0.1 | S |
Response time | 0.2 | s |
Electromagnetic compatibility | Per EN61000 and GBT17626 | |
MTBF | ≥50000hours/time | |
IR | ≥100mge | |
Impact resistance | 100g@11ms、3 times/axis(half sinusoid) | |
Anti-shock | 10grms、10~1000Hz | |
waterproof | IP67 | |
cable | 1m, durable, grease proof, wide temperature, shield cable, 4 x 0.4 mm2 | |
weight | 120g(exclude cable) |
DIMENSION
Electronic Characteristics
Color definition | Single axis with 1 way output | Single axis with 2 way | dual axis with 1 way | dual axis with 2 way | |
red | Power positive | Power positive | Power positive | Power positive | |
black | GND | GND | GND | GND | |
green | Zero clear A | Zero clear A | Zero clear A | Zero clear A | |
brown | Zero clear B | Zero clear B | Zero clear B | Zero clear B | |
purple | TXD | TXD | TXD | TXD | |
yellow | X alarm | +X alarm | XY alarm | X alarm | |
blue | NC | -X alarm | NC | Y alarm | |
Orange | RXD | RXD | RXD | RXD |
Electrical Connection
Parameters |
Conditions |
Min |
Standard |
Max |
Unit |
Power supply | Standard | 9 | 12、24 | 36 | V |
Alarm output current | 1000 | mA | |||
Working current | No-load | 40 | mA | ||
Working temperature | -40 | 85 | ℃ | ||
Store temperature | -55 | 125 | ℃ |
