Original intention of R&D
The X20-PRO fever grade digital combined amplifier integrates high power, high resolution, and multiple functions, designed with ingenuity for audio enthusiasts. Solve the four major pain points of weak thrust, wireless sound quality loss, complex debugging, and cumbersome operation of traditional amplifiers in one fell swoop.

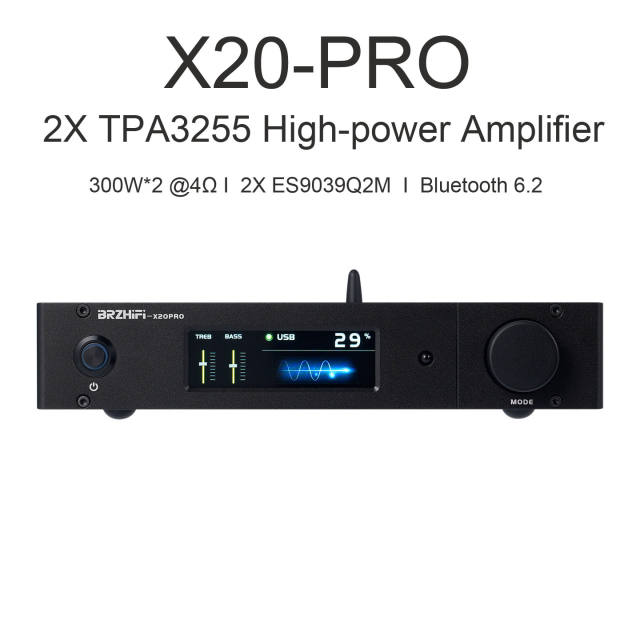

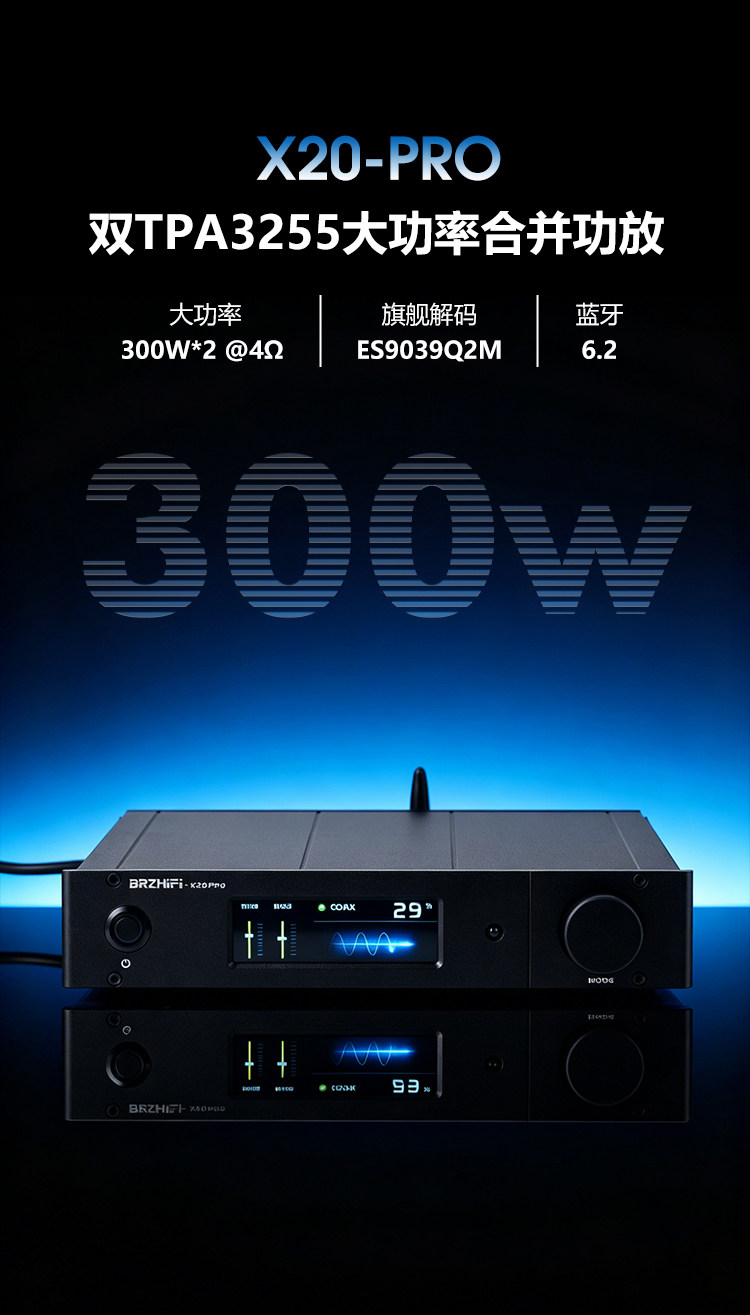

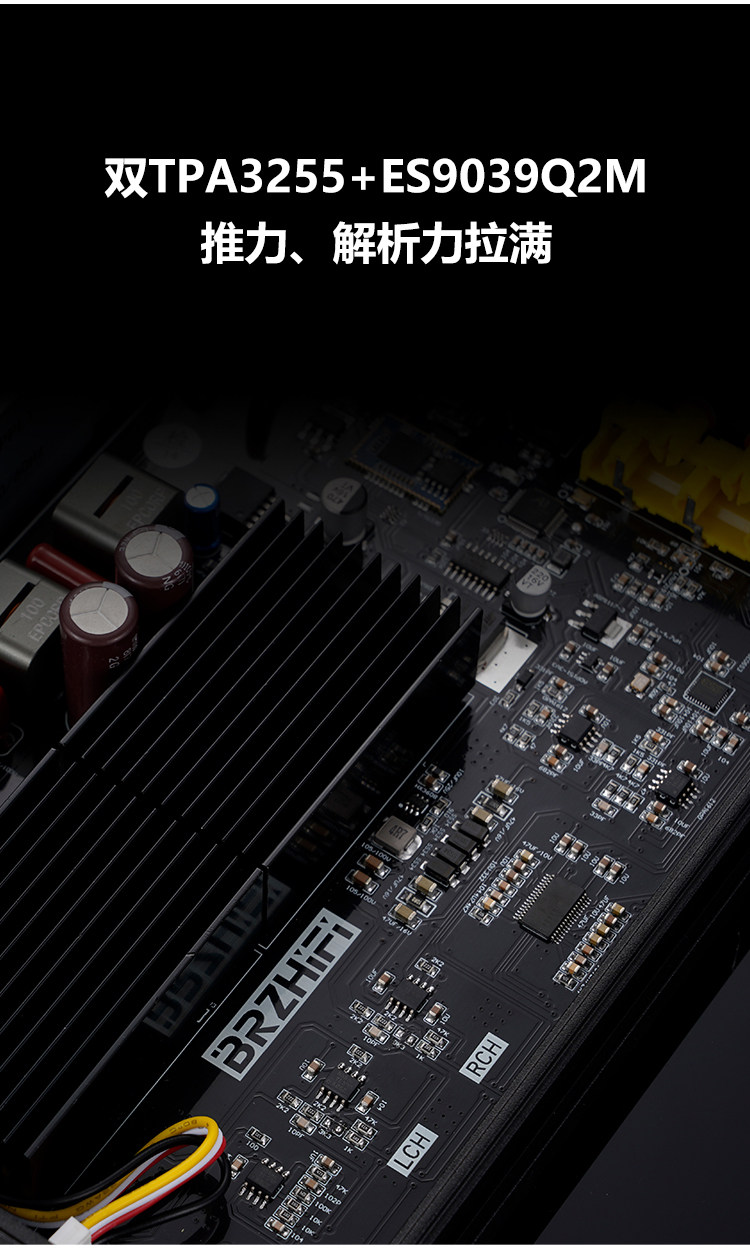

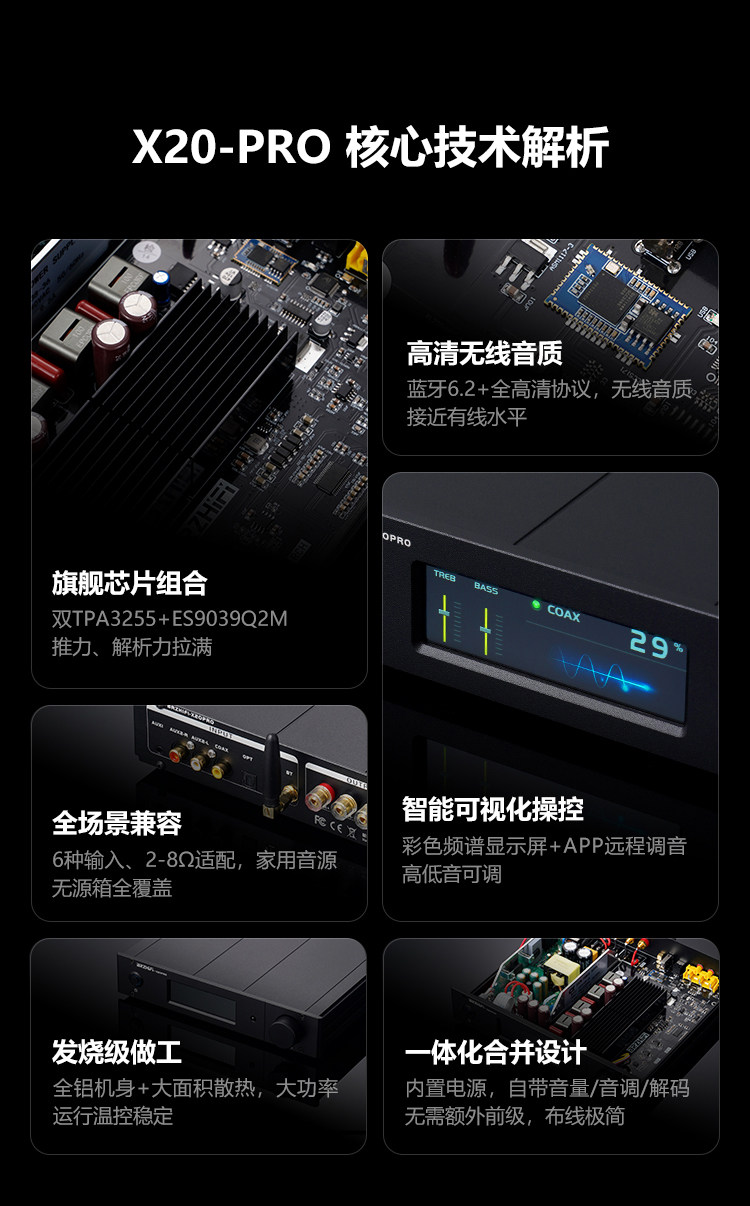

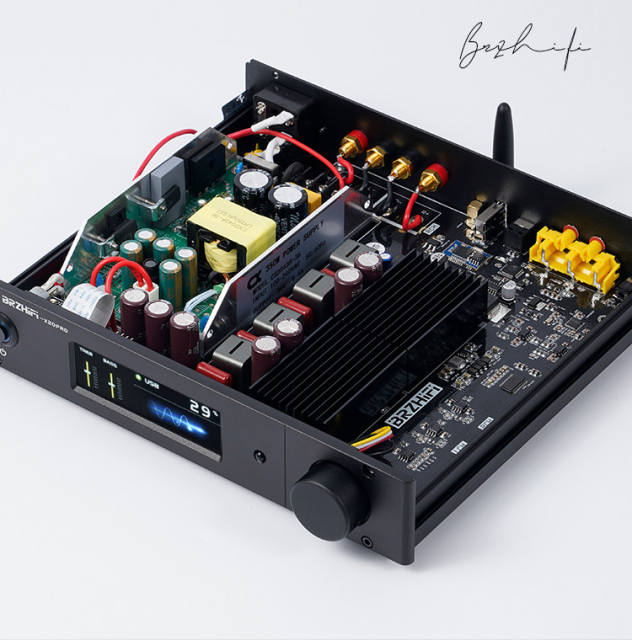

Equipped with dual TPA3255 amplifier chips, dual channel 300W surging thrust, and ES9039 flagship decoding chip, it accurately reproduces delicate sound lines with outstanding resolution. Standard Bluetooth 6.2+LDAC high-definition transmission protocol, wireless connection can also enjoy pure Hi Fi sound effects.

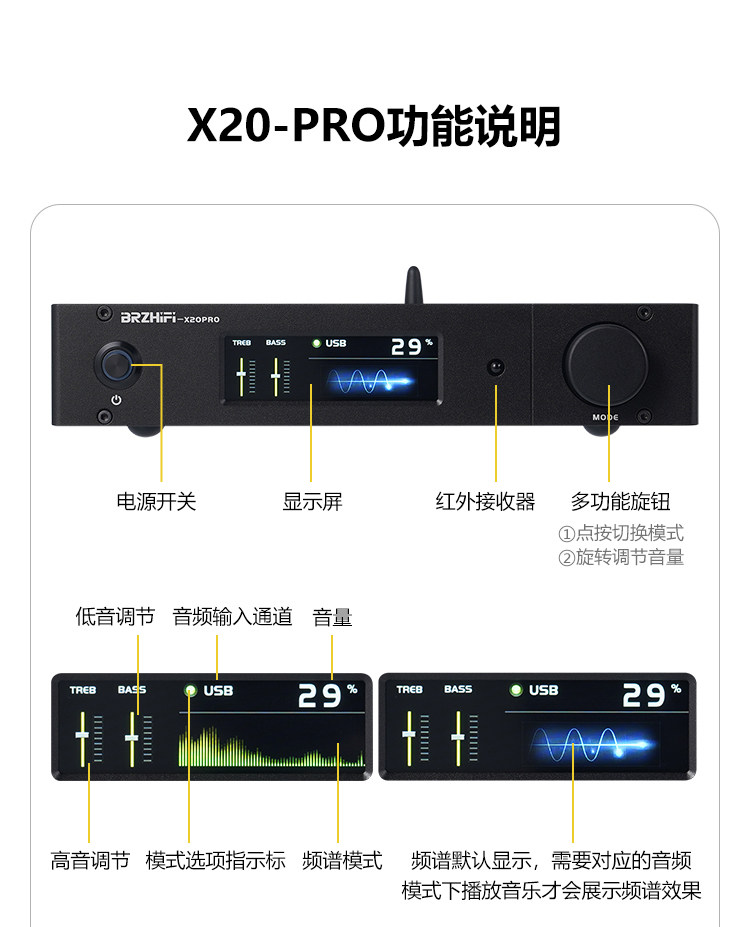

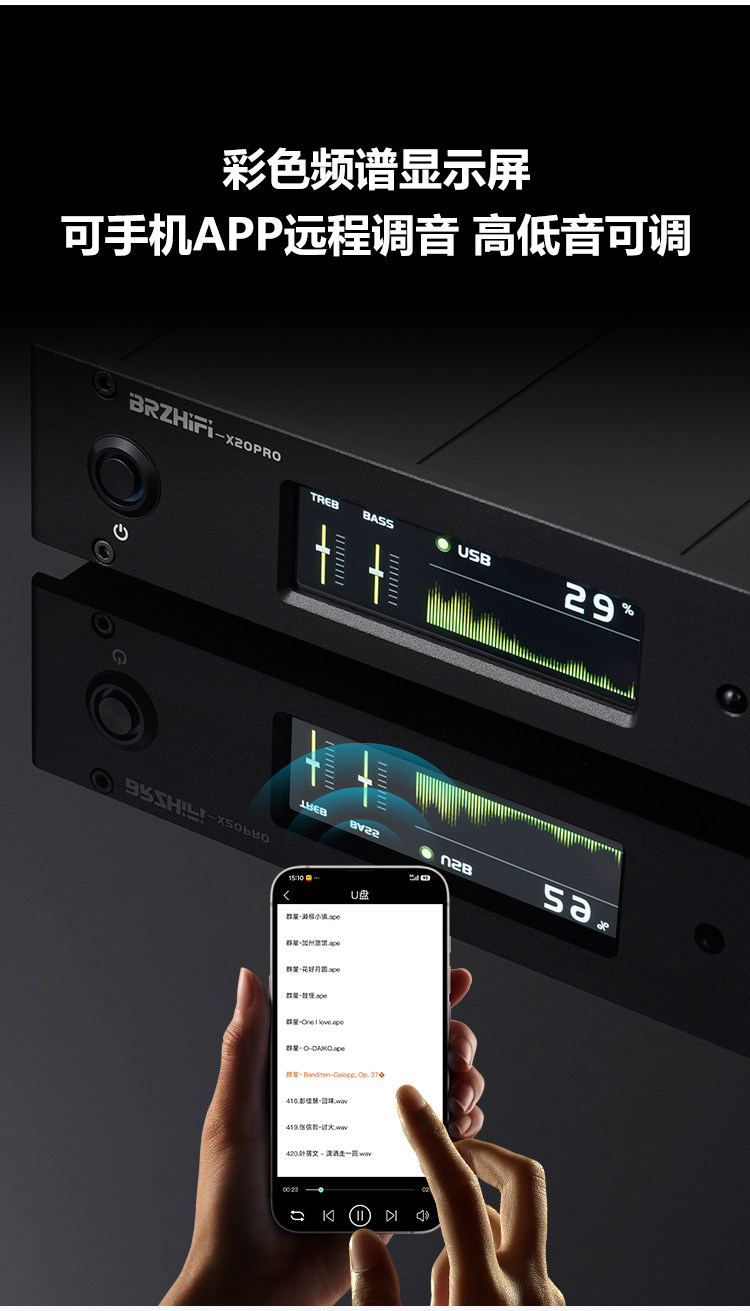

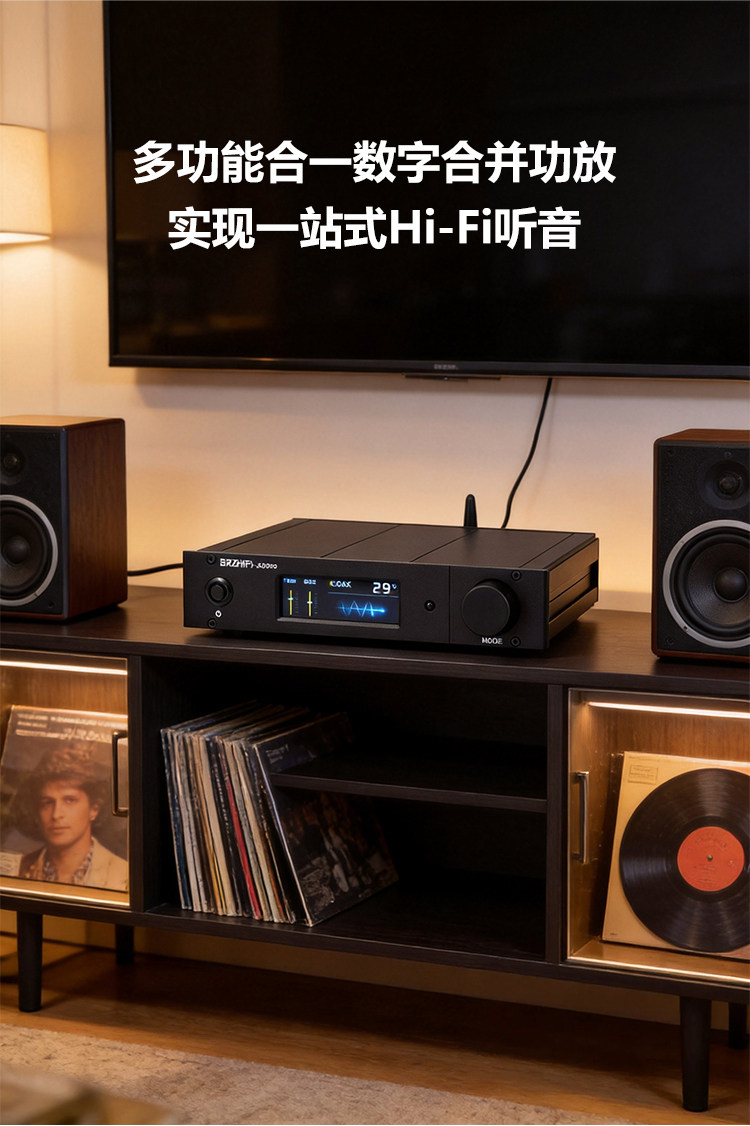

Equipped with a color spectrum display screen, no additional front-end equipment is required, and the audio source and speakers can be directly connected for use. Easy to drive home bookshelf boxes and floor standing speakers, balancing fever tasting and daily home listening, it is the preferred all-in-one amplifier.
Product parameters
Brand:BRZHIFI
Product Model:X20-PRO

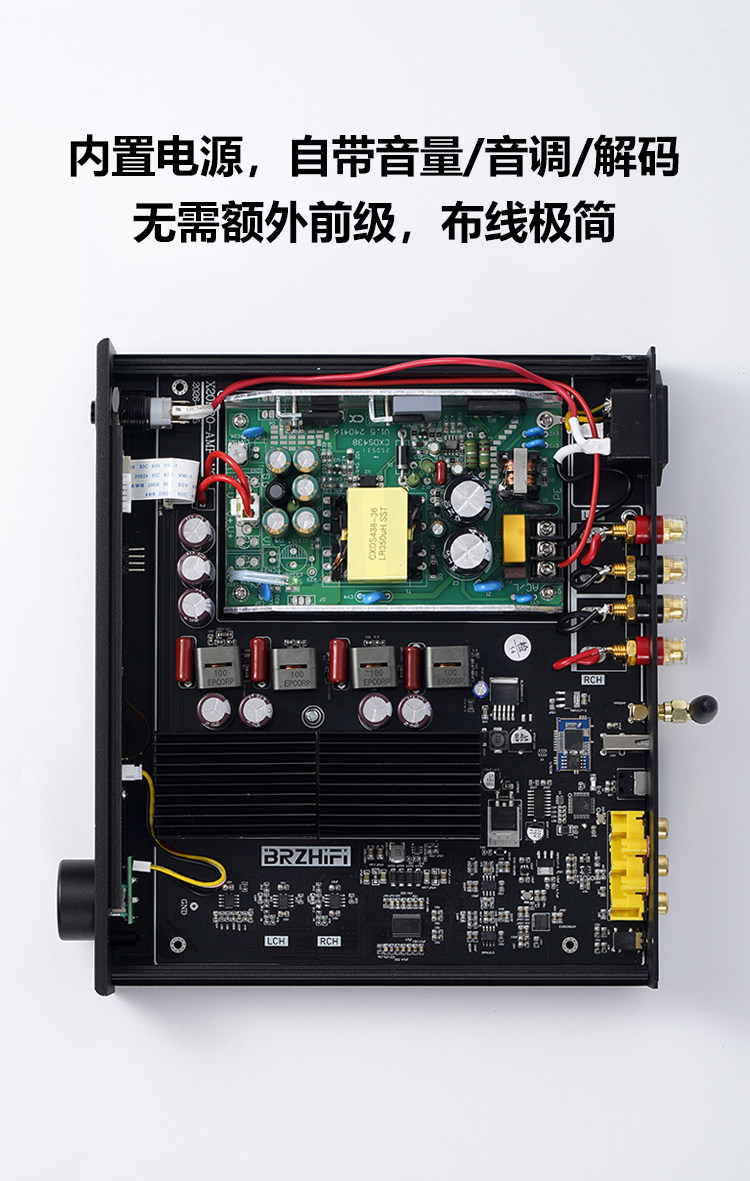

Chipset:TPA3255×2+ES9039Q2M+QCC3095

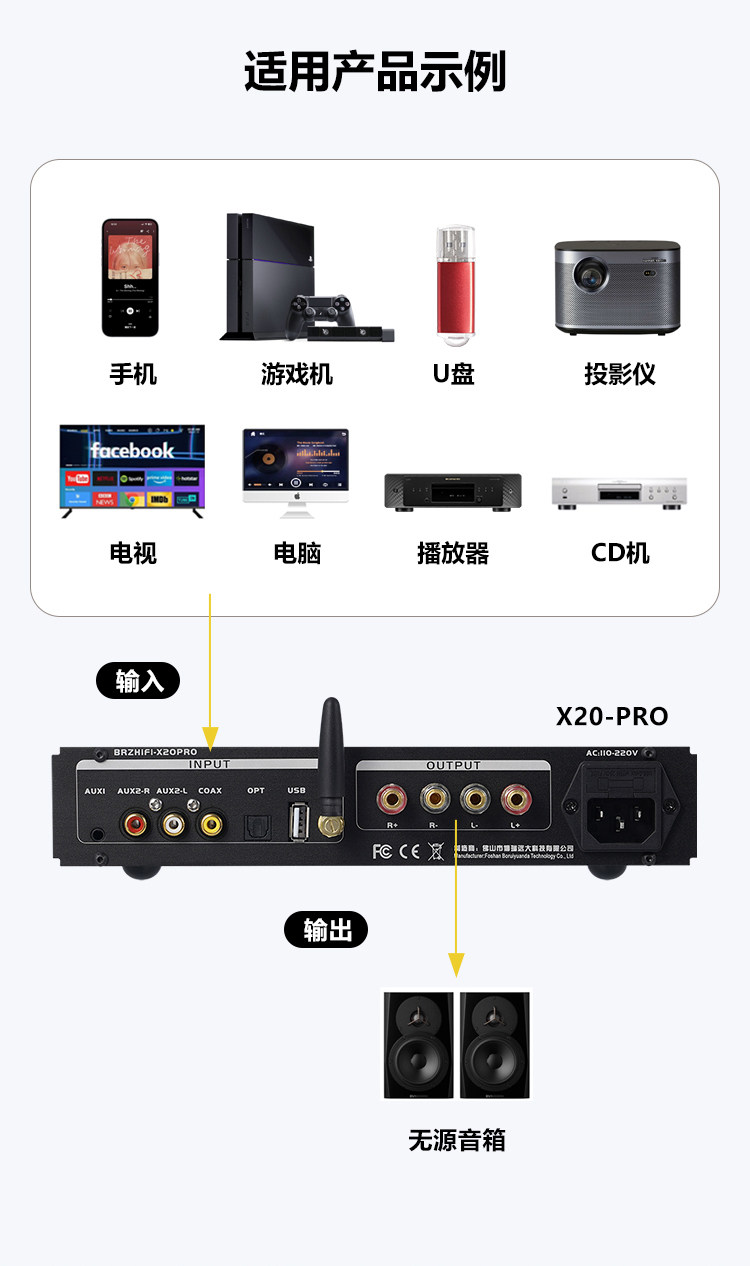

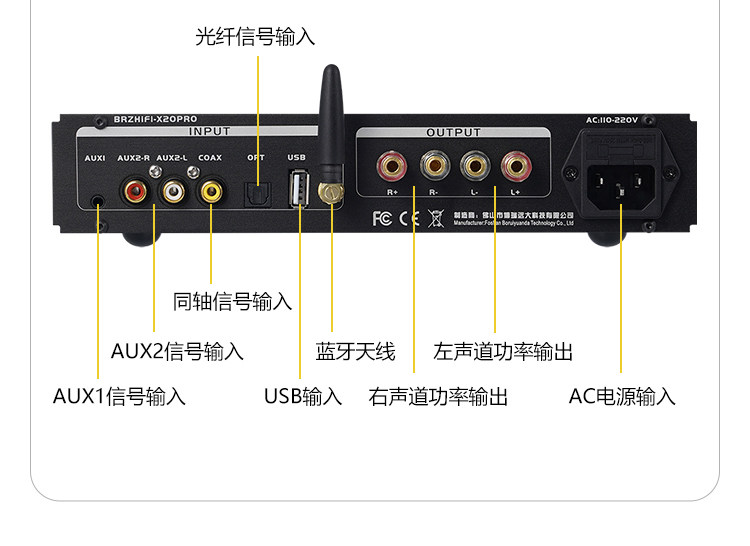

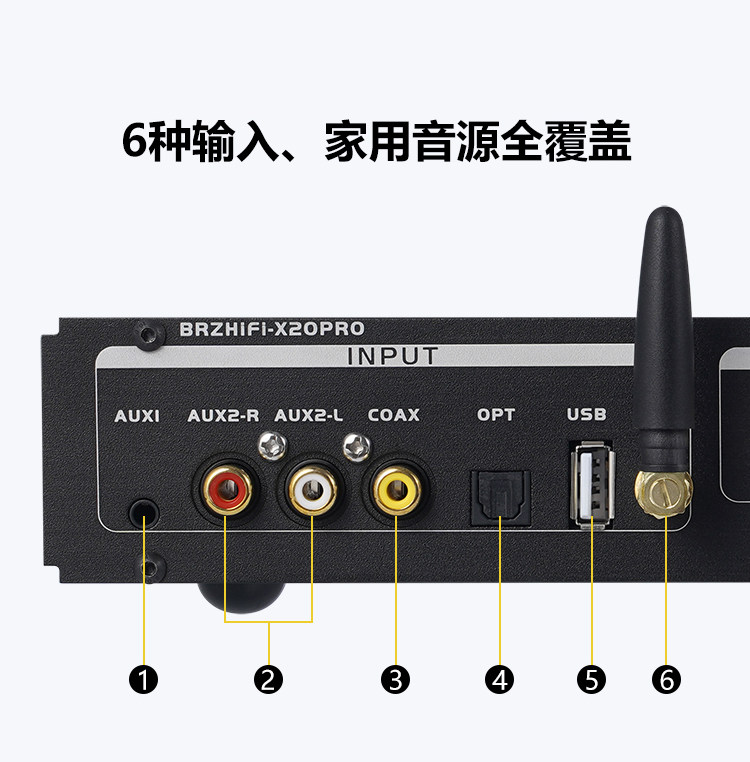

Input interface:AUX 1/AUX 2/Fiber Optic/Coaxial/Bluetooth/USB Disk
output power:300W × 2 @ 4 Ω, 150W × 2 @ 8 Ω
Input sensitivity:0.5V
Output impedance:2-8Ω

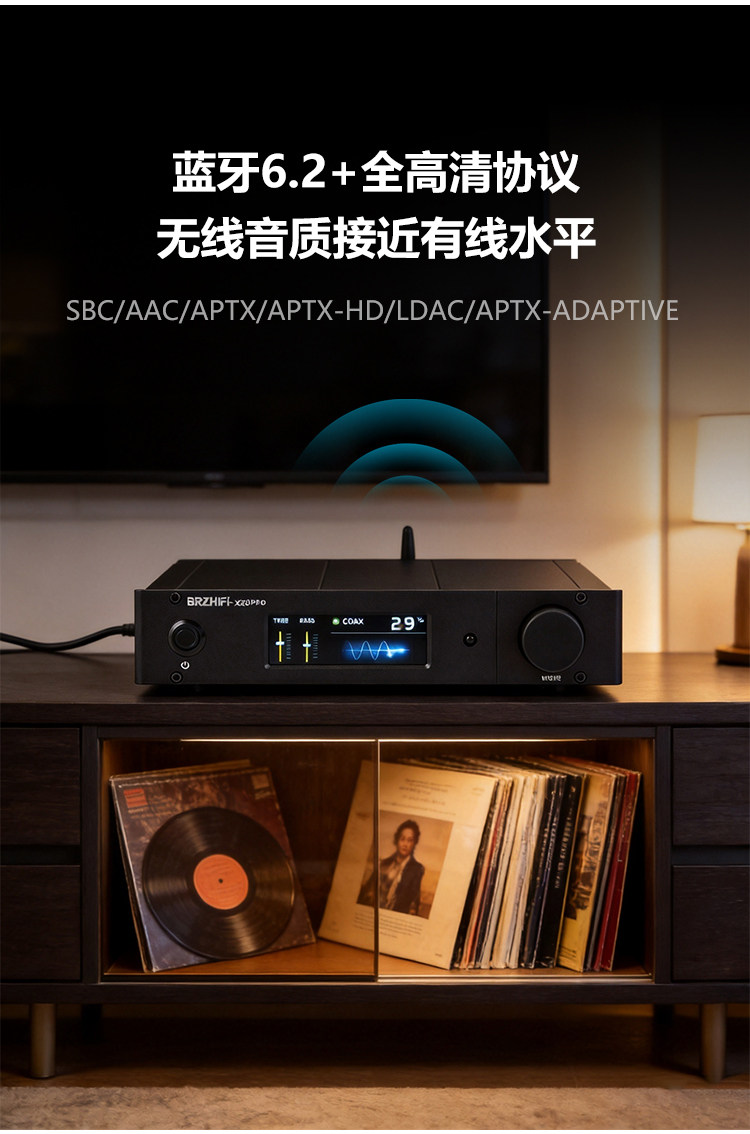

Bluetooth Protocol:SBC/AAC/APTX/APTX-HD/LDAC/APTX-ADAPTIVE
Bluetooth version:6.2
Bluetooth sampling rate:16-24Bit 44.1-96kHz
High/low frequency adjustment range:±10dB
Signal-to-noise ratio:≥-100dB
Total Harmonic Distortion:0.03%
Frequency response range:10Hz-20kHz
USB drive playback:Supports up to 128GB, MP3/WAV/APE/FLAC
USB sampling rate:16Bit 44.1~48kHz
Working Voltage:AC100-220V50/60Hz
Dimensions:242*50*207mm
Weight:2kg
