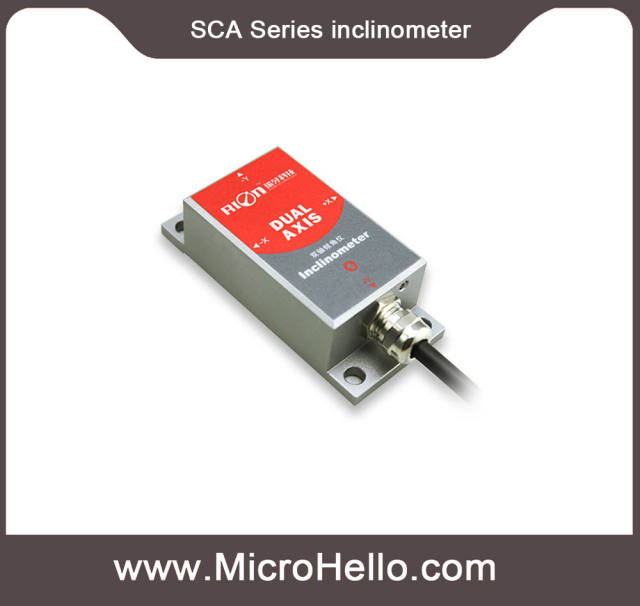

SCA120T Dual-axis 0~5V voltage output inclinometer ±1~±90° optional
●Dual-Axis Inclinometer
●Wide voltage input: 9~36V
●Output interface :0~5V
●Wide temperature working: -40~+85℃
●Resolution: 0.01°
●Small Volume : 90×40×26mm(customized)
General Description
SCA120T is a dual axis inclinometer with analog voltage output,can simultaneously output the inclination of the two direction axes, the user simply collecting the inclinometer voltage value then can calculate the inclination of the current object。Built-in (MEMS) micro solid pendulum ,by measuring the static gravity field changes, changes in mode output voltage (0-5V). Mainly used to measure the inclination of the object with respect to the horizontal plane.
This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS inclinometer productive technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!
Technical Data
Parameters |
Conditions |
SCA120T-10 |
SCA120T-30 |
SCA120T-60 |
SCA120T-90 |
UNIT |
Measuring range | ±10 | ±30 | ±60 | ±90 | ° | |
Measuring axis | X-Y | X-Y | X-Y | X-Y | ||
Zero output | 0° output | 2.5 | 2.5 | 2.5 | 2.5 | V |
Resolution | 0.01 | 0.01 | 0.01 | 0.01 | ° | |
Absolute accuracy | 0.02 | 0.05 | 0.08 | 0.1 | ° | |
Long termstability | 0.05 | 0.05 | 0.05 | 0.05 | ||
Zerotemp. coefficient | -40~85° | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/℃ |
Sensitivity temp. coefficient | -40~85° | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
Response time | 0.05 | 0.05 | 0.05 | 0.05 | s | |
Response frequence | 1~20 | 1~20 | 1~20 | 1~20 | Hz | |
Electromagnetic compatibility | According to EN61000 and GBT17626 | |||||
MTBF | ≥50000hours/times | |||||
Insulation Resistance | ≥100M | |||||
Shockproof | 100g@11ms、3Times/Axis(half sinusoid)) | |||||
Anti-vibration | 10grms、10~1000Hz | |||||
Protection glass | IP67 | |||||
Cables | Standard 1M length、wearproof、grease proofing、wide temperature、Shielded cables4*0.4mm2 | |||||
Weight | 110g(without cable) |
Dimension
Electrical Characteristics
Parameters |
Conditions |
Min |
Standard |
Max |
Units |
Power supply | Standard | 9 | 12、24 | 36 | V |
Optional | 5 | V | |||
Working current | 30 | mA | |||
Output overload | Resistive | 10 |
kΩ |
||
Capacitive | 20 | nF | |||
Working temperature | -40 | 85 | ℃ | ||
Store temperature | -55 | 100 | ℃ |
Electrical Connection
Line color function | BLACK | WHITE | GREEN | RED |
GNDPower Negative | OutX-output volatge | OutY-output volatge | DC9~36V |
